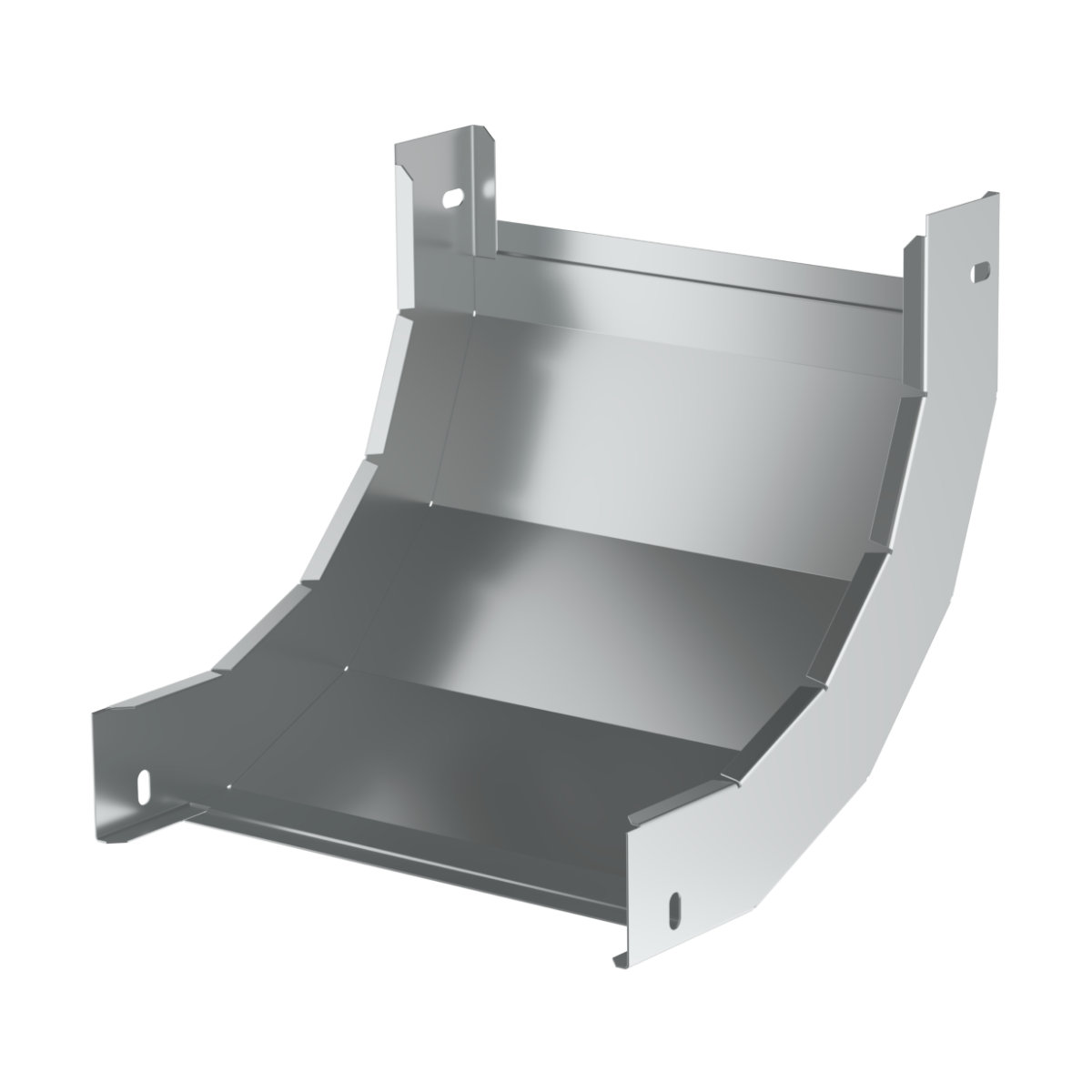

illustrative picture
To download 3D models, please login or create an account and request access.
NIXSO_EN
| EAN code | 8595057672260 |
| Customs code | 73089059 |
| Weight | 0,8200 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 4 |
| Dimension A | 253 mm |
| Dimension B | 240 mm |
| Dimension H | 52 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
