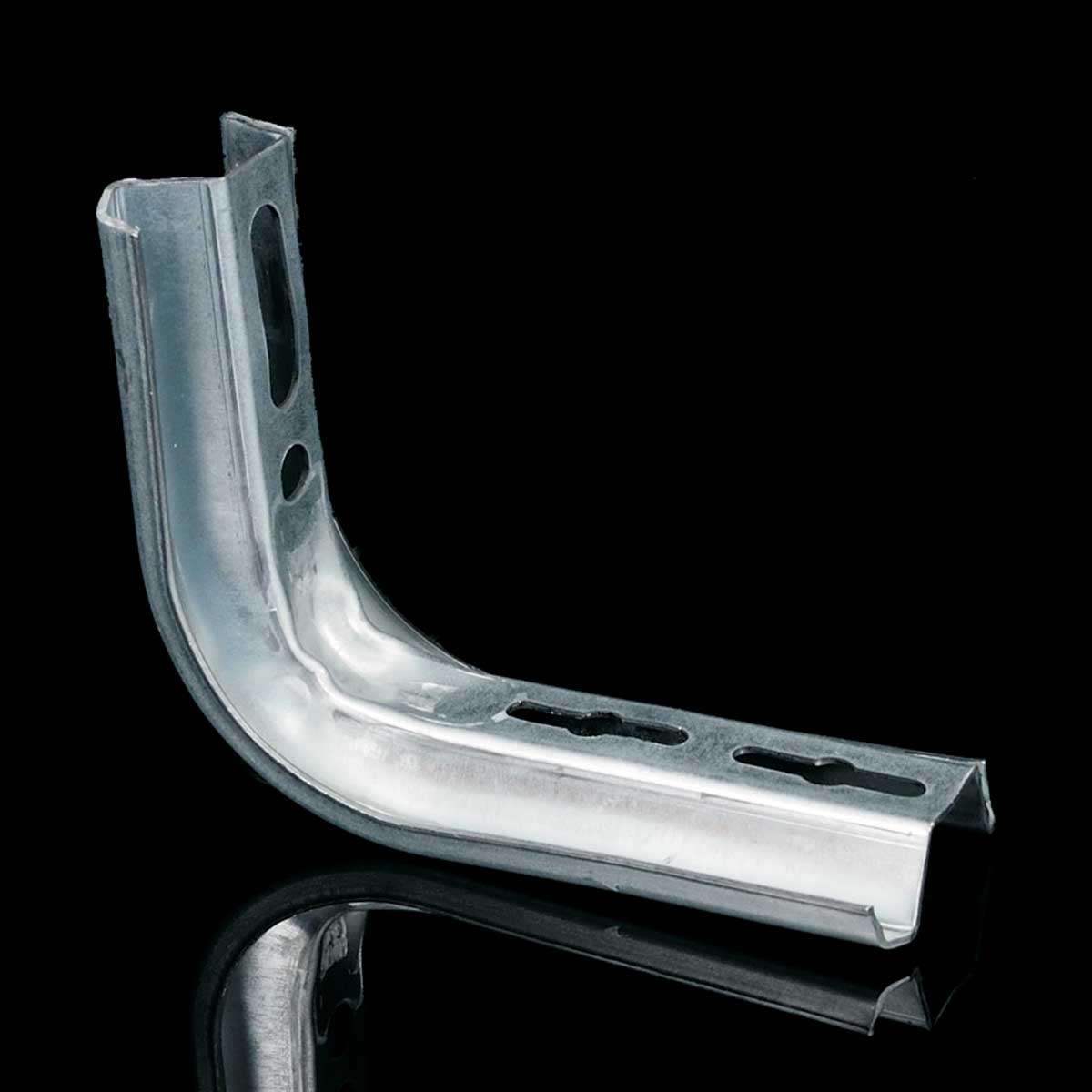

illustrative picture
To download 3D models, please login or create an account and request access.
LTS_EN
| EAN code | 8595057634091 |
| Customs code | 83024190 |
| Weight | 0,5400 kg/pcs |
| Surface finish | Pre-Galvanized |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Maximum load | 50 kg |

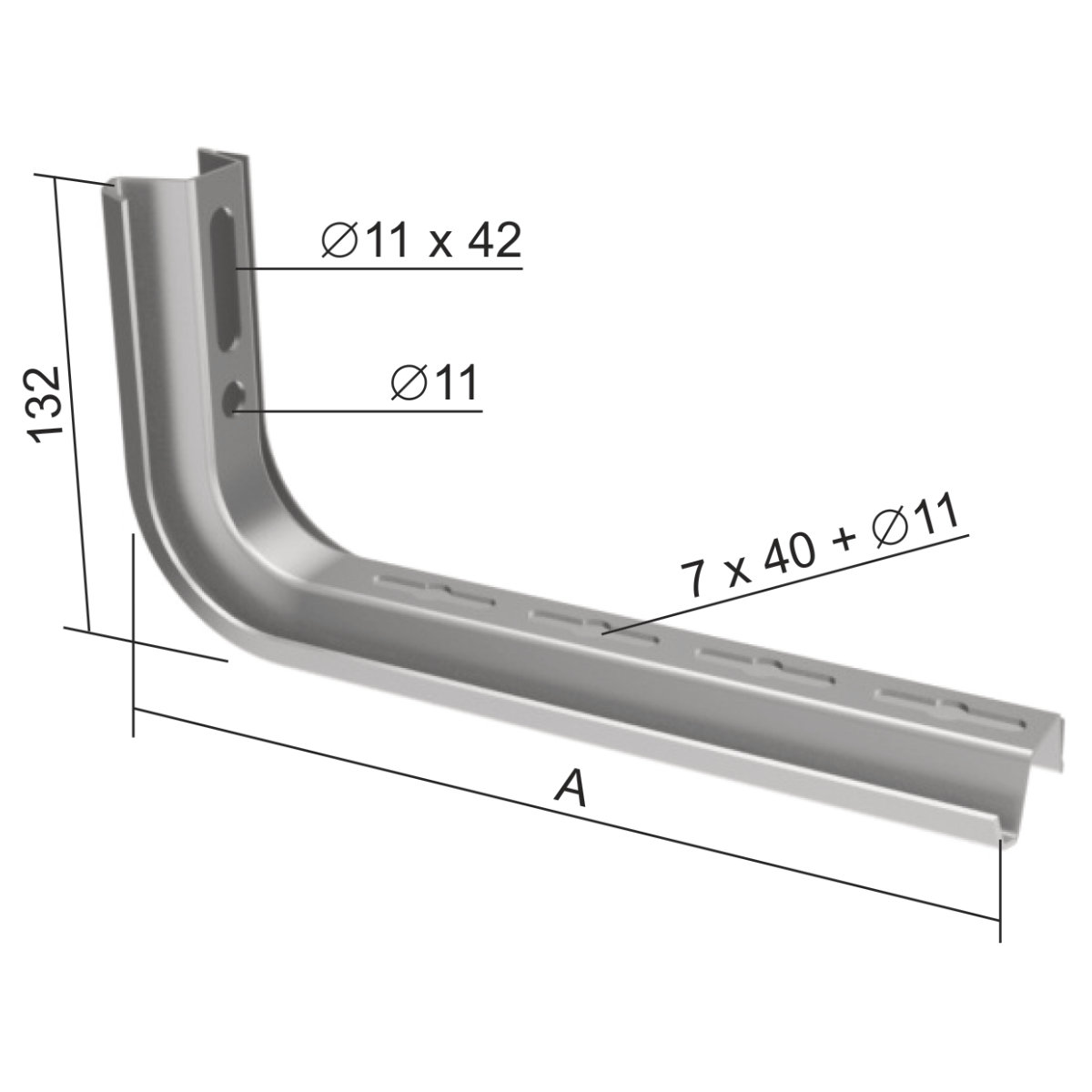

| Dimension A | 463 mm |
| For width of cable tray | 400 mm |
| Max. load for fire resistance | 10 kg |

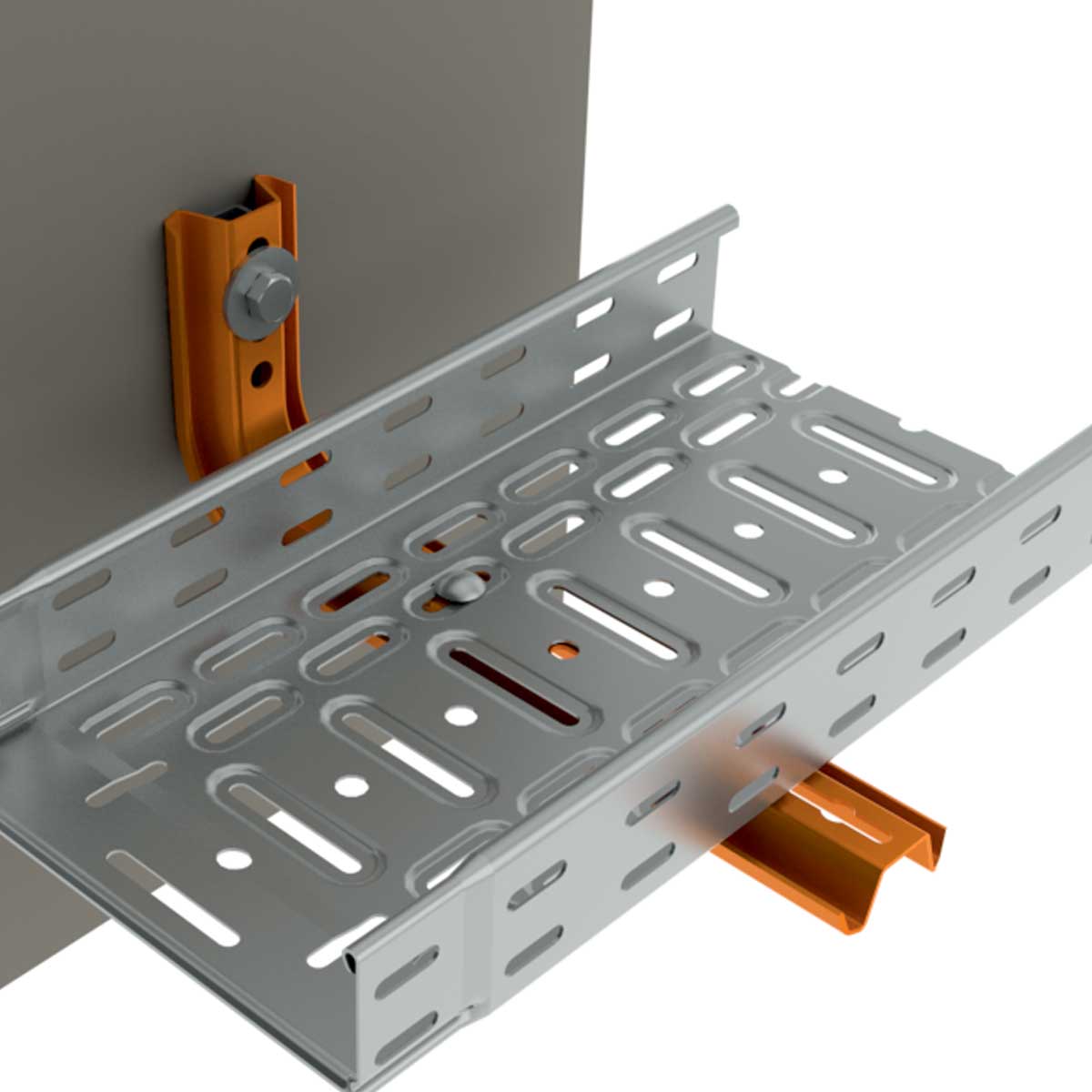

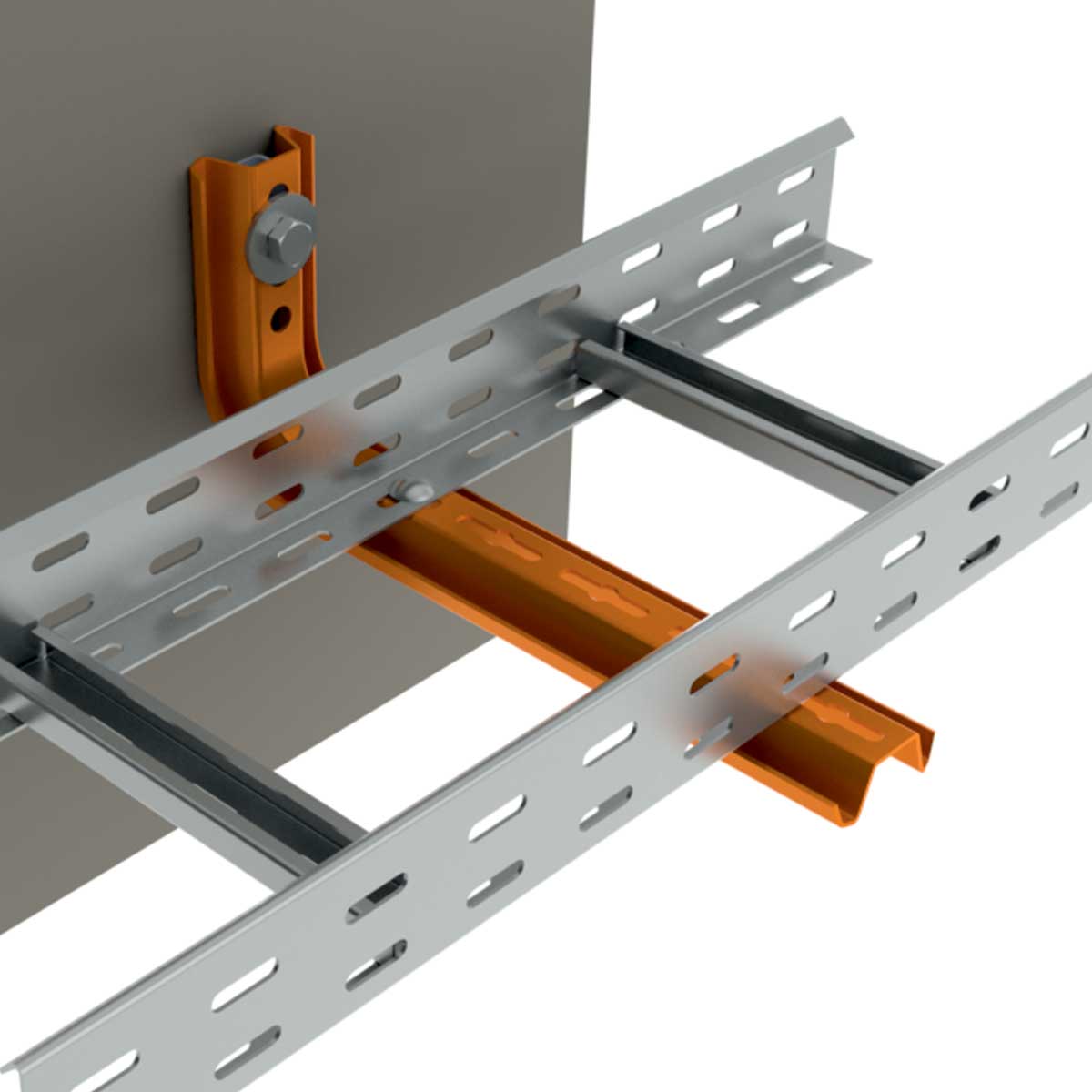

Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
Note for system with maintained functionality in fire:
To eliminate deformation during assembly the STS reinforcement
is designated.
You find more information in the catalogue Systems with maintained functionality in fire.
