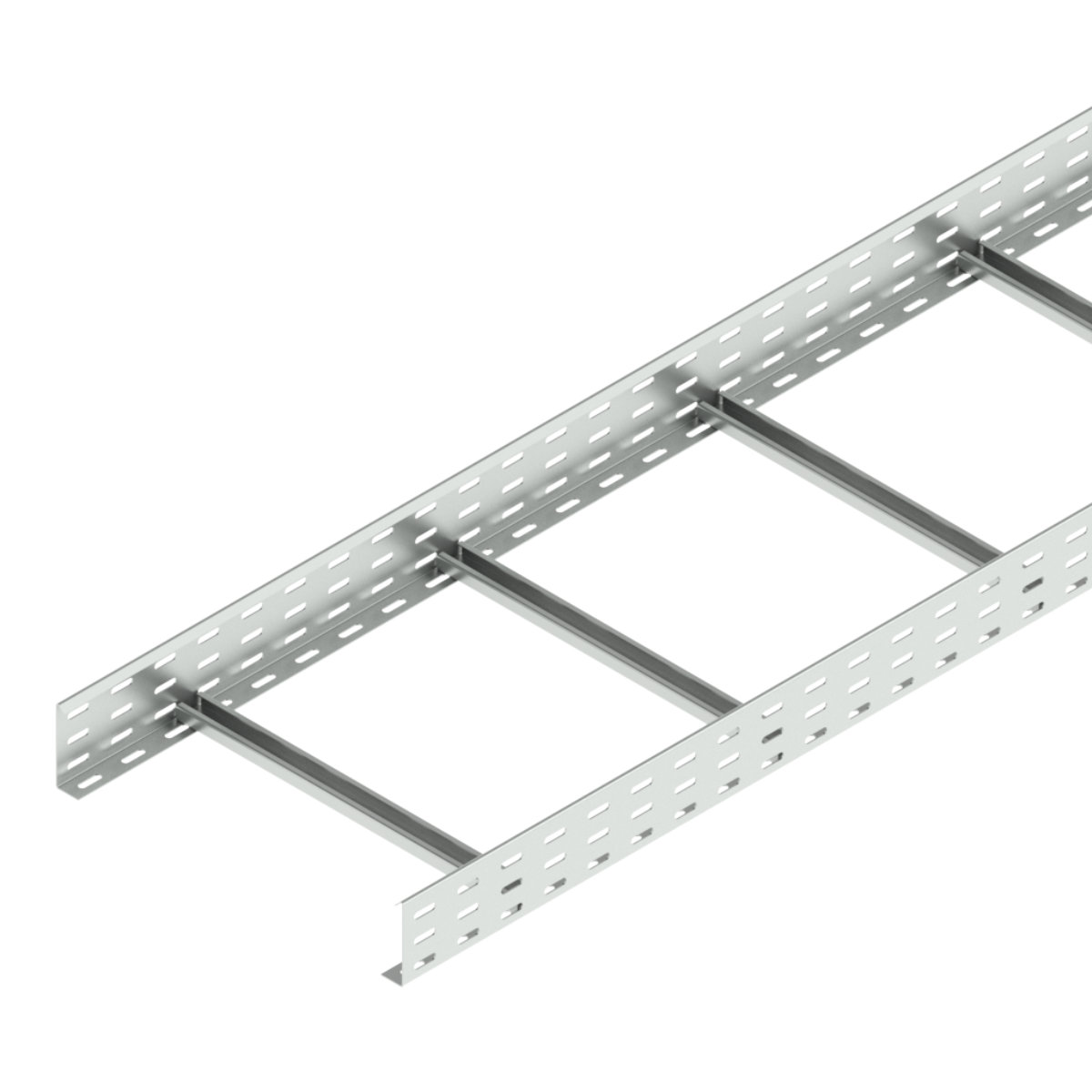

illustrative picture
To download 3D models, please login or create an account and request access.
KL85_EN
| EAN code | 8595057644199 |
| Customs code | 73089059 |
| Weight | 3,3000 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Width | 400 mm |
| Height | 85 mm |
| Length | 3000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 6 |
| Distance of partition | 300 mm |
The joining of the ladders is performed by using the couplings S 85X200 and min. 6 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
