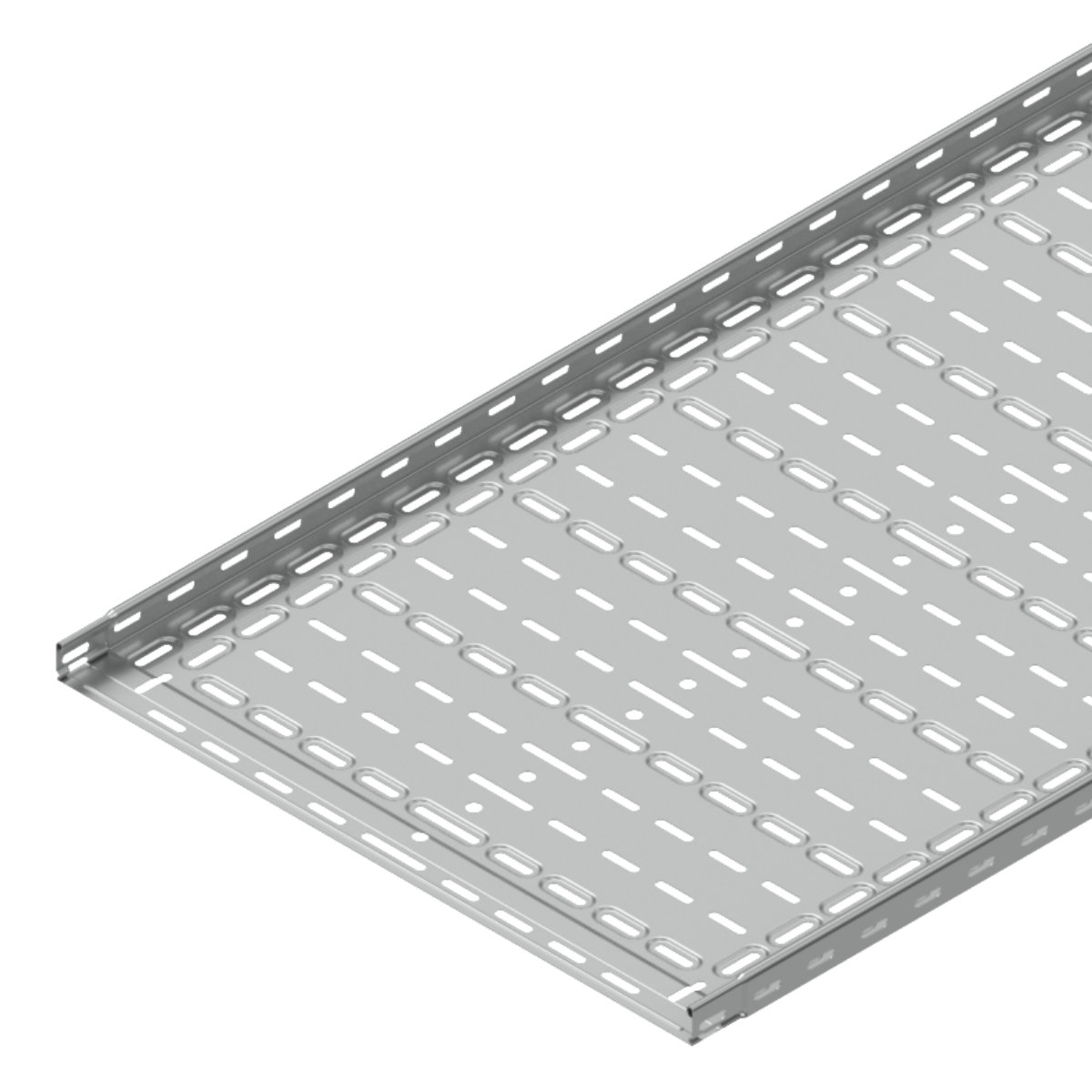

illustrative picture
To download 3D models, please login or create an account and request access.
KZI35_EN
| EAN code | 8595057692305 |
| Customs code | 73089059 |
| Weight | 4,6330 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Width | 600 mm |
| Height | 35 mm |
| Length | 3000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 4 |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
