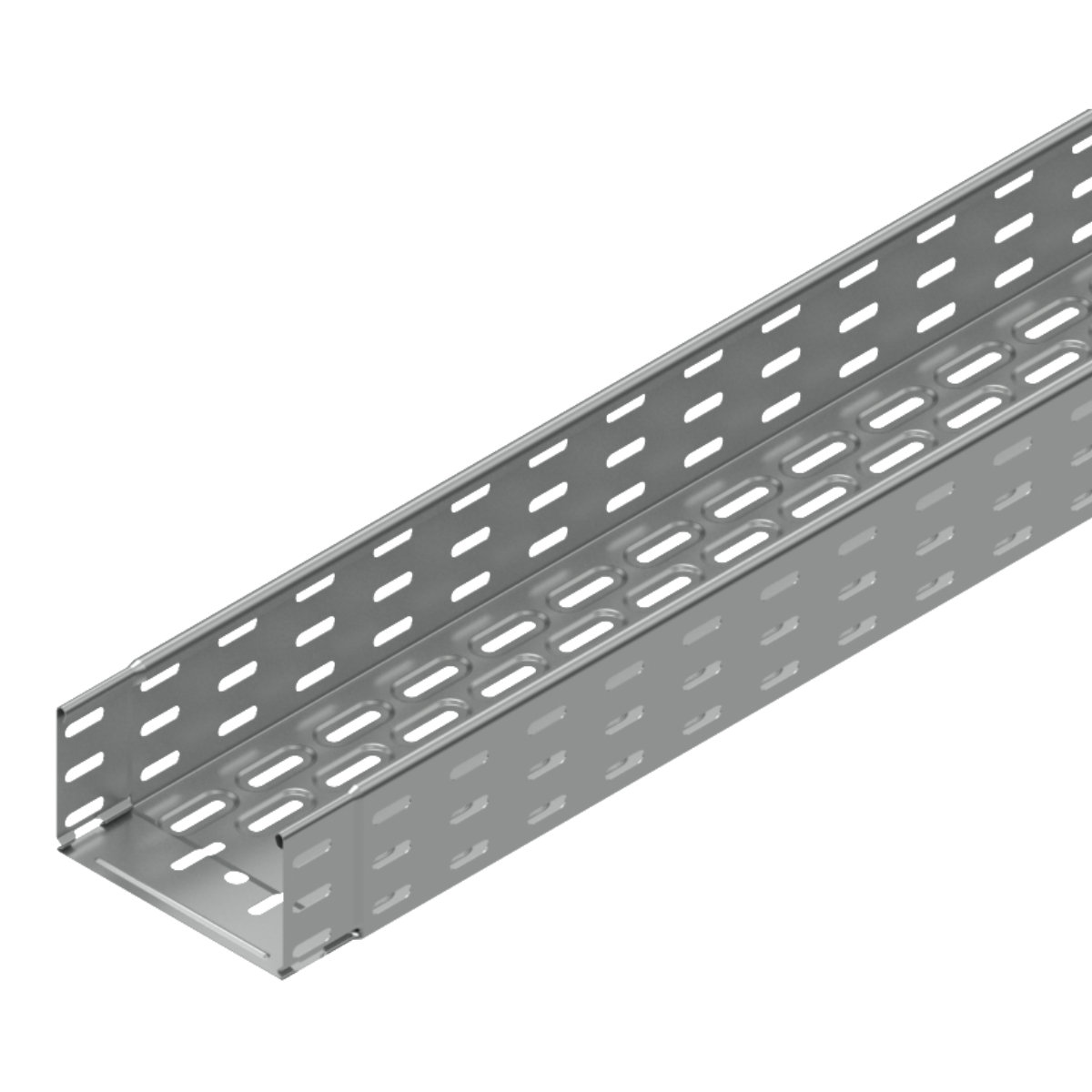

illustrative picture
To download 3D models, please login or create an account and request access.
KZI85_EN
| EAN code | 8595057692336 |
| Customs code | 73089059 |
| Weight | 2,2800 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Width | 150 mm |
| Height | 85 mm |
| Length | 3000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,75 mm |
| Quantity of screws for connecting | 6 |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
