KSK 175_DPO
Fullsize model
To download 3D models, please login or create an account and request access.
EAN code8595568924346
Customs code85381000
Weight0,6100 kg/pcs
Width177 mm
Height126 mm
Depth90 mm
Funcionality in fireP90-R, E90, PS90
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205

Note for system with maintained functionality in fire:

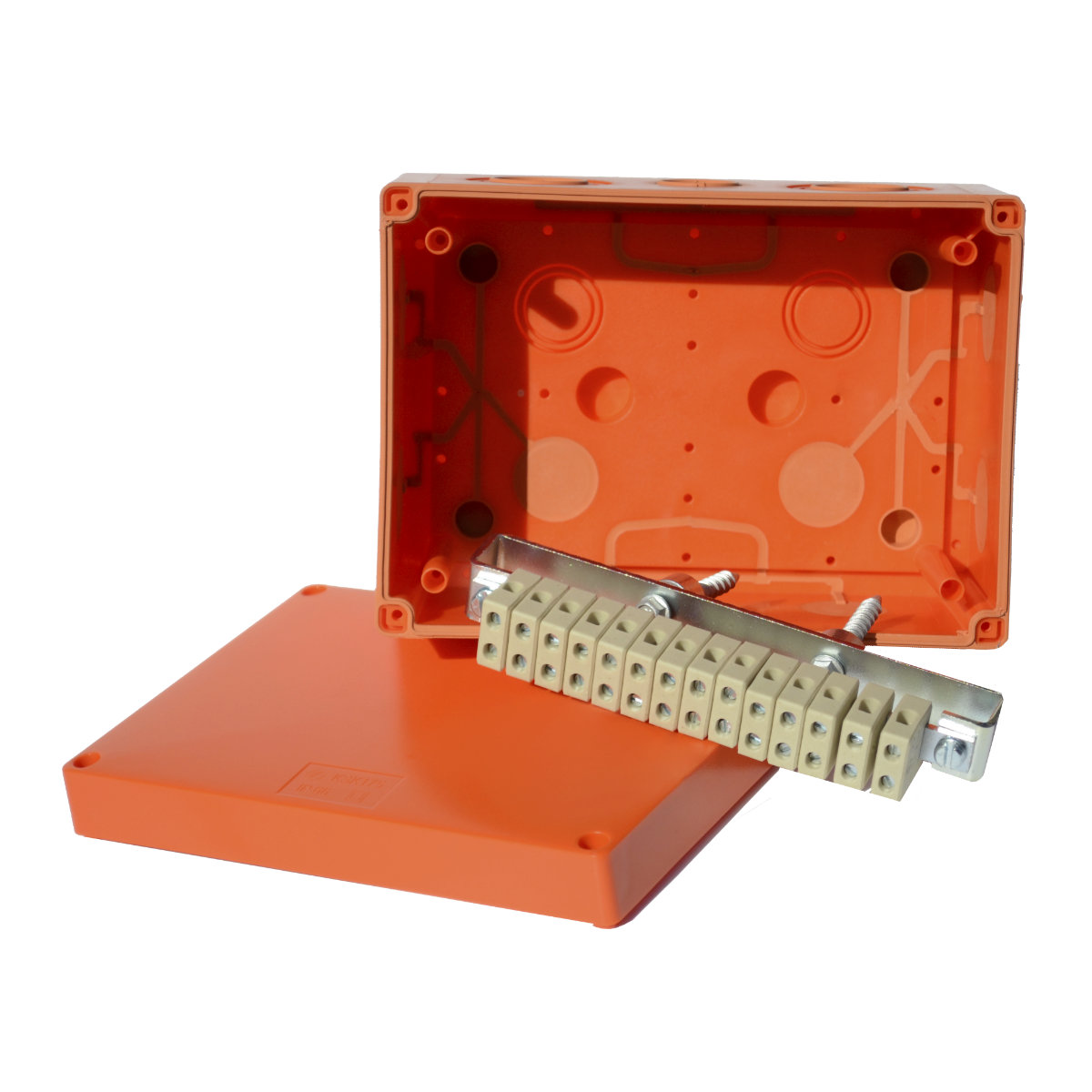

The box is equipped with a ceramic terminal block maintaining operability in fire. They are fixed using the attached bolts for concrete (included in the package). The boxes are designed for use only for communication cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
