KSK175_2PO10_EN
| EAN code | 8595568924353 |
| Customs code | 85381000 |
| Weight | 0,6325 kg/pcs |
| Width | 177 mm |
| Height | 126 mm |
| Depth | 90 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Note for system with maintained functionality in fire:

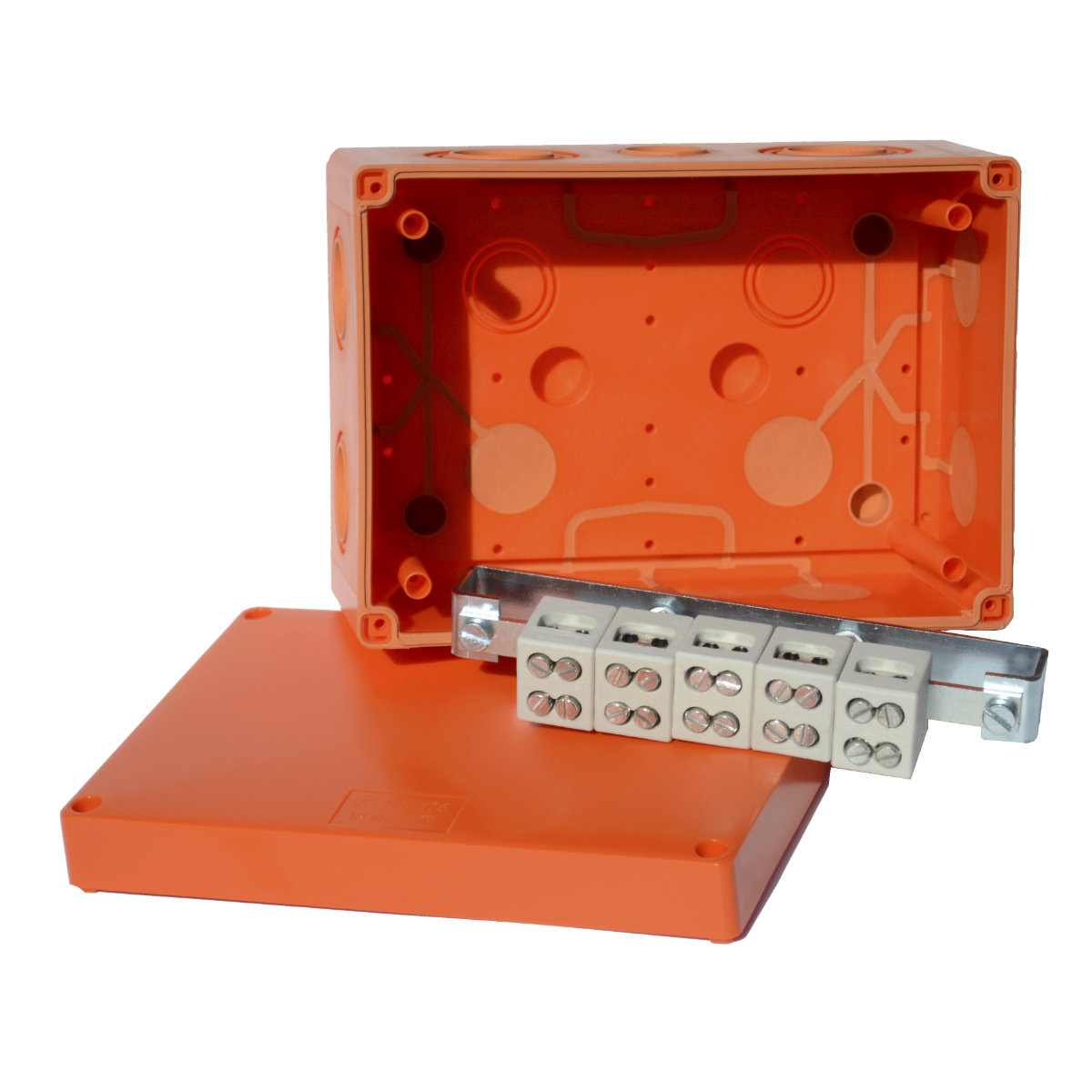

Boxes are fitted with 5 ceramic terminal blocks for installing up to 4 cable wires onto a one potential.
It is fastened using anchors for use in concrete (supplied).
The boxes are designed for use only for power cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain
soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
