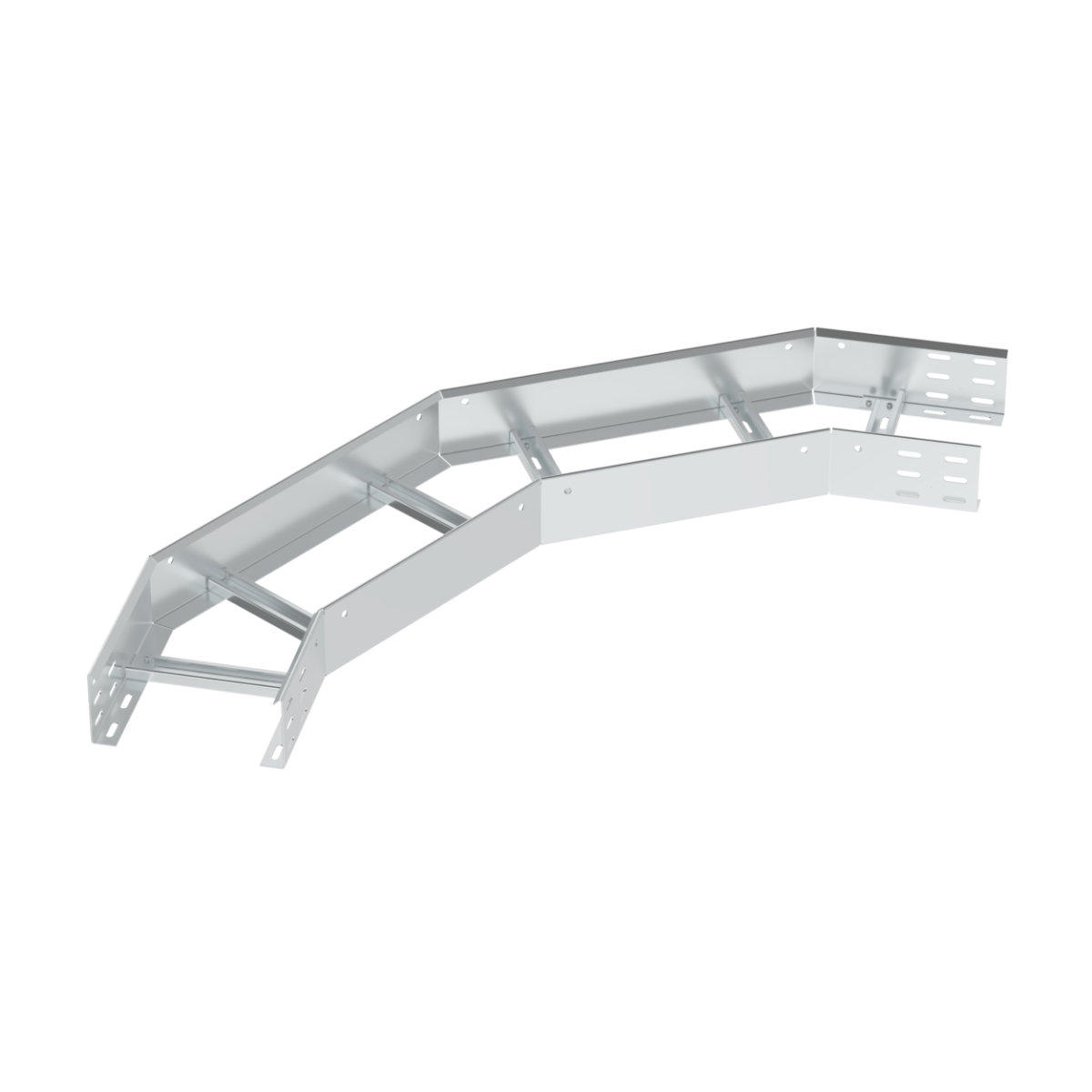

illustrative picture
To download 3D models, please login or create an account and request access.
KLOBH_EN
| EAN code | 8595057661325 |
| Customs code | 73089059 |
| Weight | 4,3250 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 24 |
| Dimension A | 200 mm |
| Dimension H | 85 mm |
The connection of the bend with the ladder is performed by using the 4 pcs couplings S 85X200 and 24 pcs the bolts NSM 6X10.
