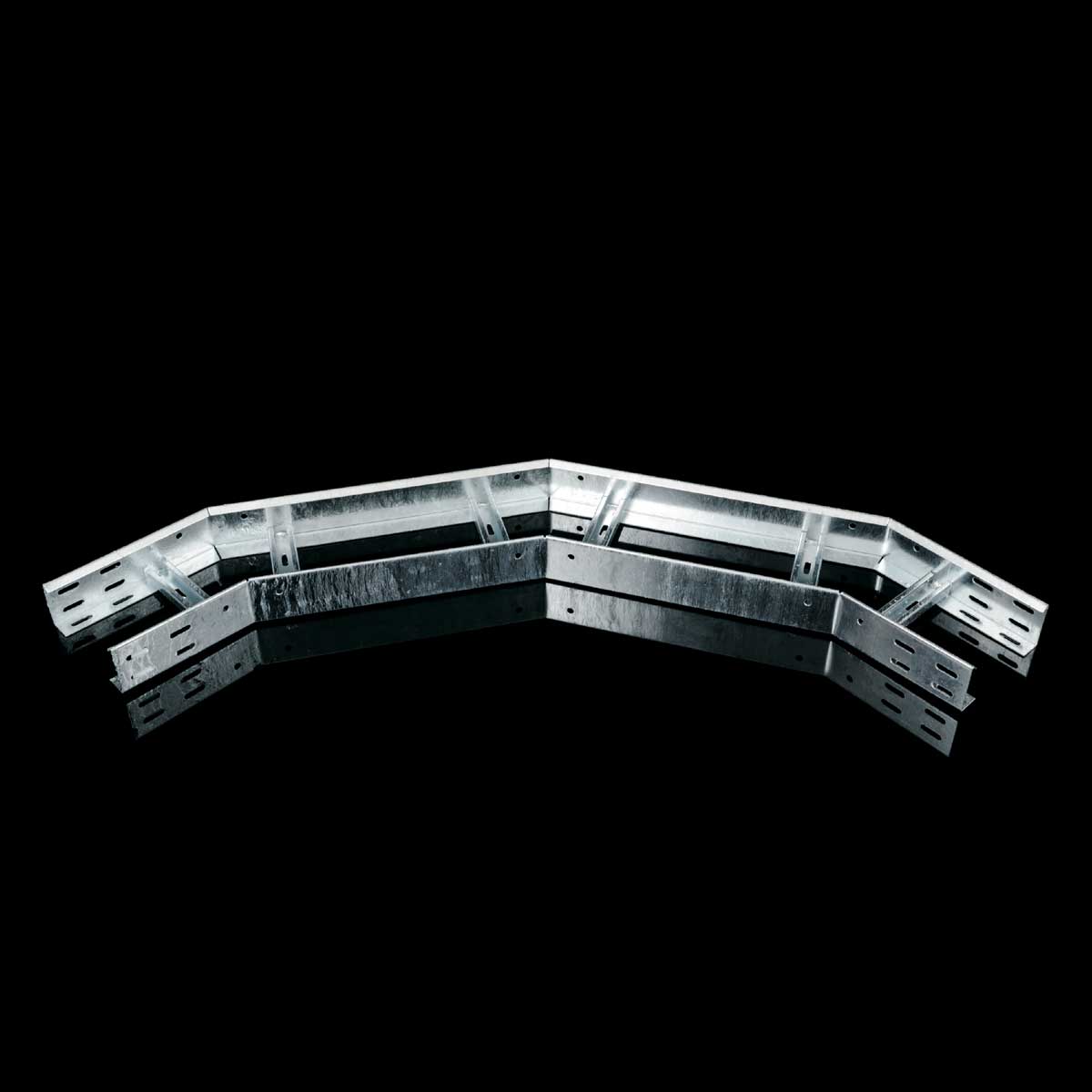

illustrative picture
Certificate ESČ
| EAN code | 8595568910028 |
| Customs code | 73089059 |
| Weight | 3,2110 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 16 |

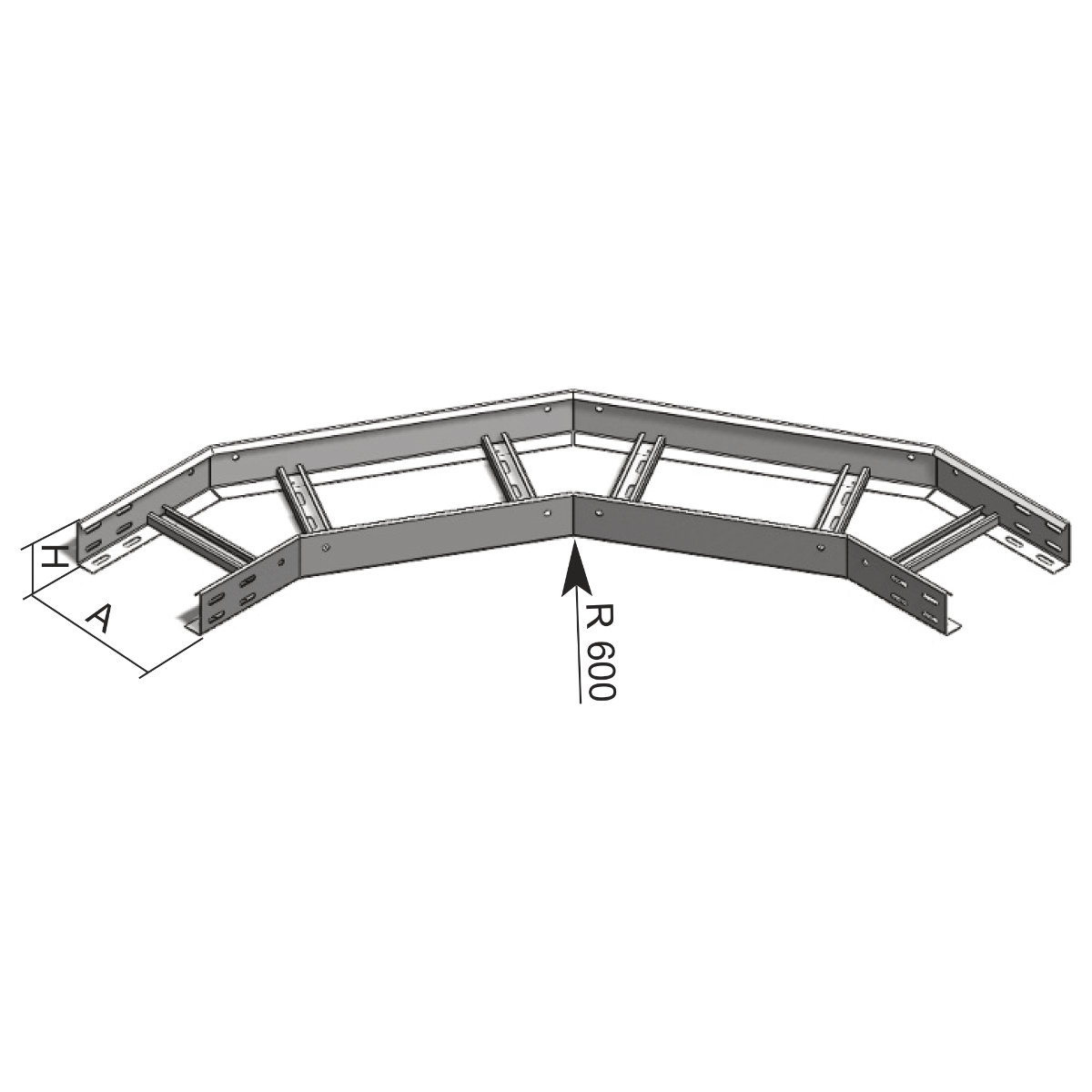

| Dimension A | 150 mm |
| Dimension H | 60 mm |
The connection of the bend with the ladder is performed by using the 4 pcs couplings S 60X200 and 16 pcs the bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
