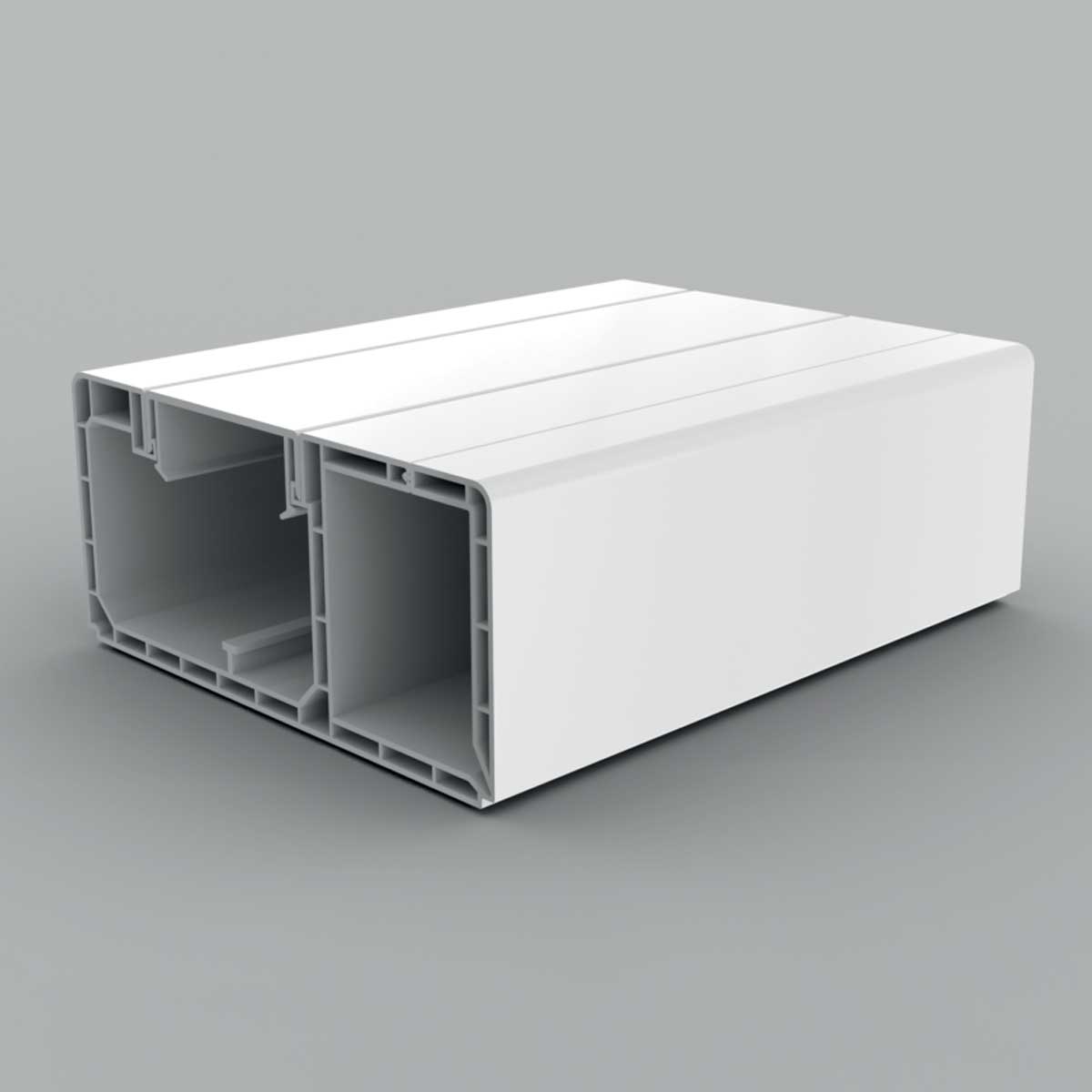

PK120X55D_EN
| EAN code | 8595057650572 |
| Customs code | 39259020 |
| Weight | 1,2480 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Mechanical protection | IK07 |
| Impact resistance | 1 J |
| Antibacterial | yes |

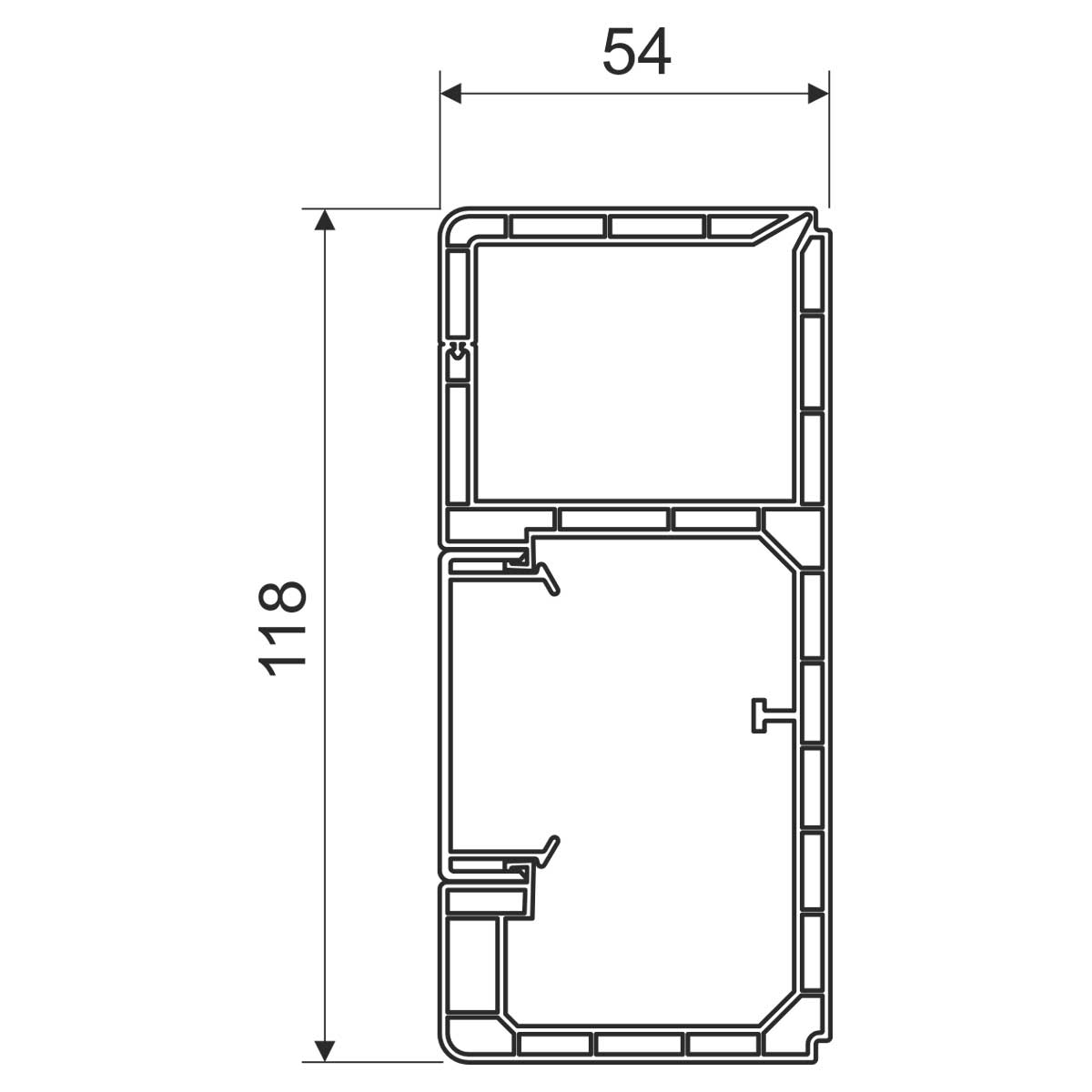

| Width | 118 mm |
| Height | 54 mm |
| Length | 2 m |
| Inside area | 1550, 2250 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Use they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Manufactures´s recommendations The producer recommends checking the depth of a particular device before installation. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 40 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |
| With protective foil | yes |
Designed for installation of modular devices 45x45 or 45x22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g. ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira with maximal instrument depth 42 mm. The tilting section allows inserting the shielding canal SK 40X20 or SK 40X33, which ensures shielding of data circuits. If shielding and therefore inserting shielding canals is required, parapet trunking must be installed with tilting section up. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument. Registered industrial design.
