LK80X28_2T_EN
| EAN code | 8595057617315 |
| Customs code | 39259080 |
| Weight | 0,0690 kg/pcs |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |

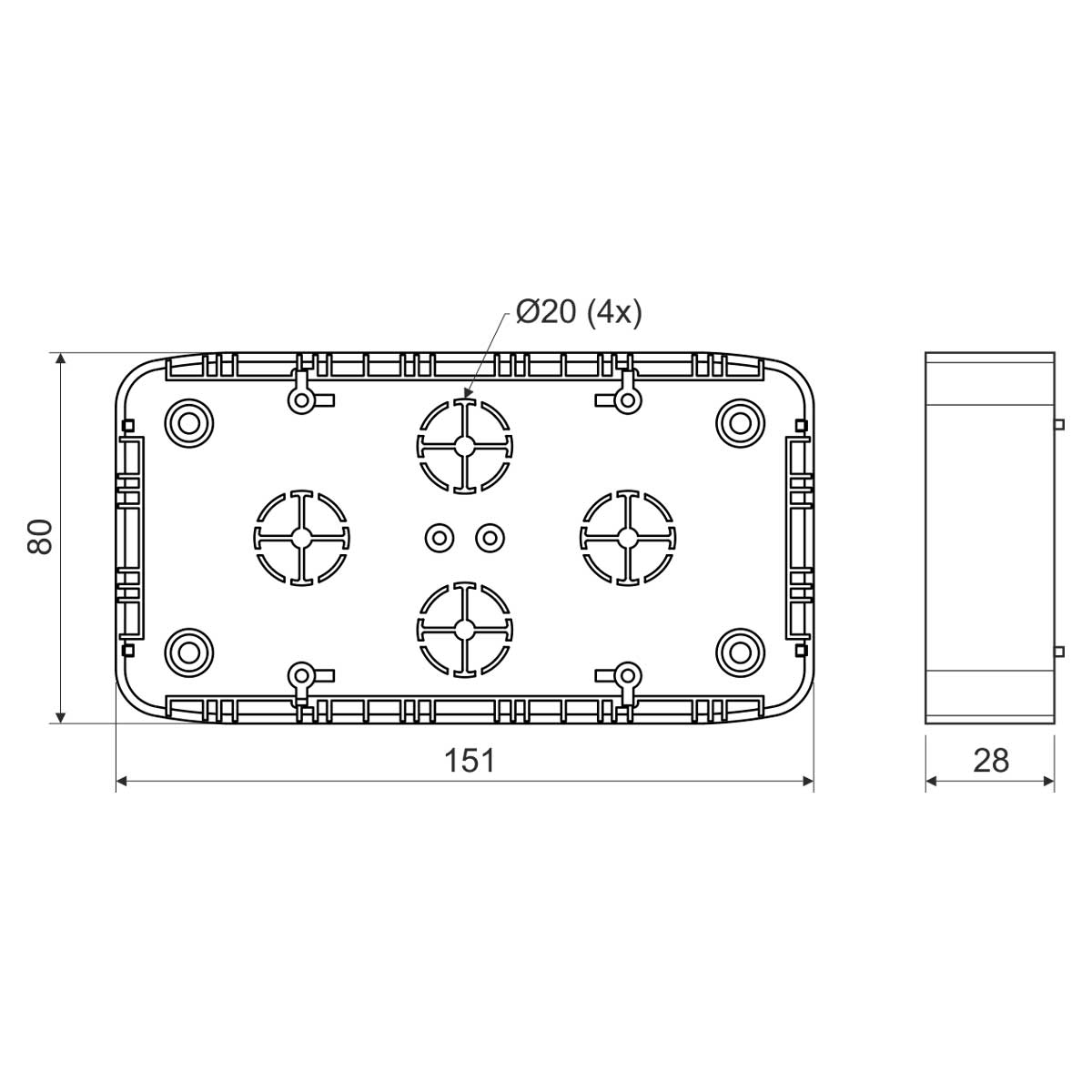

| Width | 151 mm |
| Height | 80 mm |
| Depth | 28 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Spacing when joining 2 boxes | 71 mm |
| Standards | ČSN EN 60 670-1 |
| Package description boxes packed in shrink foil of 10 pieces and included instrument screws for two devices | |
Intended for two devices of Tango - ABB series in and combined frame. For installation of two units horizontally. To install on materials with fire classes E or F, use insulating pad – to support, use 2 pads PI 80 2ZT and adjust to the desired size.
