LK80_1_EN
| EAN code | 8595057616387 |
| Customs code | 39259080 |
| Weight | 0,0300 kg/pcs |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |

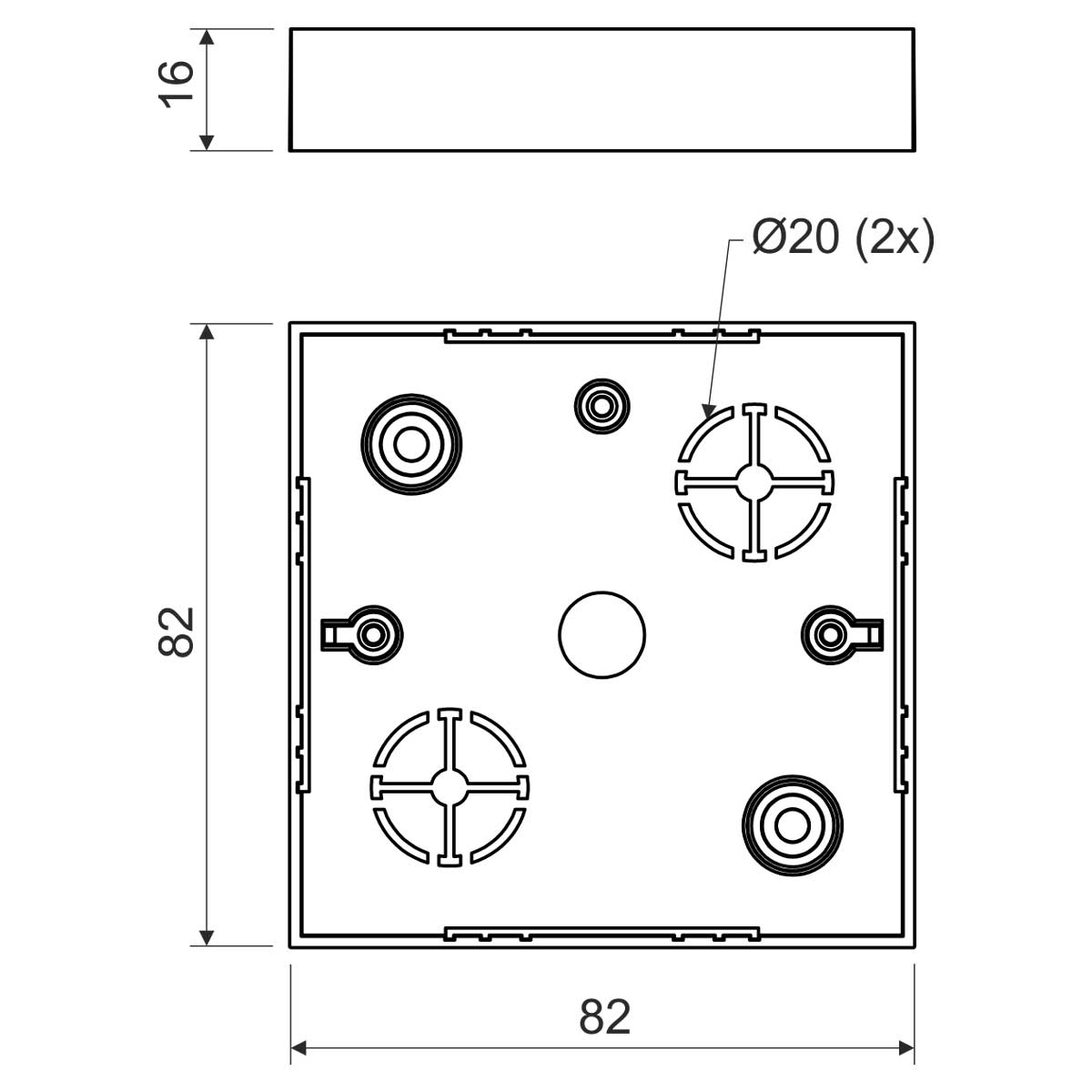

| Width | 82 mm |
| Height | 82 mm |
| Depth | 16 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standards | ČSN EN 60 670-1 |
| Package description the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Its shape is also suitable for older devices. To install on materials with fire classes E or F, use insulating pad.
