illustrative picture
KBS_PO_EN
| EAN code | 8595568931122 |
| Customs code | 73181499 |
| Weight | 0,0330 kg/pcs |
| Material | steel |
| Funcionality in fire | P90-R, E90, PS90 |
| Minimum hole depth | 45 mm |
| Min. thickness of base material | 80 mm |
| Hole diameter | 6 mm |
| Spanner size | 13 |
| Torque-moment | <= 10 Nm |
| Screwing depth | 35 mm |
| The height of the fixing nut | 26,5 mm |

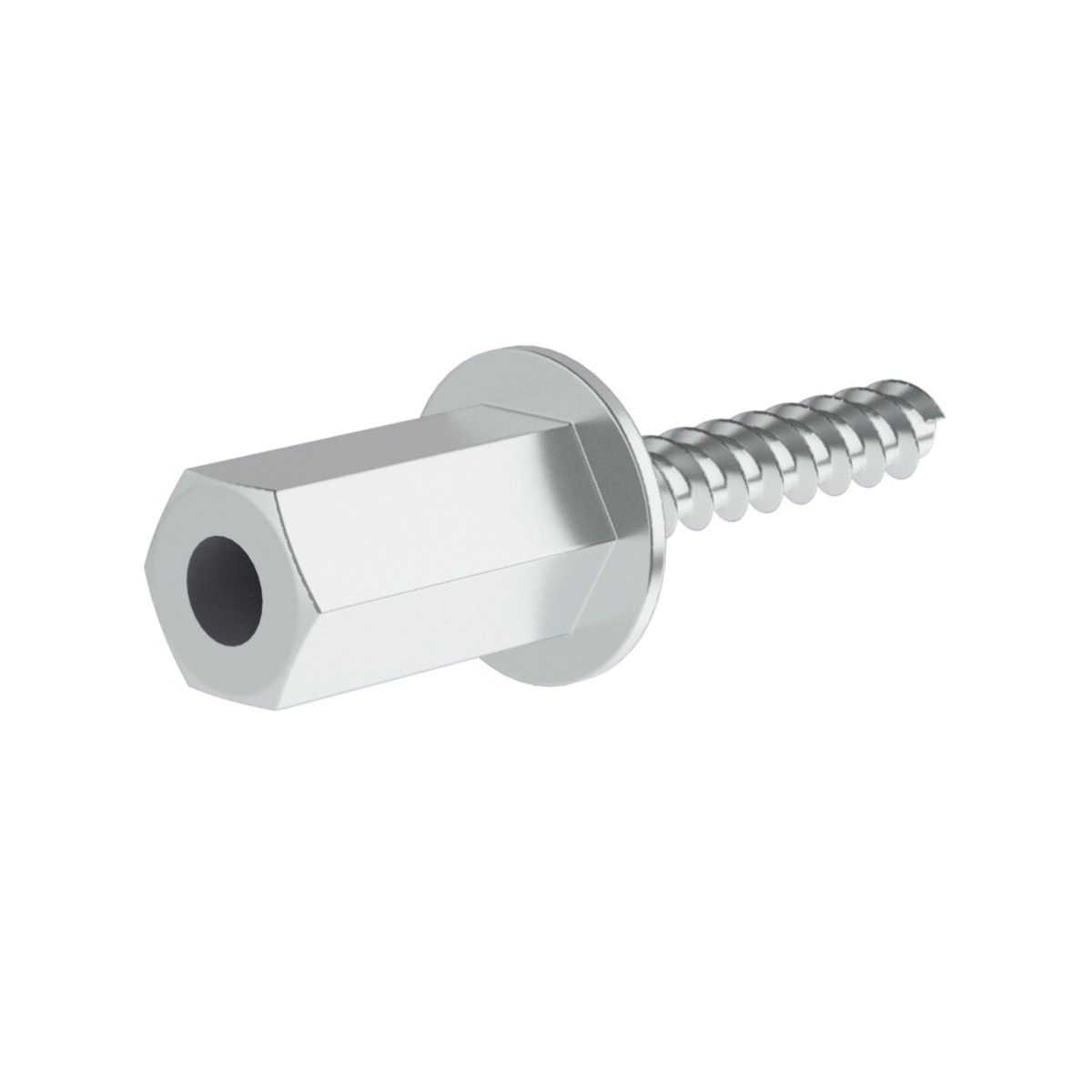

M8 / M10 combined screw for quick and easy mounting of screws or threaded rods. Designed for installation in cracked concrete C20 / 25 to C50 / 60, prestressed cavity panels C30 / 37 to C50 / 60, into natural stone with a dense structure.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
