illustrative picture
To download 3D models, please login or create an account and request access.
VU_EN
| EAN code | 8595057629448 |
| Customs code | 73269098 |
| Weight | 0,0041 kg/pcs |
| Surface finish | Non electrolytic plating Geomet |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

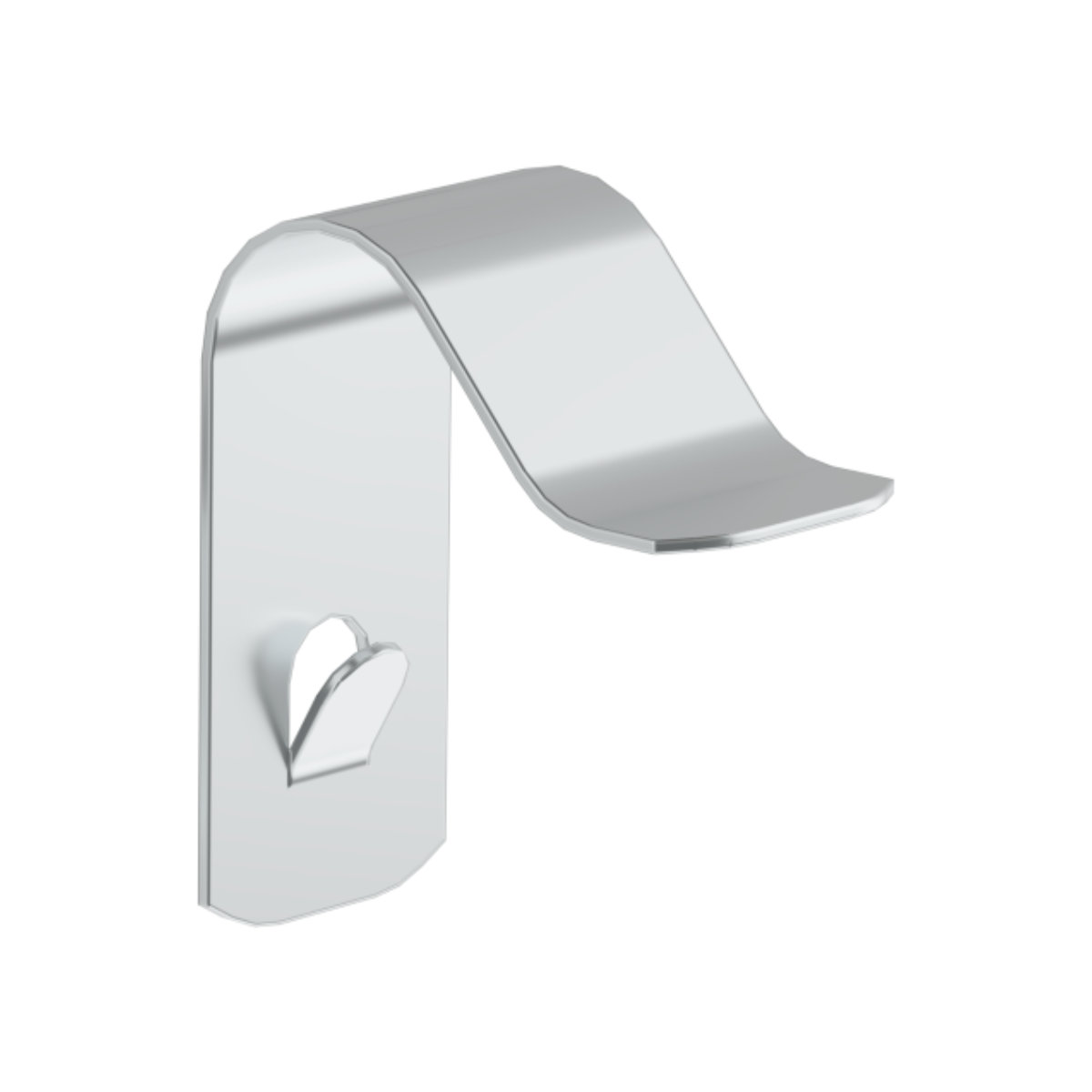

Is used for a bolt free attachment of the cover to the tray and to the accessories. The cover fixture is placed to the cover and the sidewall in the place of the opening and it is slightly pressed so that the fixture lock slides into the opening. Used for perforated and non-perforated trays; non-perforated trays have holes specially designed for these anchors.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
