Rising elbow 90°

SO 90X110X150_S

2D
3D

Attachments and certifications

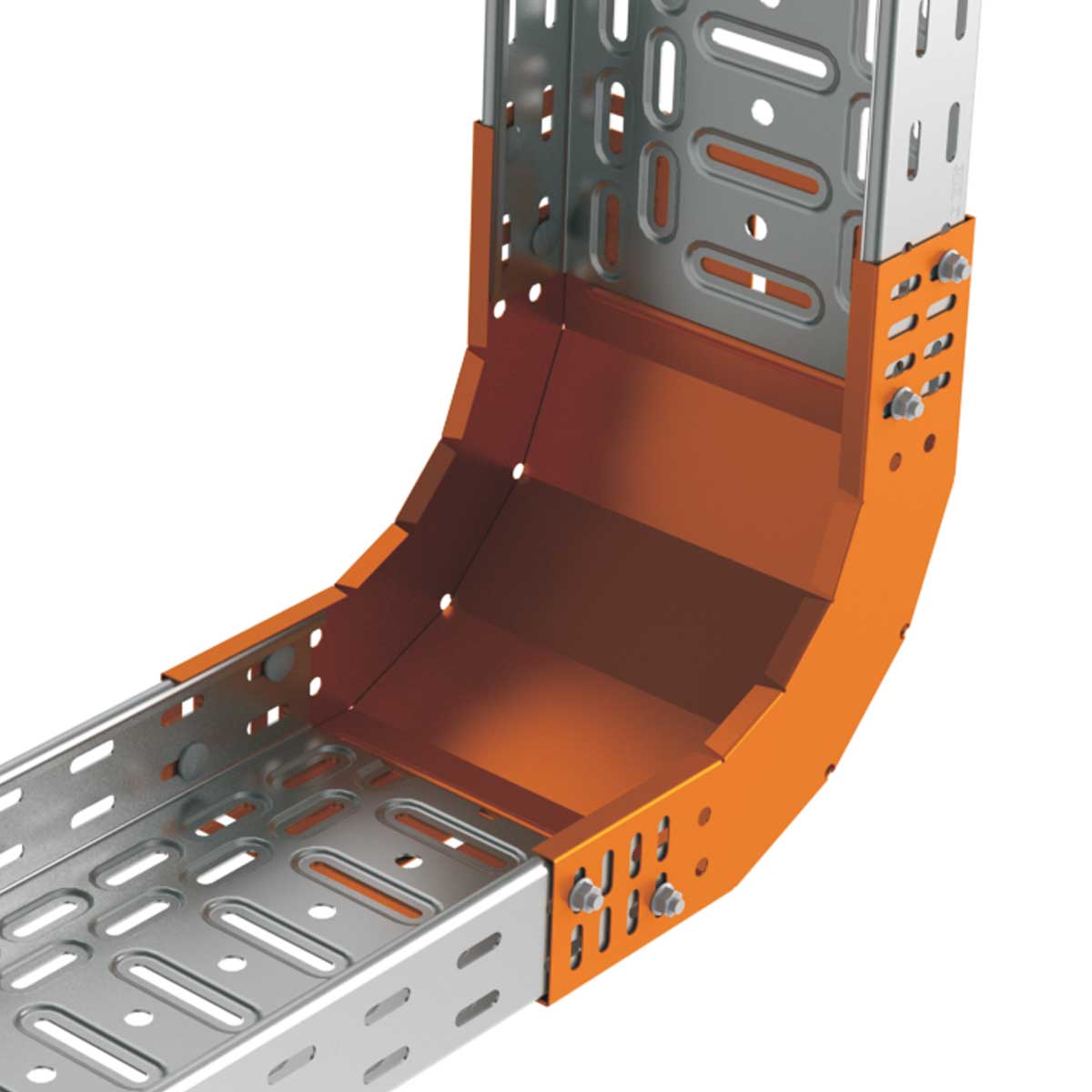

illustrative picture

SO 90X110X150_S

SO 90X110X150_S

SO 90X110X150_S

To download 3D models, please login or create an account and request access.

Data sheet
SO_EN

Certificate
Conformity declaration
Declaration RoHS
Declaration REACH
Certificate ESČ

EAN code	8595057633827
Customs code	73089059
Weight	1,1250 kg/pcs
Surface finish	Pre-Galvanized
Temperature resistance	-50 - 150 °C
Standards	ČSN EN 61537
Thickness of metal sheet	0,8 mm
Quantity of screws for connecting	16

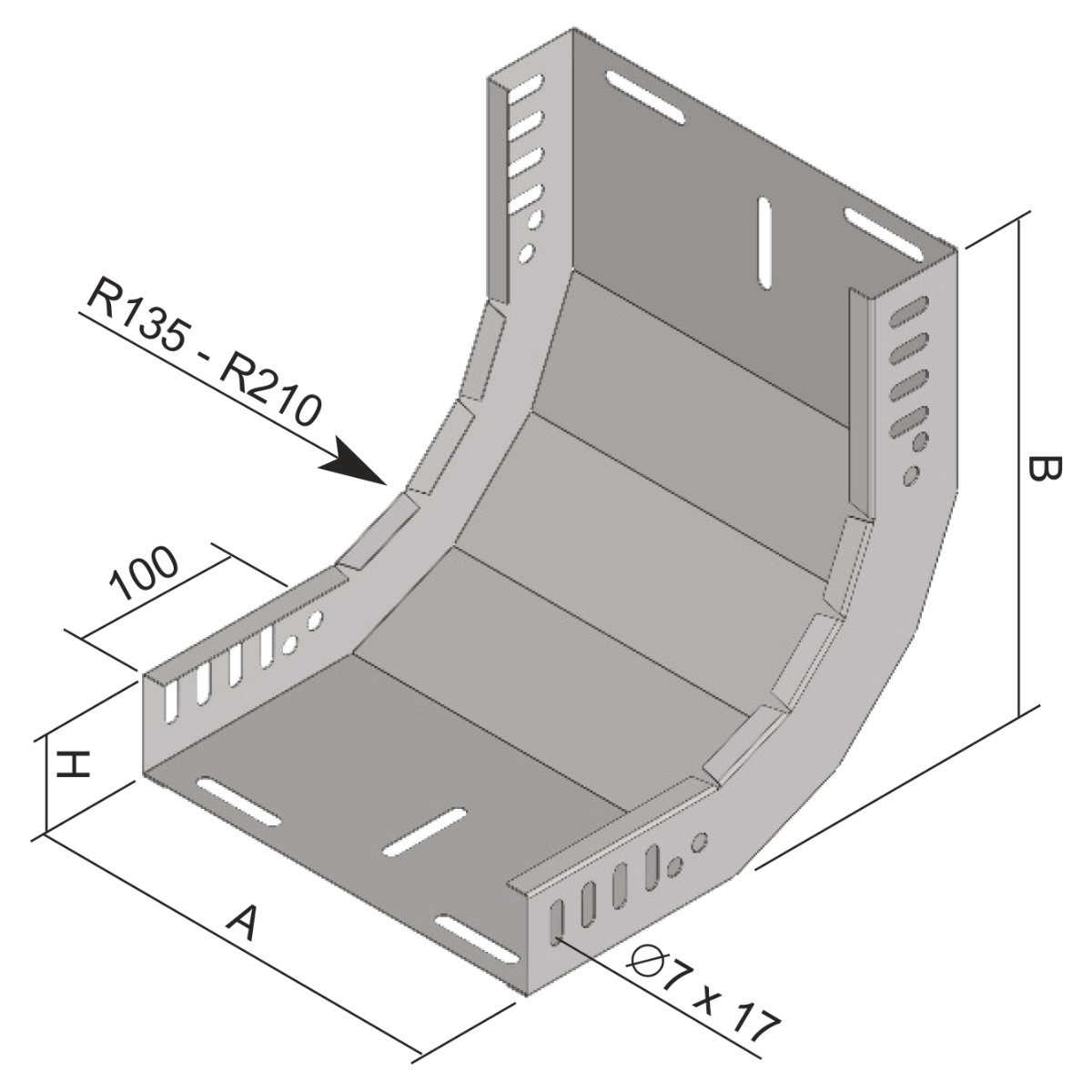

Dimension A	153 mm
Dimension B	295 mm
Dimension H	115 mm
For width of cable tray	150 mm
For height of cable tray	110 mm

To fix the connection use the bolt NSM 6X10
