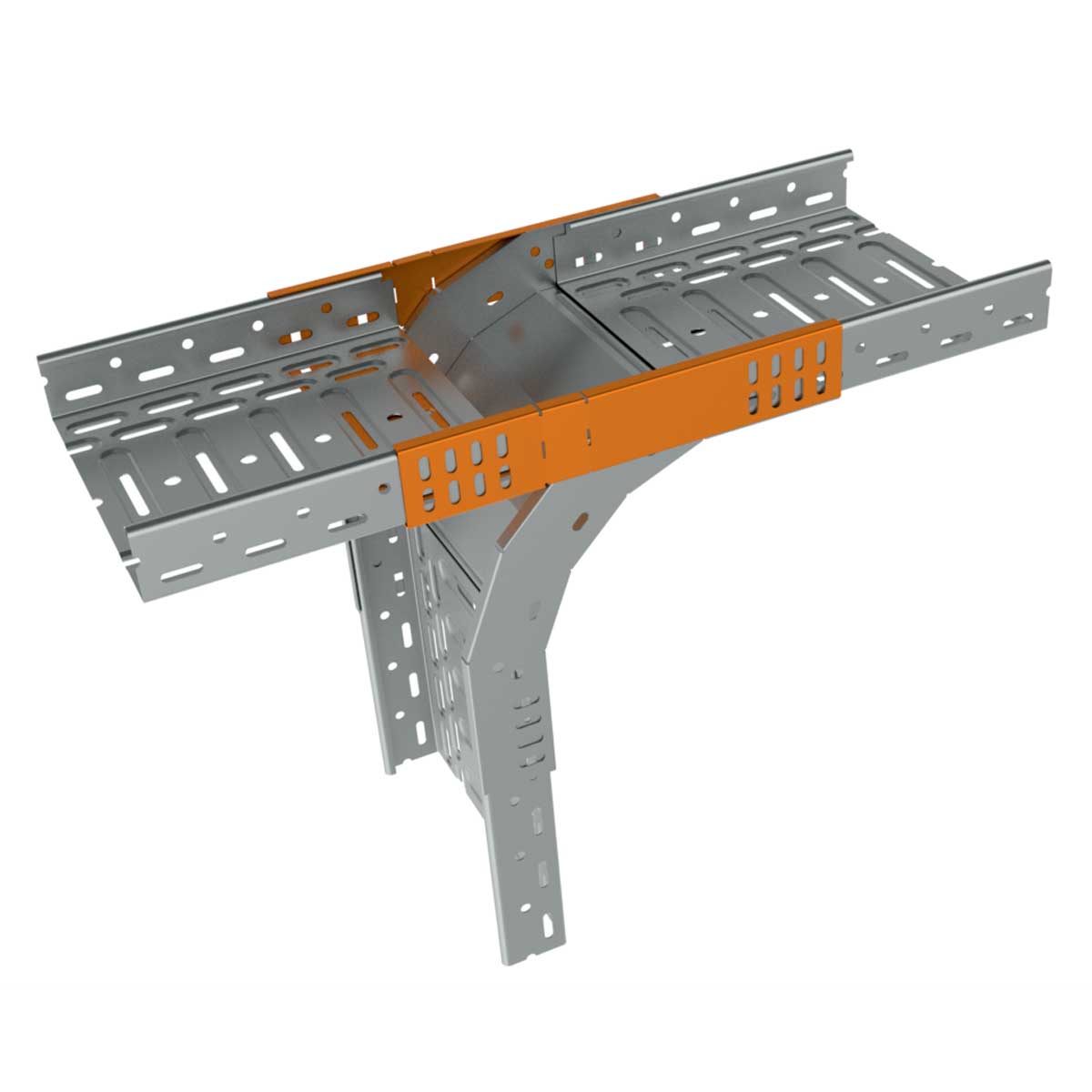

illustrative picture
To download 3D models, please login or create an account and request access.
OSHK_EN
| EAN code | 8595568917676 |
| Customs code | 73089059 |
| Weight | 0,9010 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Dimension A | 372 mm |
| Dimension B | 252 mm |
| Dimension H | 102 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 100 mm |
This part enables a vertical route to be switched to horizontal. Particularly suitable for the main cable route, e.g. to machines or other equipment. Used together with a downward arc. Protected by industrial model.
