OH_EN
| EAN code | 8595057637580 |
| Customs code | 73089059 |
| Weight | 0,6040 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 8 |

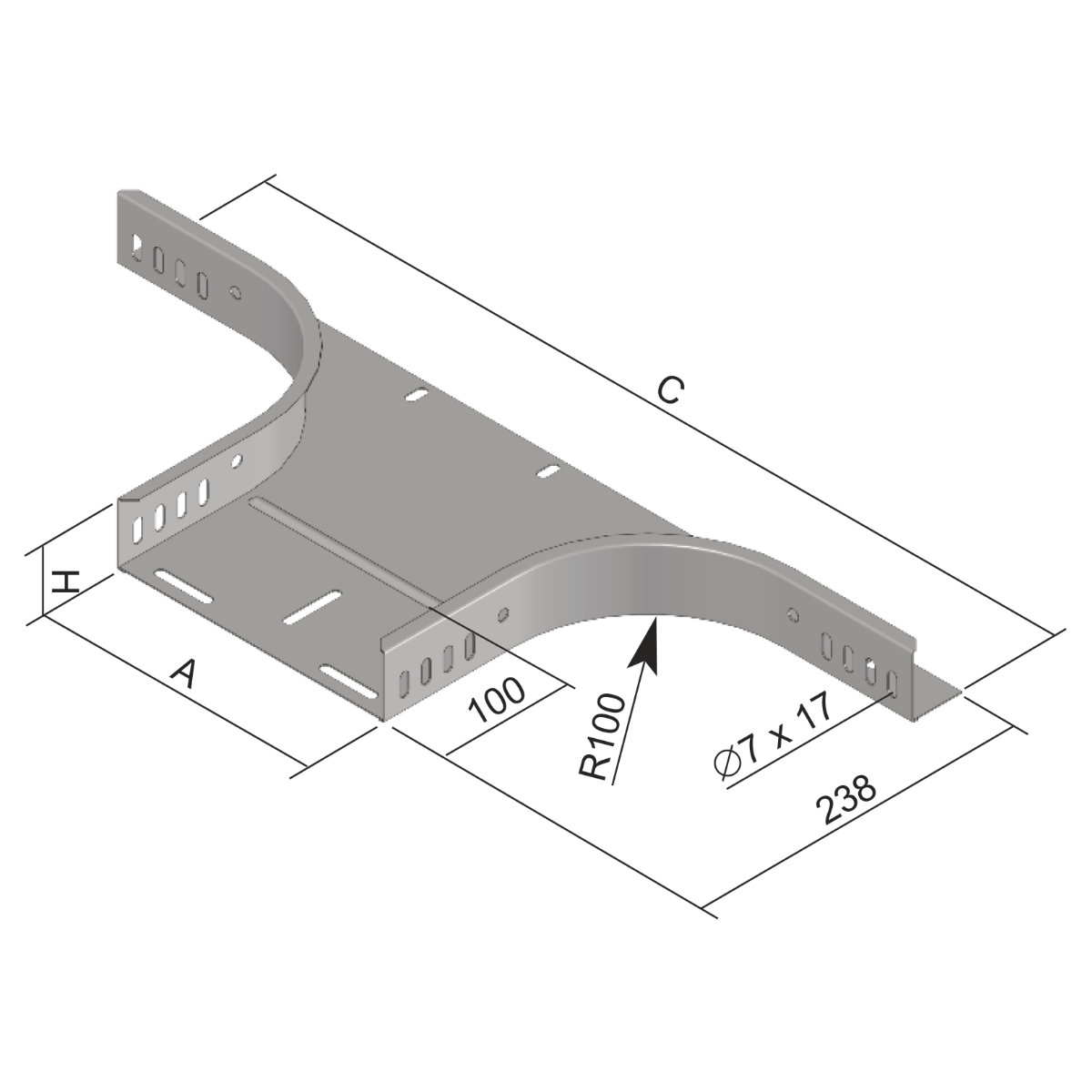

| Dimension A | 78 mm |
| Dimension C | 478 mm |
| Dimension H | 40 mm |
| For width of cable tray | 75 mm |
| For height of cable tray | 35 mm |

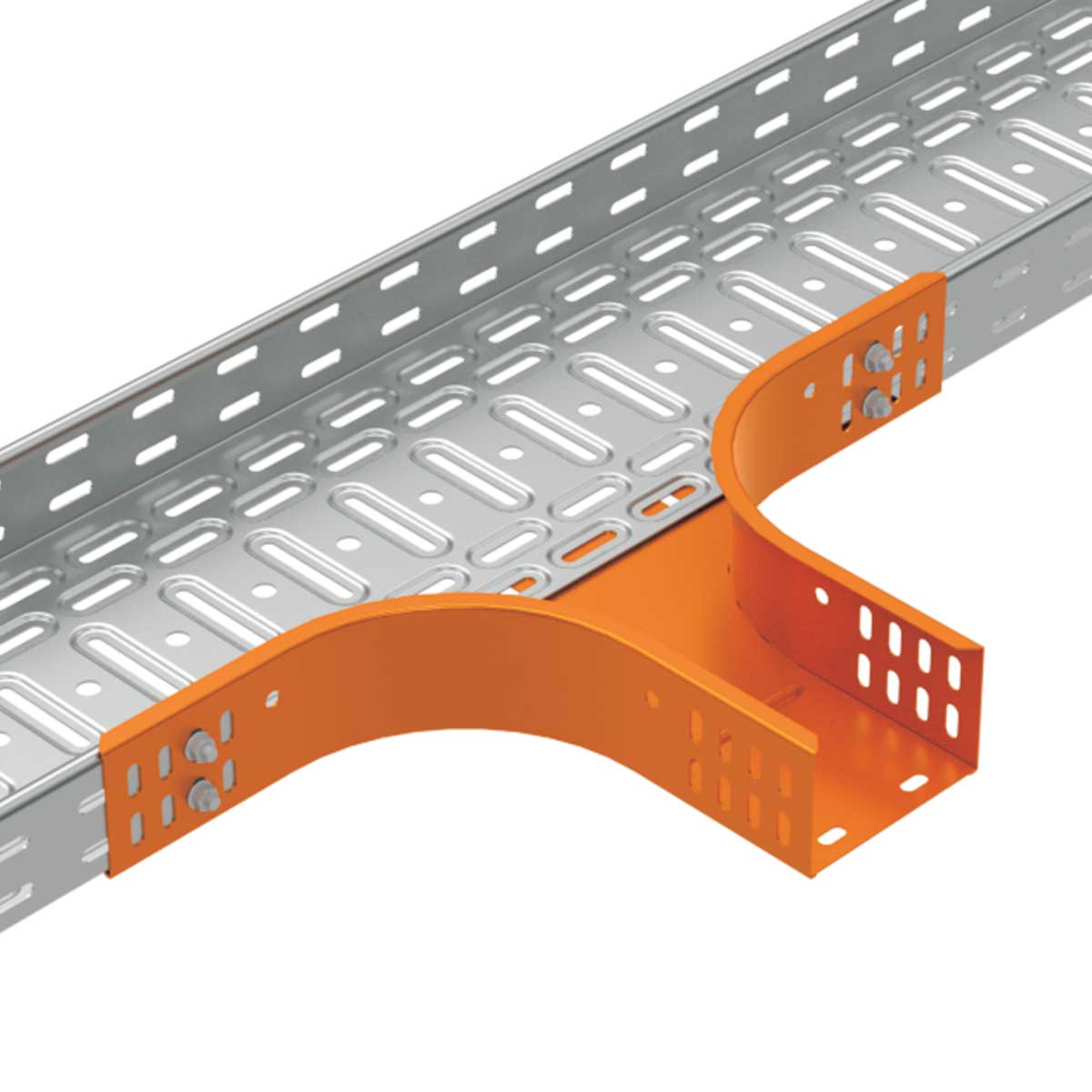

To fix the connection use the bolt NSM 6X10. Horizontal branch is used for additional branching from the line.
