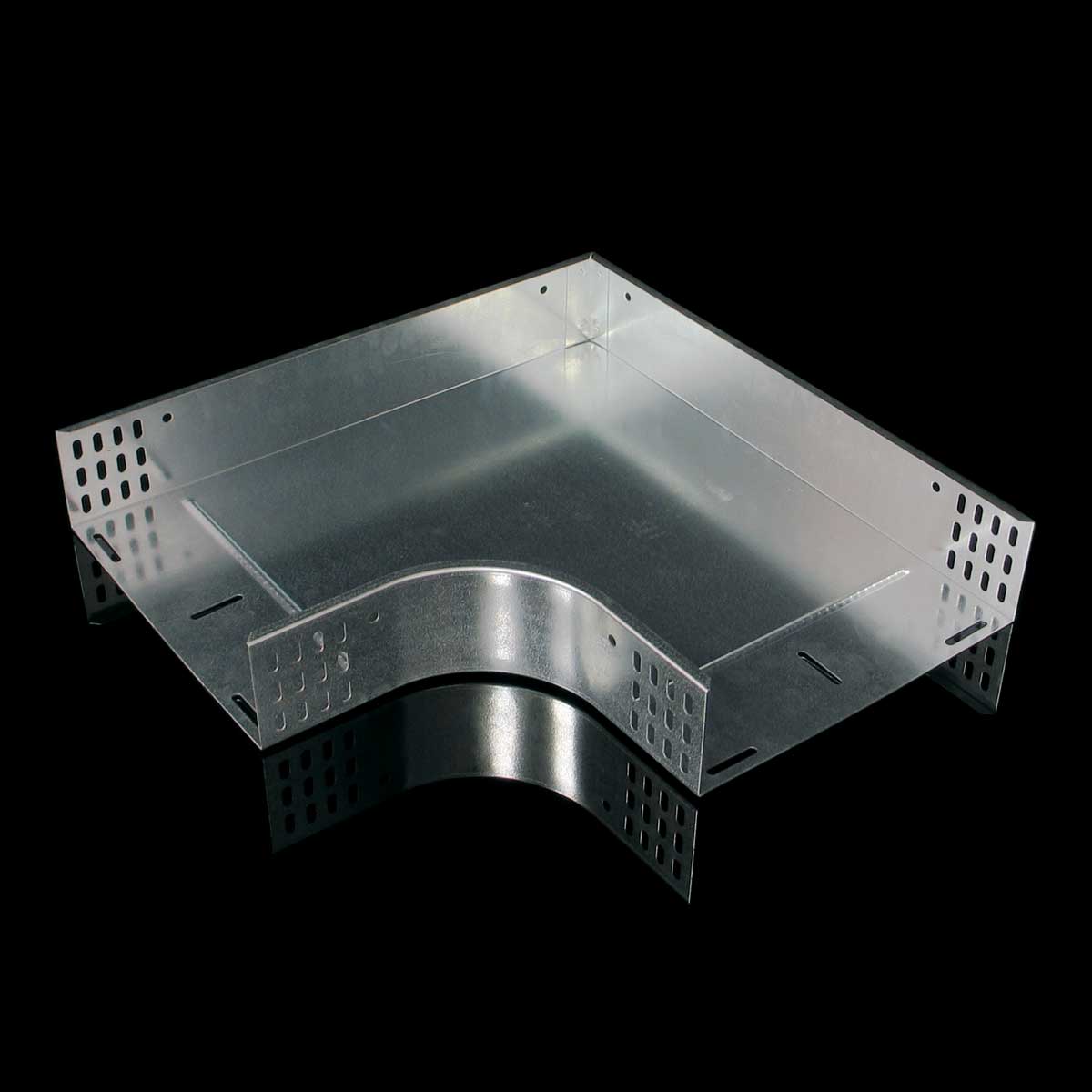

illustrative picture
To download 3D models, please login or create an account and request access.
O90_EN
| EAN code | 8595057627840 |
| Customs code | 73089059 |
| Weight | 1,4470 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 10 |

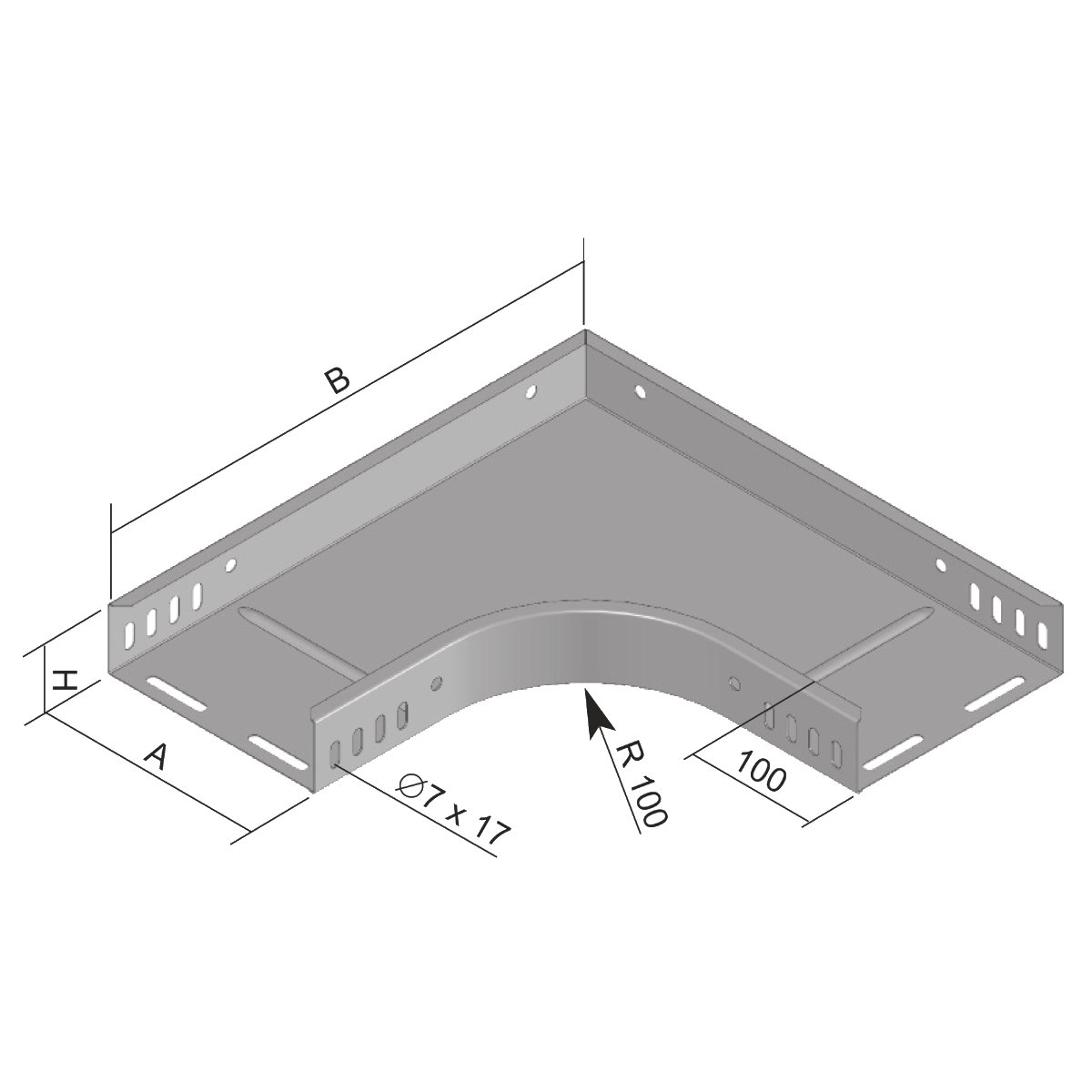

| Dimension A | 203 mm |
| Dimension B | 403 mm |
| Dimension H | 40 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 35 mm |

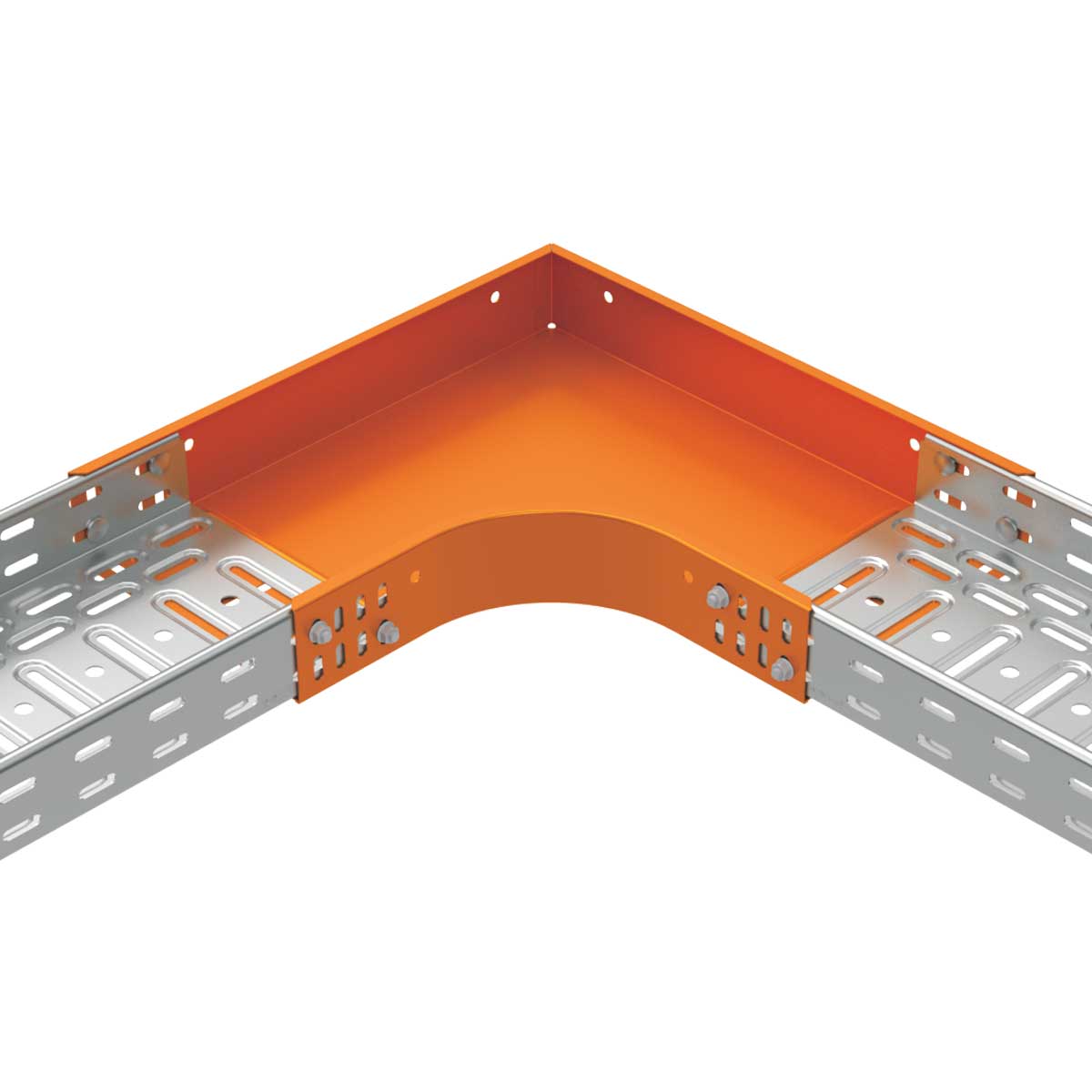

To fix the connection use the bolt NSM 6X10.
