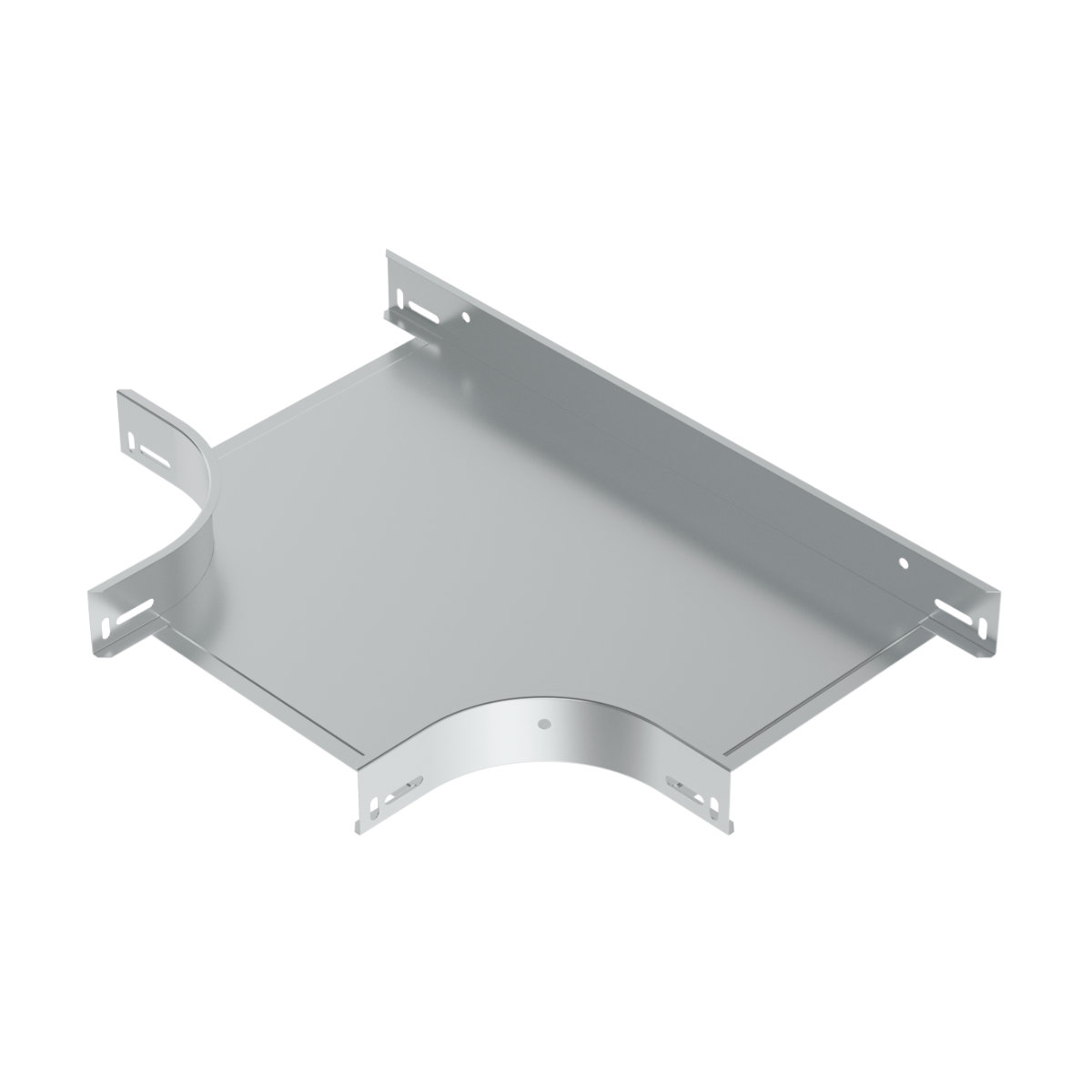

illustrative picture
To download 3D models, please login or create an account and request access.
NT_M3_EN
| EAN code | 8595057654419 |
| Customs code | 73089059 |
| Weight | 1,2760 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,7 mm |
| Quantity of screws for connecting | 6 |
| Dimension A | 252 mm |
| Dimension B | 567 mm |
| Dimension C | 410 mm |
| Dimension H | 52 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NSM 6X10. To create diversion of different width is possible to use reduction piece NRD.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
