NO90_M3_EN
| EAN code | 8595057653900 |
| Customs code | 73089059 |
| Weight | 0,3780 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,7 mm |
| Quantity of screws for connecting | 4 |

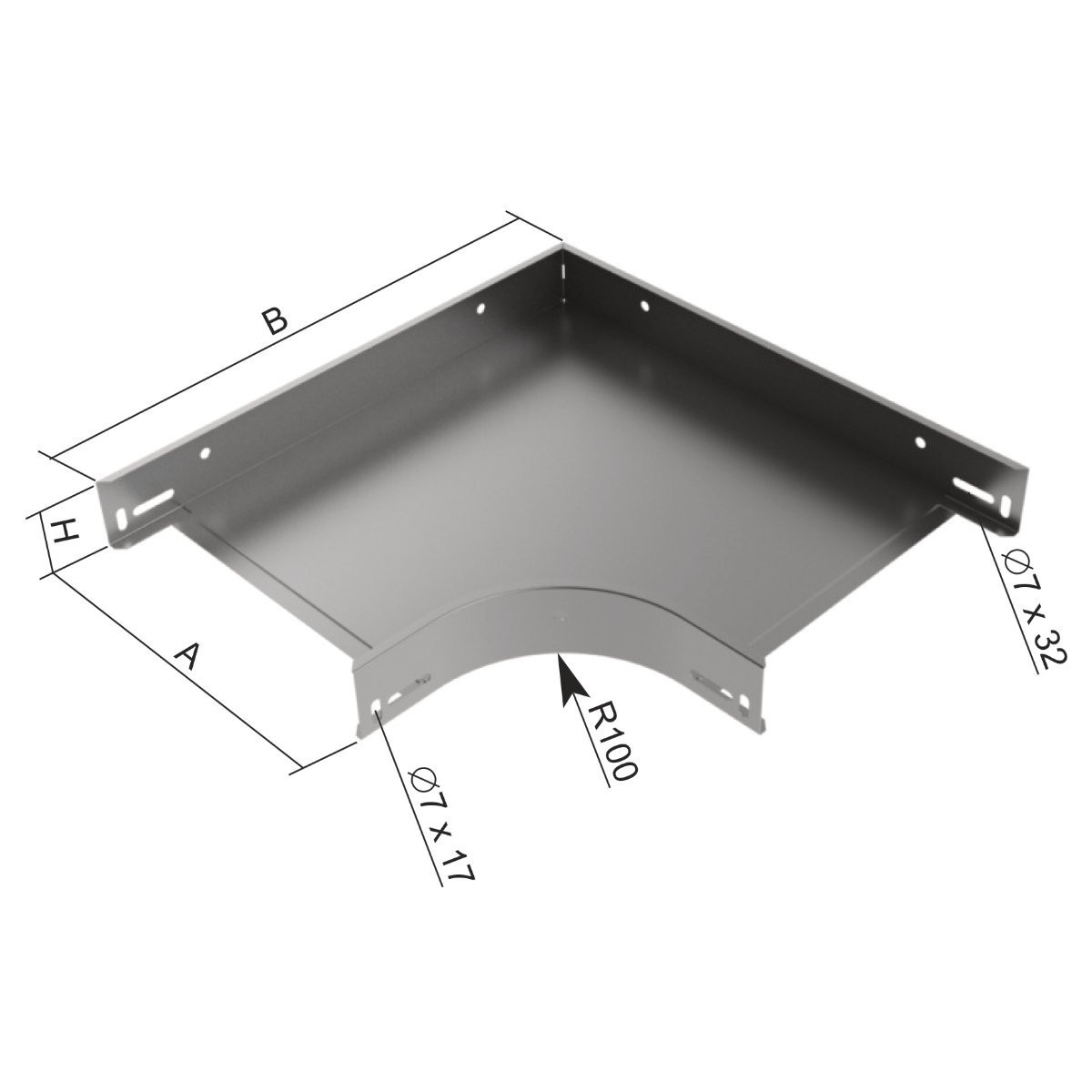

| Dimension A | 64 mm |
| Dimension B | 222 mm |
| Dimension H | 52 mm |
| For width of cable tray | 62 mm |
| For height of cable tray | 50 mm |

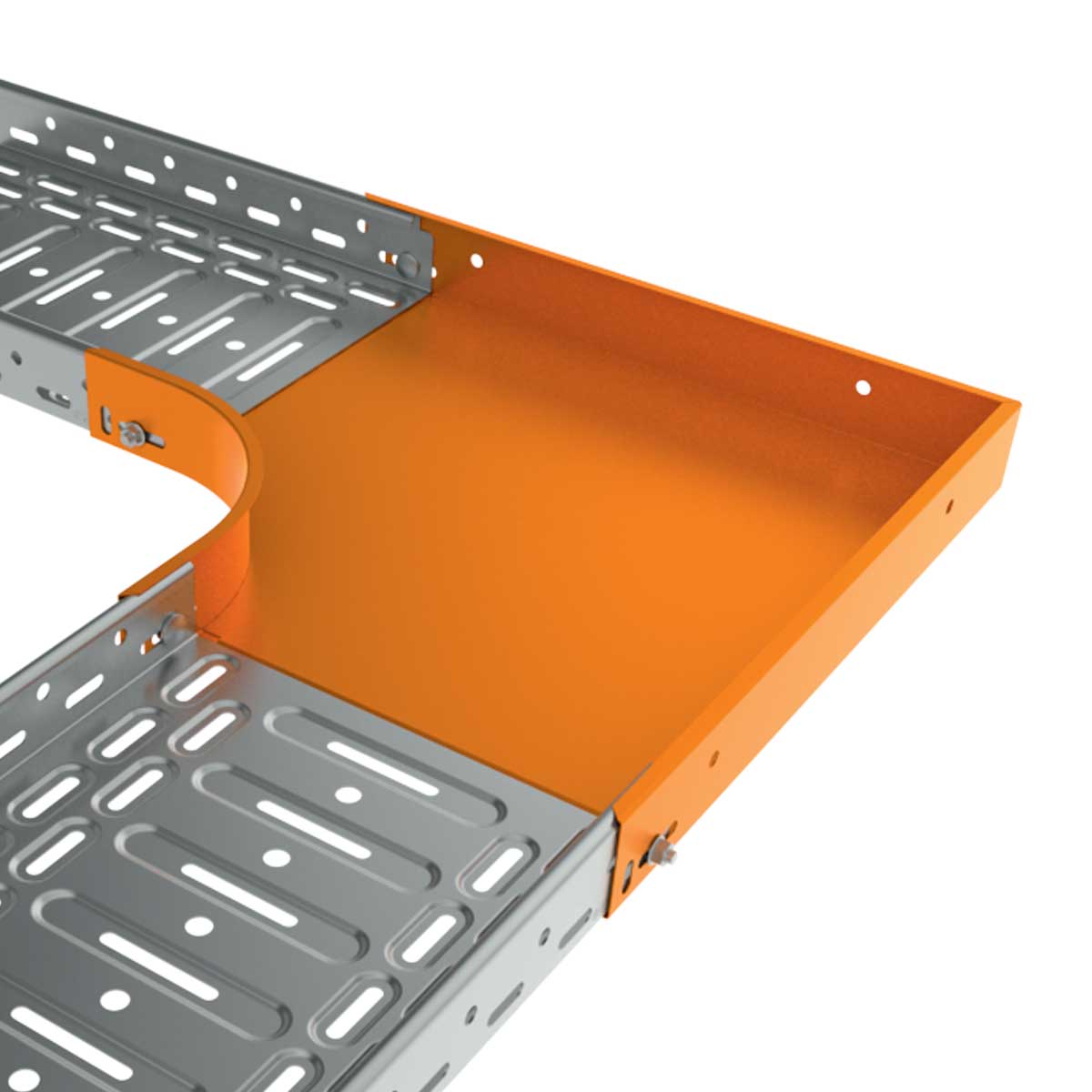

The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
