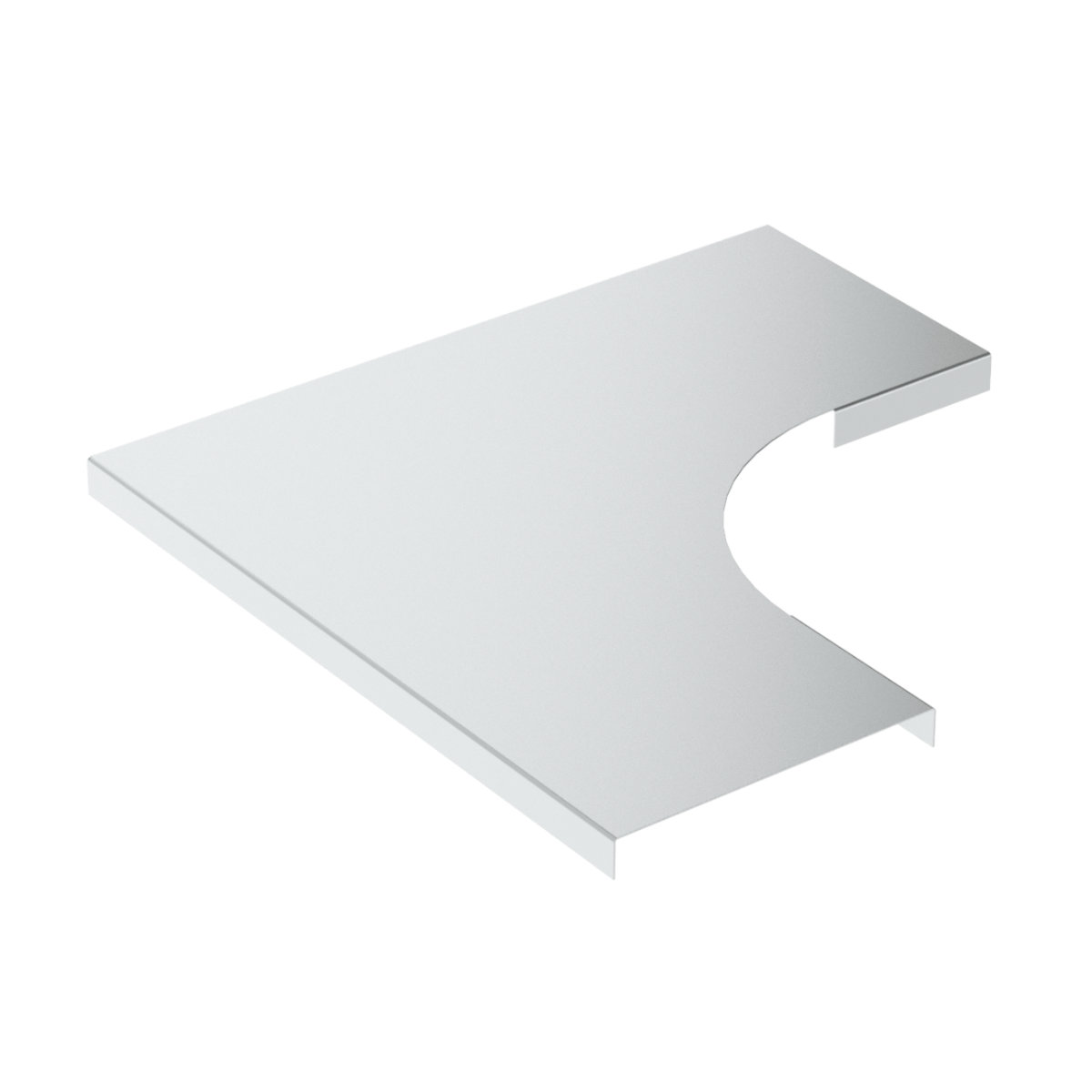

illustrative picture
To download 3D models, please login or create an account and request access.
NIXVO90_EN
| EAN code | 8595057674554 |
| Customs code | 73089059 |
| Weight | 0,3490 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Dimension A | 129 mm |
| Dimension B | 300 mm |
| Dimension H | 15 mm |
| For width of cable tray | 125 mm |
| For height of cable tray | 50 - 100 mm |
To fix the cover use cover fixtures NIXUV.
