MP_EN
| EAN code | 8595057628939 |
| Customs code | 72169180 |
| Weight | 1,1000 kg/m |
| Surface finish | Pre-Galvanized |
| Length | 3000 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,5 mm |
| Dimension A | 21 mm |
| Dimension B | 13x30 mm |
| Dimension L | 3000 mm |

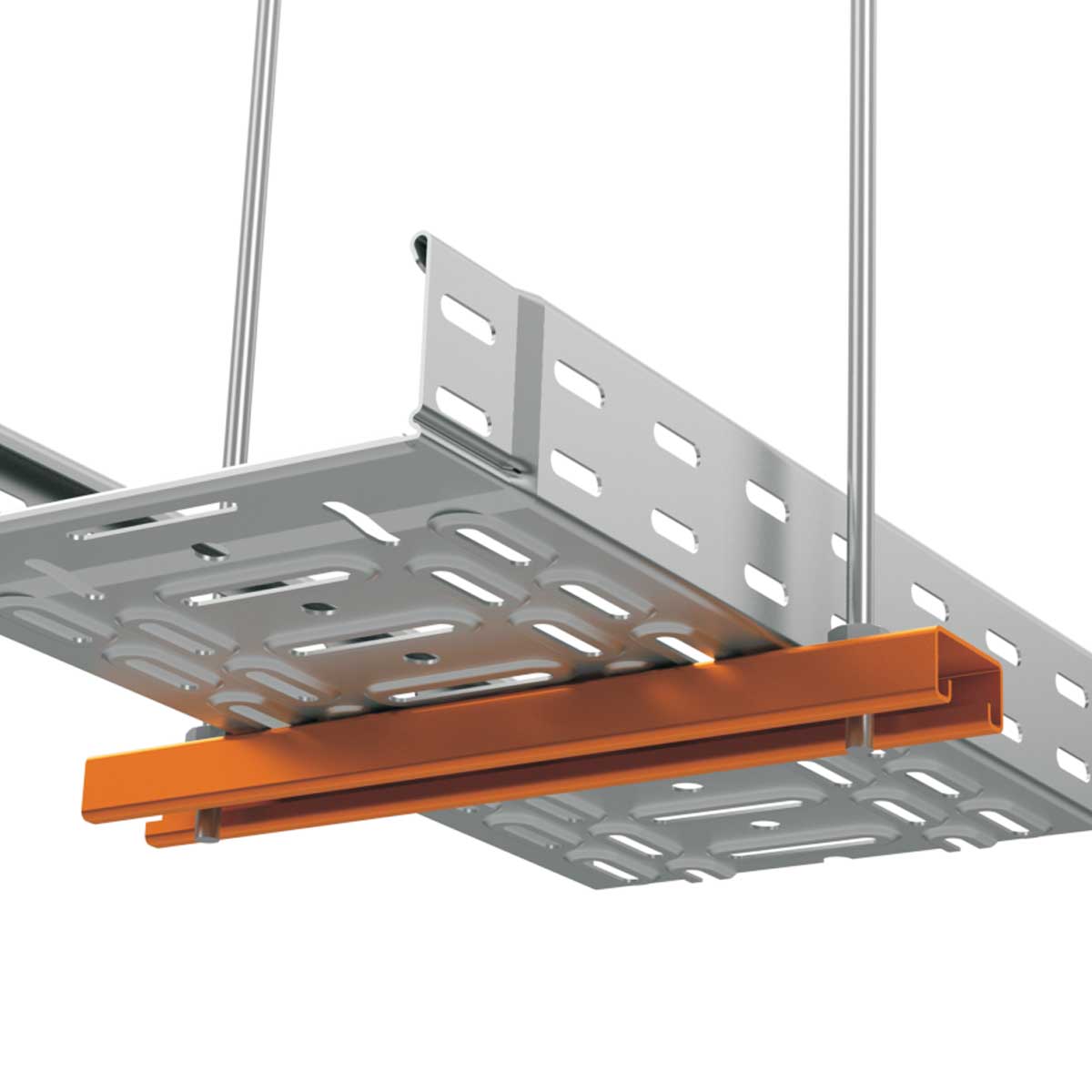

Suitable for creating of beam for cable traces to be carried on thread bars or for creating of supporting structure by help of assembling accessory VS.
Note for system with maintained functionality in fire:
It is used as a support for the installation of ladders or trays when placed on the threaded rods. PD and PVL washers must be put under the nuts.
You find more information in the catalogue Systems with maintained functionality in fire.
