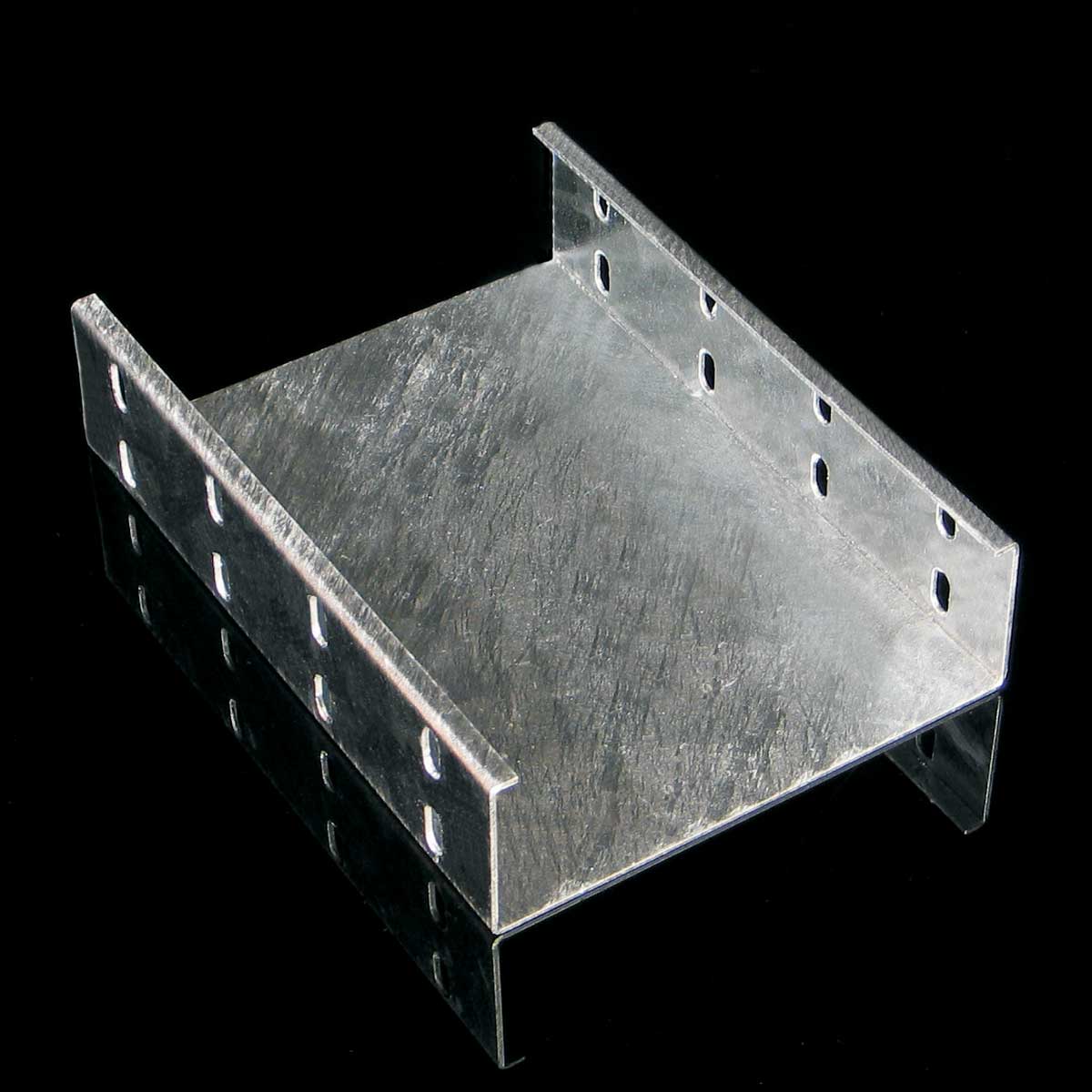

illustrative picture
To download 3D models, please login or create an account and request access.
KSBS_PO_EN
| EAN code | 8595057697768 |
| Customs code | 73269098 |
| Weight | 0,3870 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 16 |
| Dimension A | 50 mm |
| Dimension B | 200 mm |
| Dimension H | 60 mm |
| For width of cable tray | 50 mm |
| For height of cable tray | 60 mm |
| Max. load for fire resistance | 10 kg |
Note for system with maintained functionality in fire:
There are used the screws NSM 6X10 for the connecting.
You find more information in the catalogue Systems with maintained functionality in fire.
