illustrative picture
To download 3D models, please login or create an account and request access.
INOXV_EN
| EAN code | 8595057641860 |
| Customs code | 72224050 |
| Weight | 2,7264 kg/m |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Width | 400 mm |
| Height | 14 mm |
| Length | 2000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |

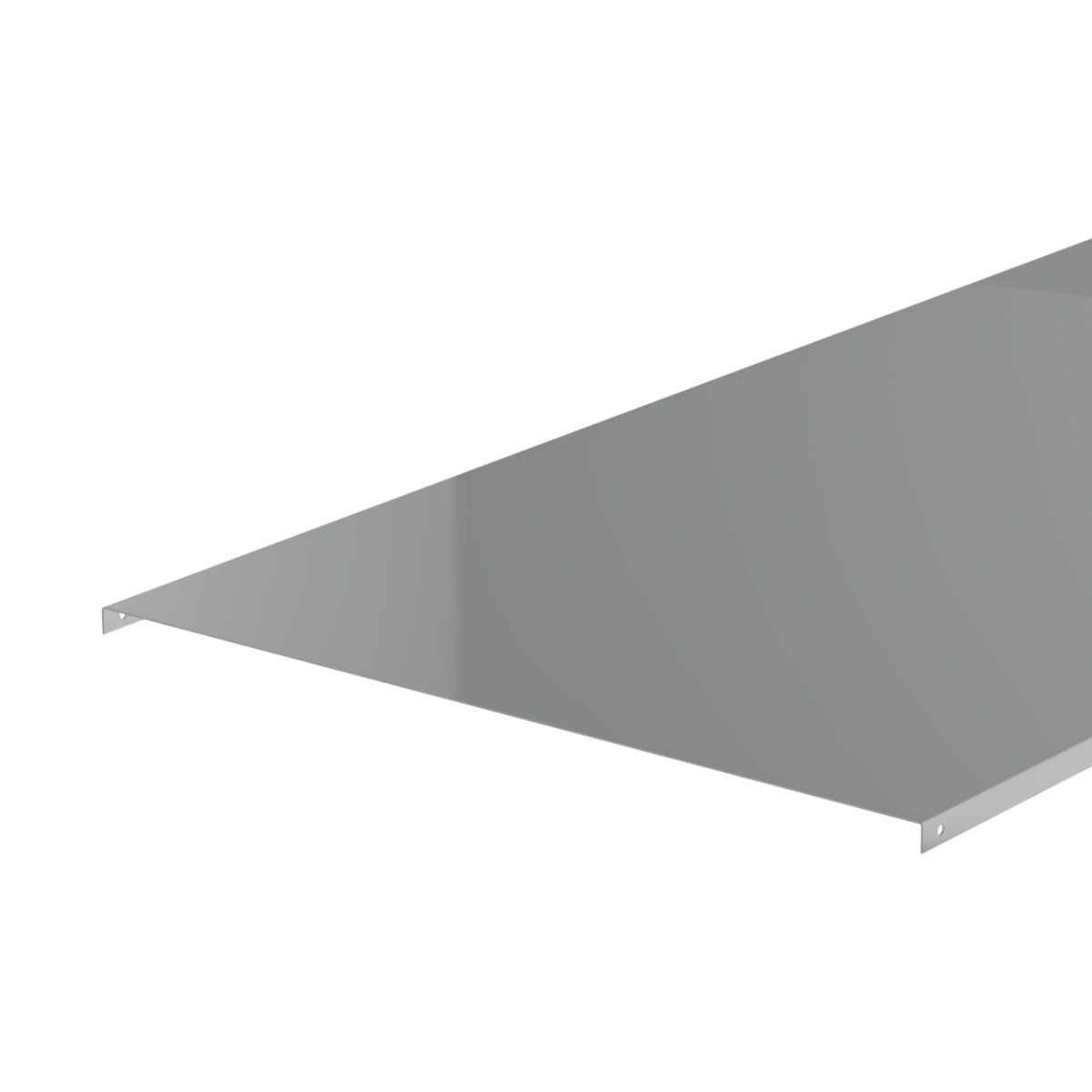

The cover is used to cover the cable route. The fixing of the cover to the tray is done using the cover fixture INOXVU and bolt NIXSM 6X10.
