DZDS_EN
| EAN code | 8595568902672 |
| Customs code | 83024190 |
| Weight | 0,4200 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

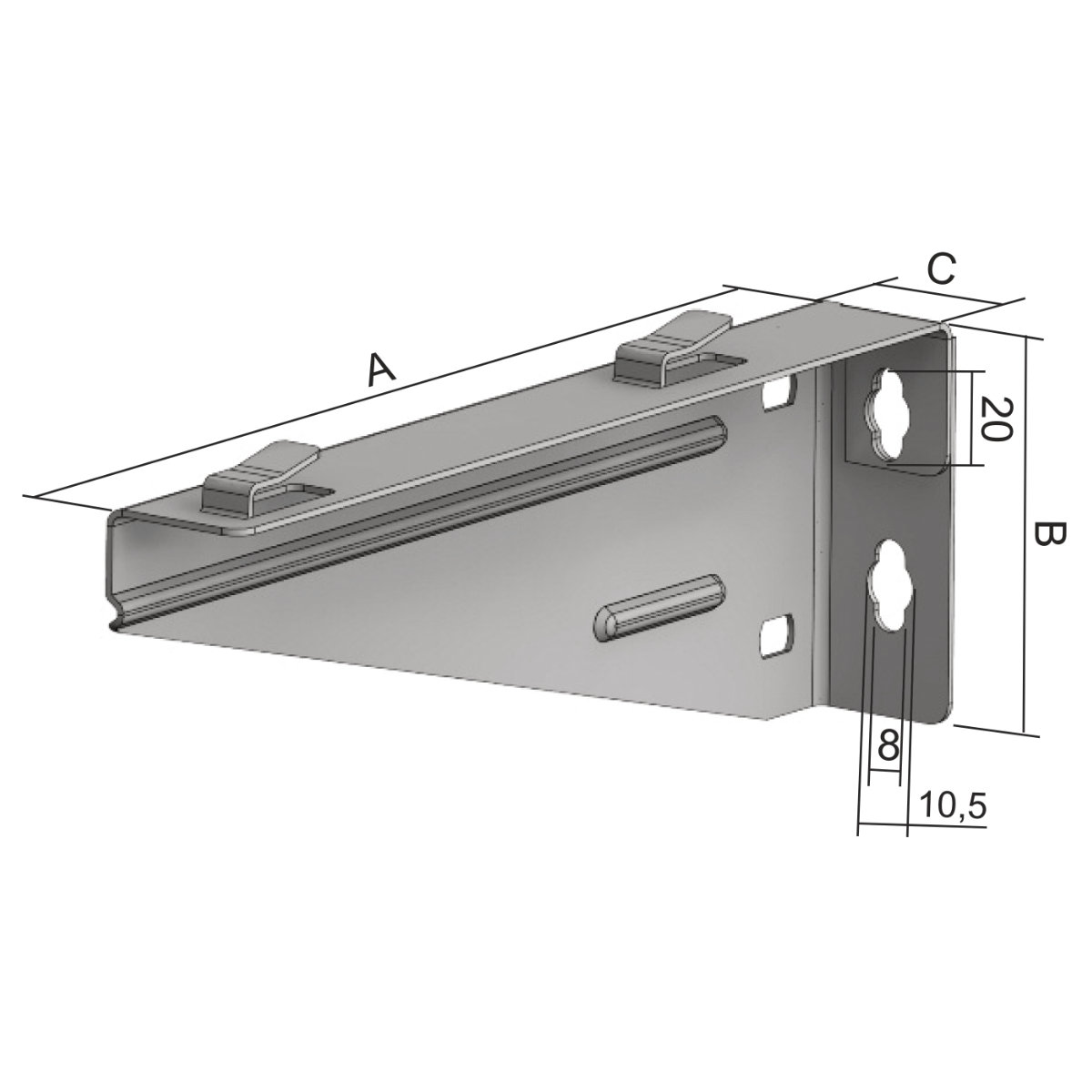

| Dimension A | 250 mm |
| Dimension B | 85 mm |
| Dimension C | 36 mm |
| Max. load for fire resistance | 5 - 10 kg |

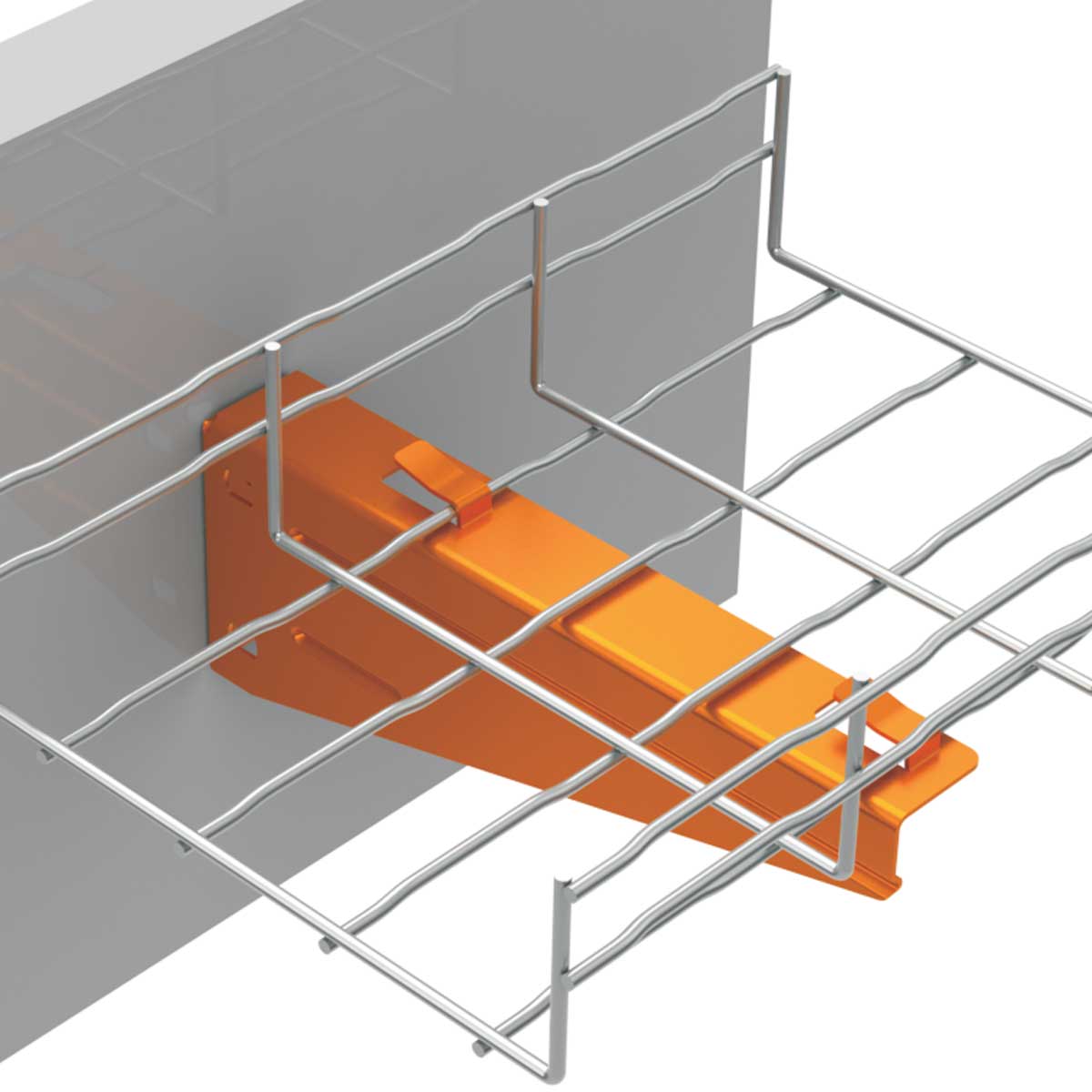

Quick and reliable fixation of the wire tray to the bracket is secured by bending in the fastening tabs.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
