Středový závěs

Attachments and certifications

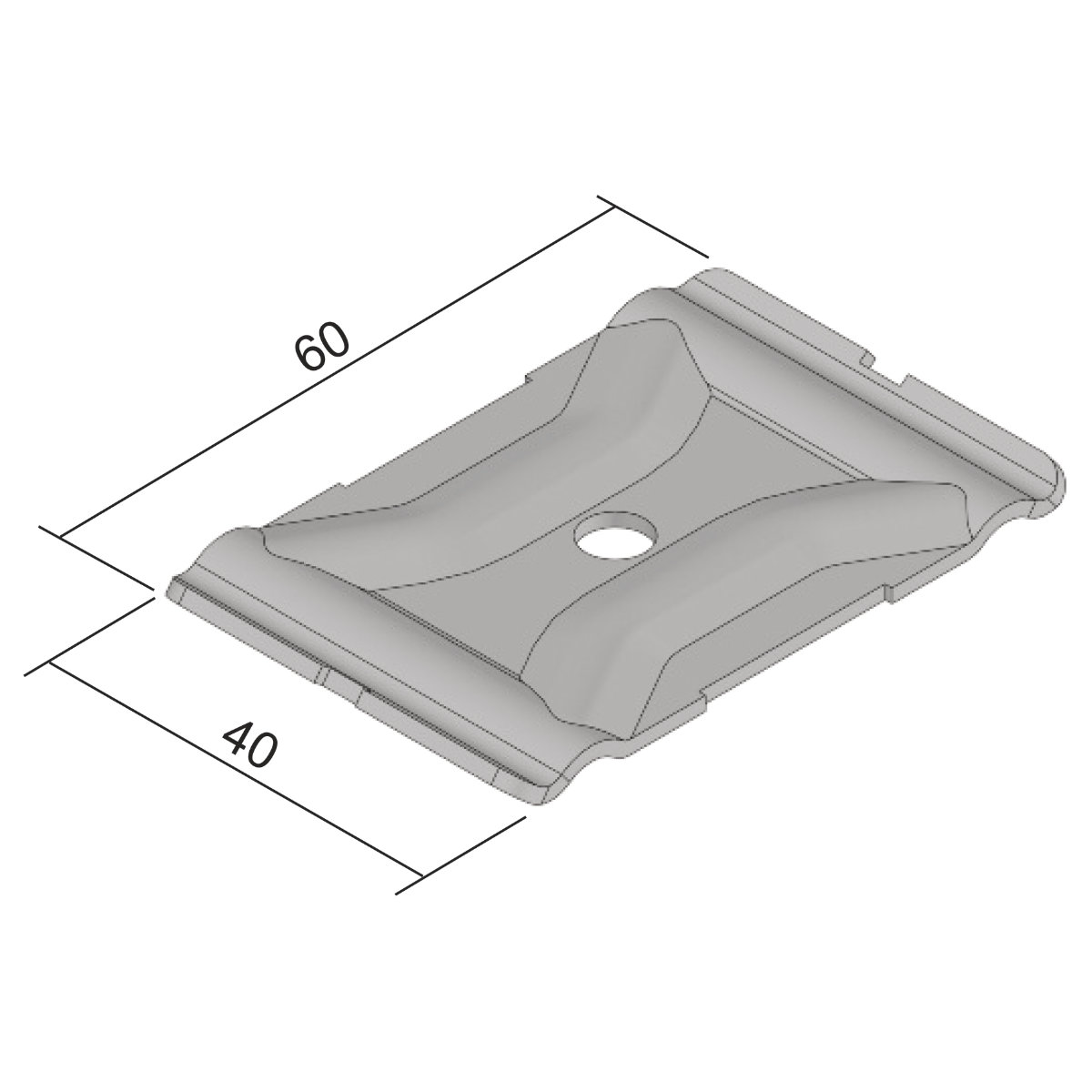

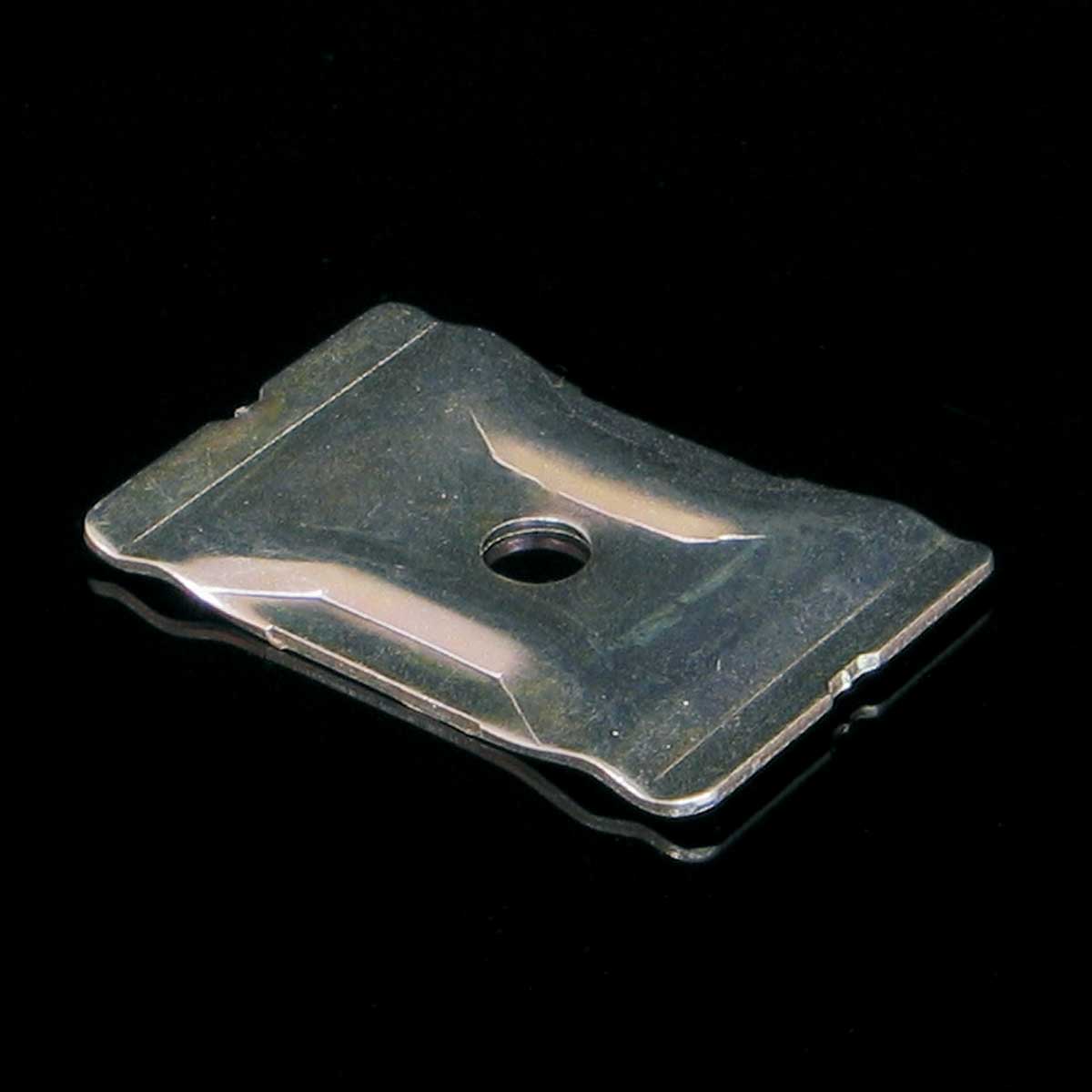

illustrative picture

To download 3D models, please login or create an account and request access.

Data sheet
DZCZ.B_EN

Certificate
Declaration RoHS
Declaration REACH

Attachment
Certification report DIN
Certificate DIN
Conformity declaration DIN

EAN code	8595568902634
Customs code	73269098
Weight	0,0300 kg/pcs
Surface finish	Hot Dip Galvanized
Funcionality in fire	P90-R, E90, PS90
Standards	ČSN EN 61537
Fire resistance standards	ČSN 73 0895, DIN 4102-12, STN 92 0205
For width of cable tray	100 - 300 mm
Max. load for fire resistance	5 - 10 kg

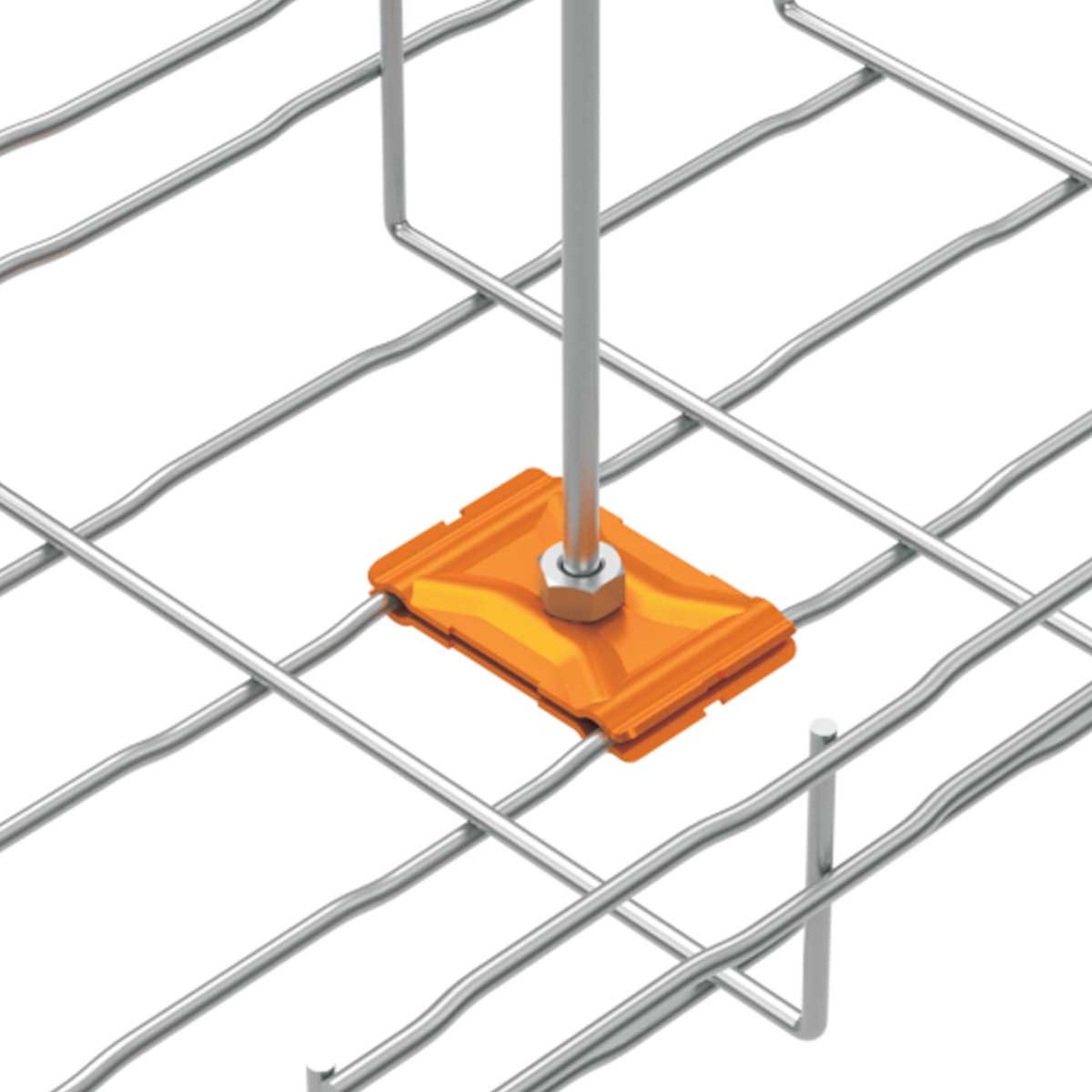

The central hanger is designated for the hanging of the wire tray from the ceiling. For the hanging it is necessary to use two central hanger pieces and the threaded rod Ø 8 mm. The hanger is not intended for hanging of the trays of DZ 60X60 and DZ 35X150. For creating a single hanger attachment by using an inner hanger, 2 pcs of middle hangers must be ordered. There is recommended for cable trays width max. 300 mm.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
