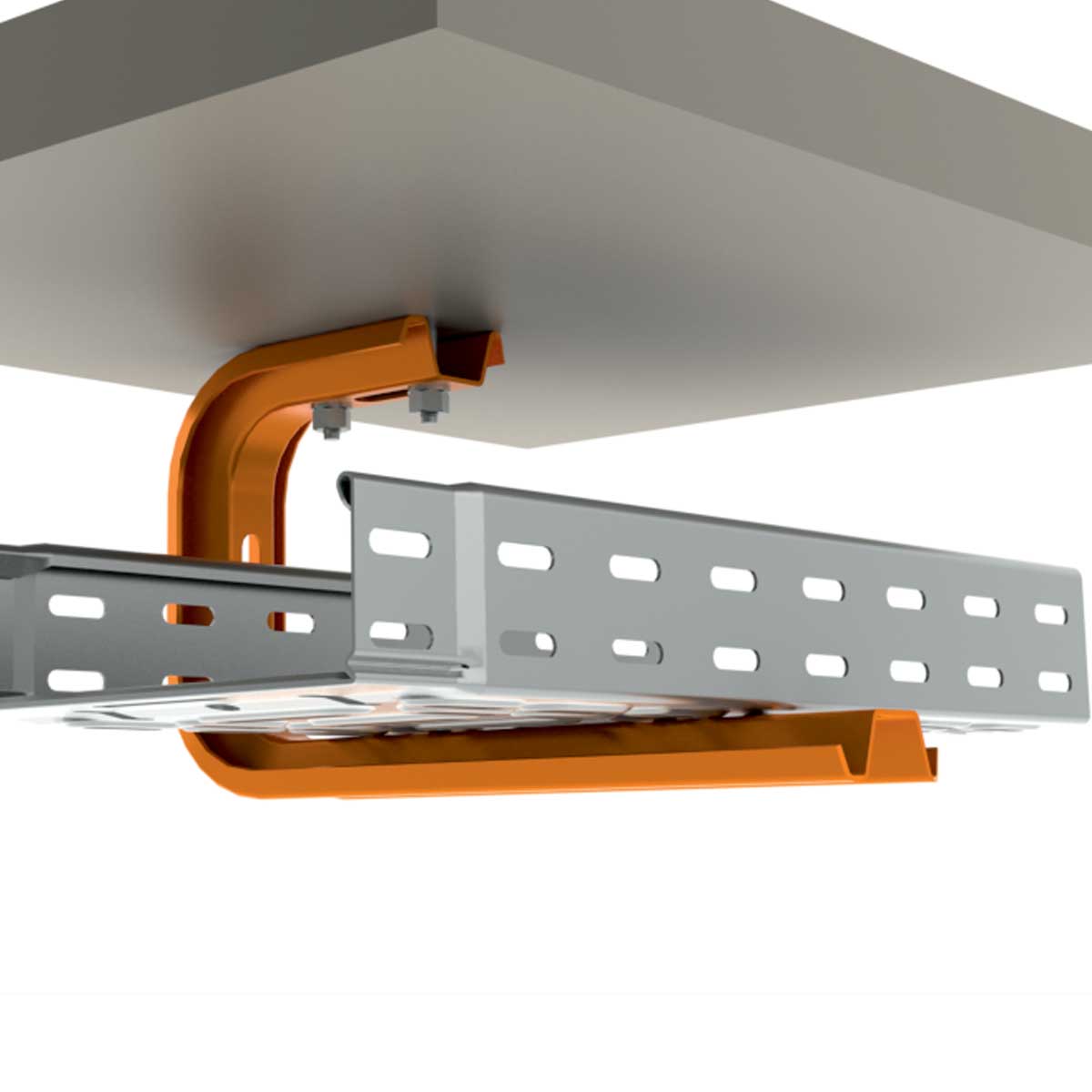

illustrative picture
To download 3D models, please login or create an account and request access.
CTS_EN
| EAN code | 8595057629592 |
| Customs code | 83024190 |
| Weight | 0,5200 kg/pcs |
| Surface finish | Pre-Galvanized |
| Maximum load | 95 kg |
| Maximum load with thread rod | 200 kg |
| Dimension A | 161 mm |
| For width of cable tray | 100 mm |
Designated for direct mounting to the ceiling or with a threaded rod ZT 8 or ZT 10. The cable tray is fixed by using the bolts NSM 6X10. To eliminate deformation during assembly the STS reinforcement is designated. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
