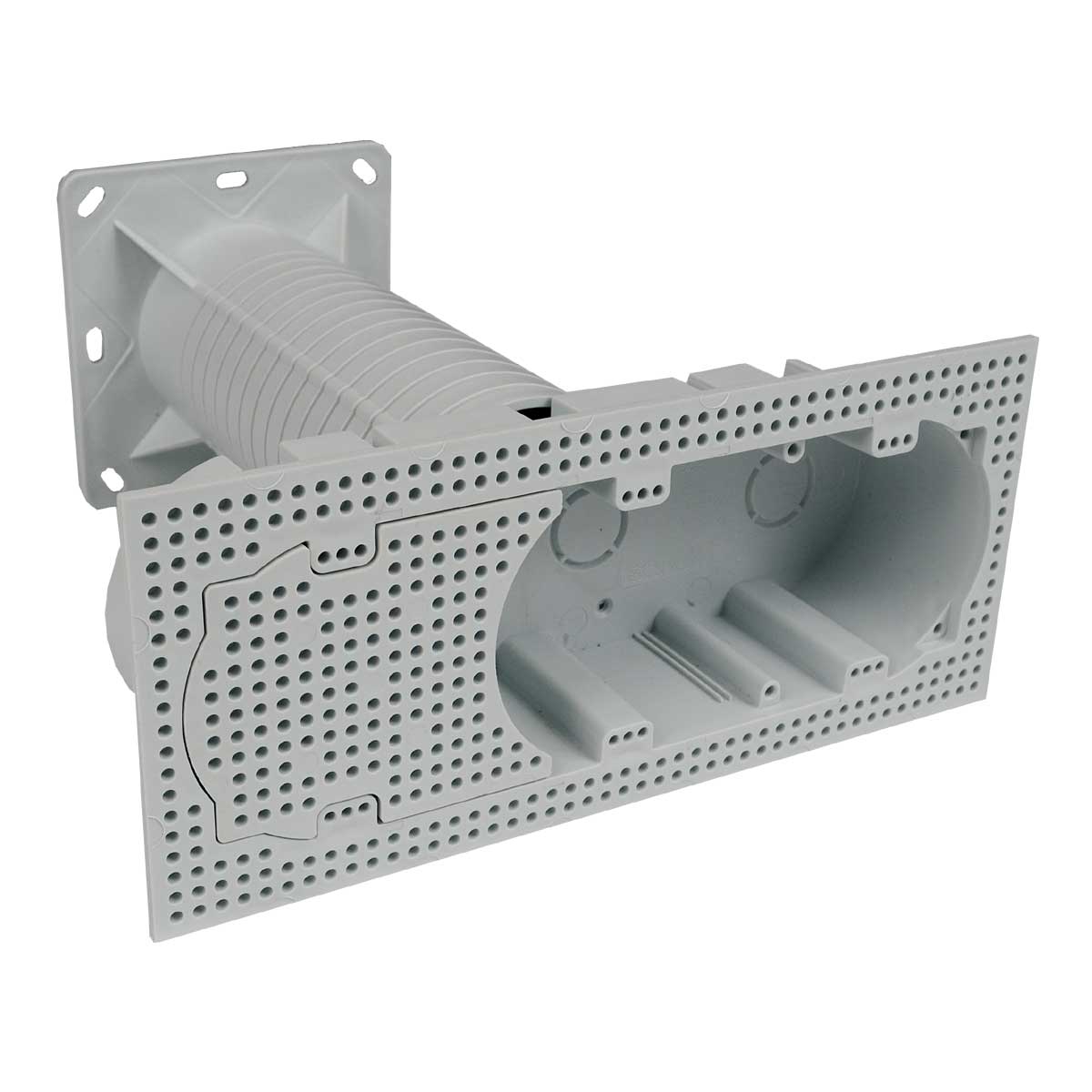

illustrative picture
To download 3D models, please login or create an account and request access.
KEZ3_EN
| EAN code | 8595568910561 |
| Customs code | 39259080 |
| Weight | 0,4100 kg/pcs |
| Material | PP |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -25 - 60 °C |
| Flaming loop test | 850 °C |
| Assembly When using an endcap, it is possible to install 2 devices without a 3-piece endcap device in a common frame. There is necessary to cut the carrier including inserted insulation before installation depending on layer thickness insulation. The carrier is fixed to the wall with twists and dowels depending on type of the wall surface. When installing a 400 V socket, it is recommended to fasten the carrier using chemical anchors. The finally installation of box or mounting plate should be done by 4 added screws. | |

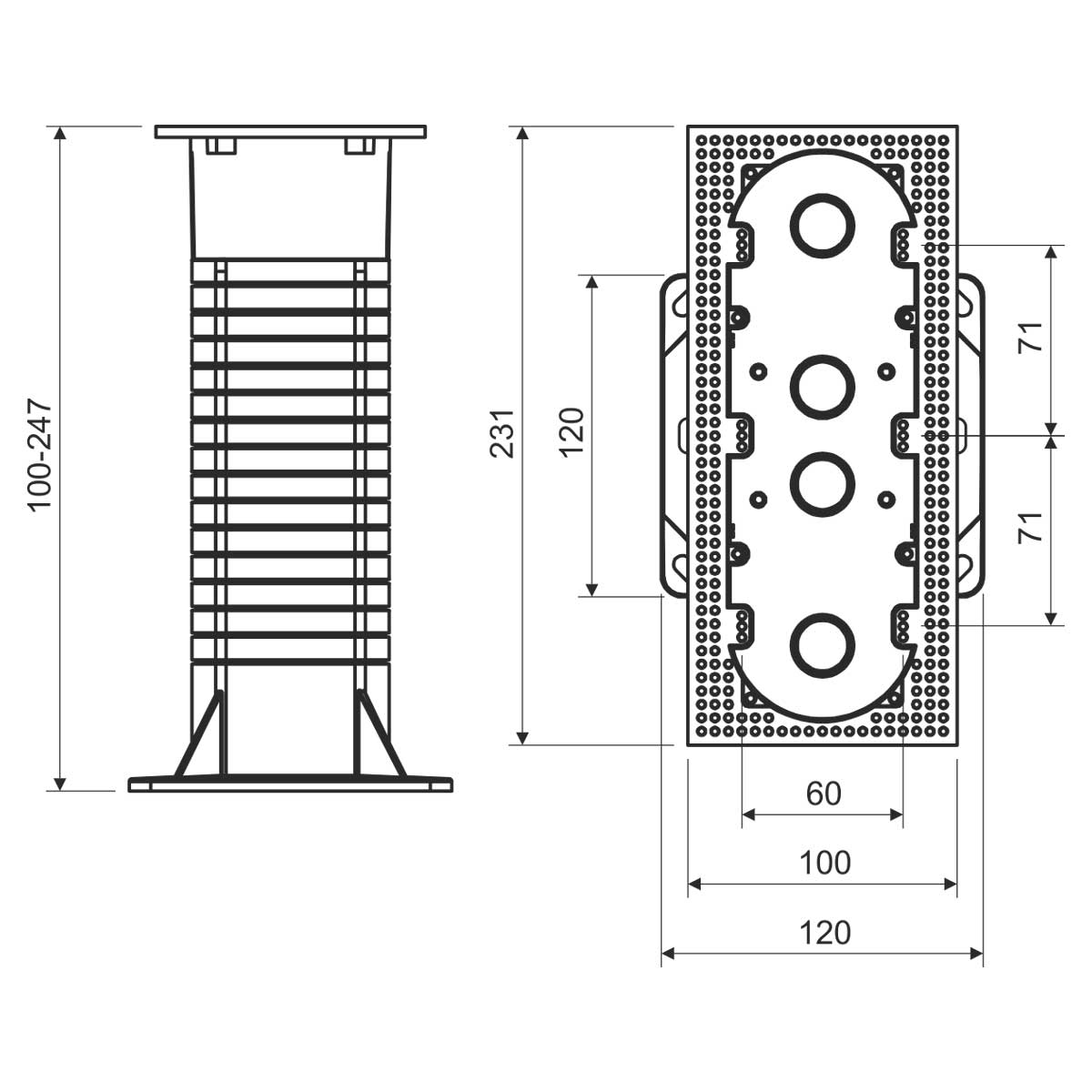

| Width | 100 mm |
| Height | 230 mm |
| Depth | 250 mm |
| Fire reaction class of underlying material | A1 - F |
| Spacing when joining 2 boxes | 71 mm |
| Package description individual boxes are packed in separate cardboards | |
For installation of two or three devices with a 71 mm axial distance in the insulated facades of buildings with a thickness of 100 - 250 mm. In the case of the use of a low-shield tripple frame, it is necessary to inform the suppliers about the possible way of sealing up it to IP44. Suitable triple frames with IP44 - ABB Levit, Zoni, Legrand Valera Life IP44, Schneider Elso Fashion IP44. Eliminates thermal bridging. The package includes a support tube, triple box, blanking plug, dividing partition, internal and external insulation and quality wall plugs, screws for mounting and a partition for separating multiple circuits. When installing on a rough surface, we recommend to seal the device with silicone. Robust construction.
