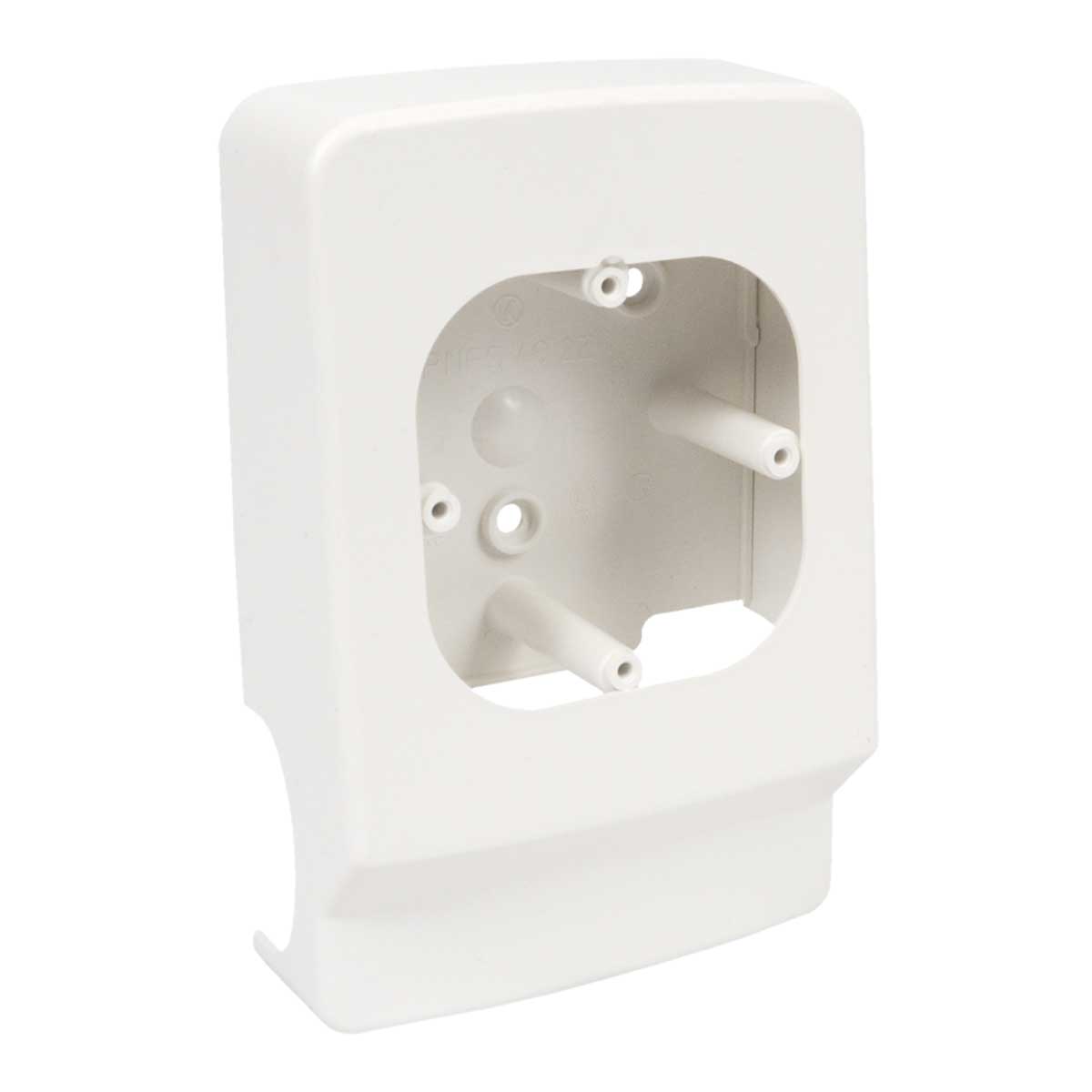

illustrative picture
To download 3D models, please login or create an account and request access.
Declaration REACH
| EAN code | 8595057652347 |
| Customs code | 39259080 |
| Weight | 0,0943 kg/pcs |
| Colour | white |
| Material | PVC |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Width | 96 mm |
| Height | 147 mm |
| Depth | 44 mm |
| Use | for trunking LE 40 |
| Fire reaction class of underlying material | A1 - D |
| Allows to install double-socket | yes |
It consists of two parts - the carrier and cover. After removing the members in the vertical axis, you can mount the doublesocket. Suitable for the following instruments: Classic, Tango, Swing, Time, Element and others with a max. width of 89 mm.
