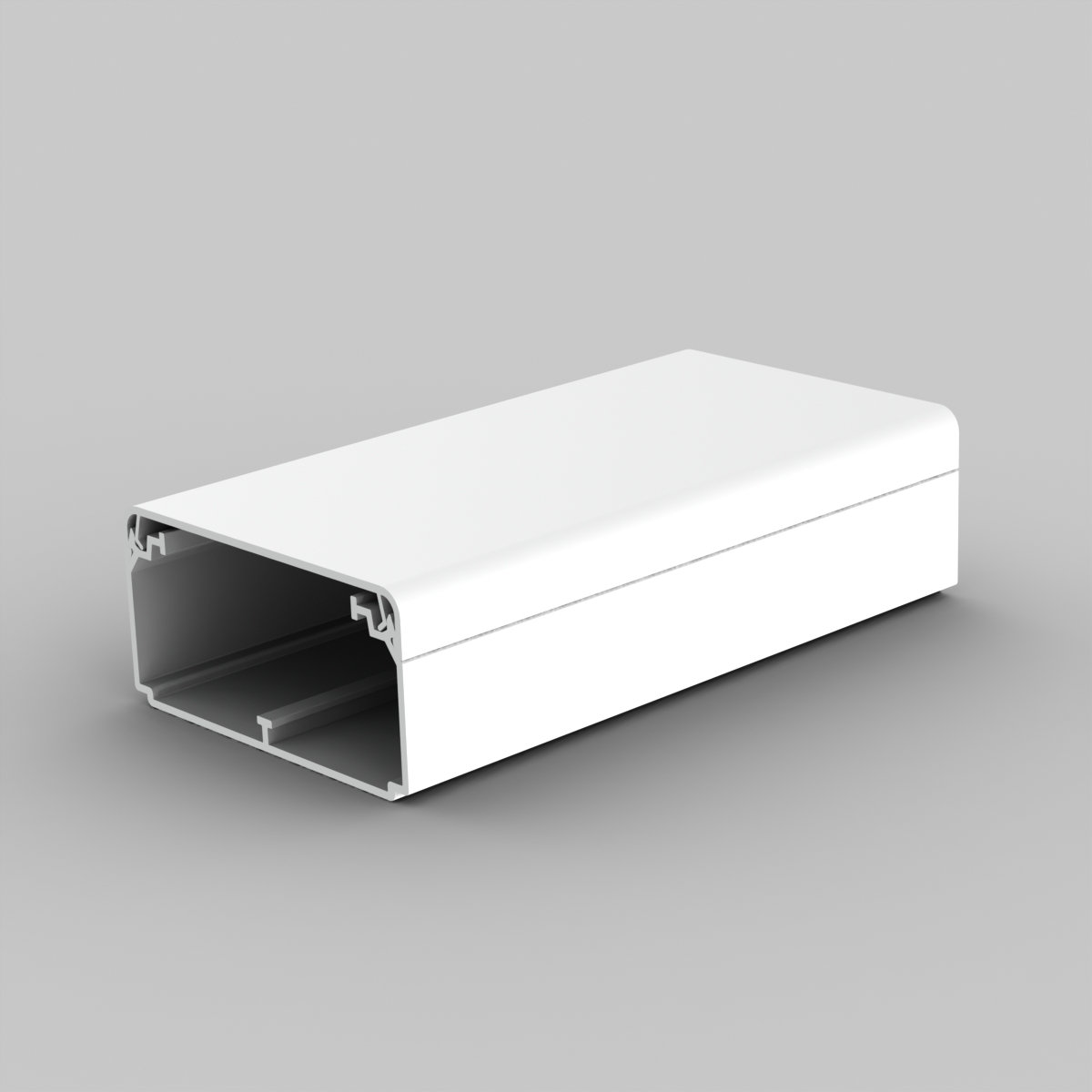

illustrative picture
To download 3D models, please login or create an account and request access.
EKD80X40_EN
| EAN code | 8595057690455 |
| Customs code | 39259020 |
| Weight | 0,7000 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Impact resistance | 0,5 J |
| Antibacterial | yes |
| Width | 80 mm |
| Height | 40 mm |
| Length | 2 m |
| Inside area | 2430 mm2 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Use they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 40 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |
| With protective foil | yes |
It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert PEKD 40 partition walls. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. Spacers are included in the package – always 1 pc per 1 m.
