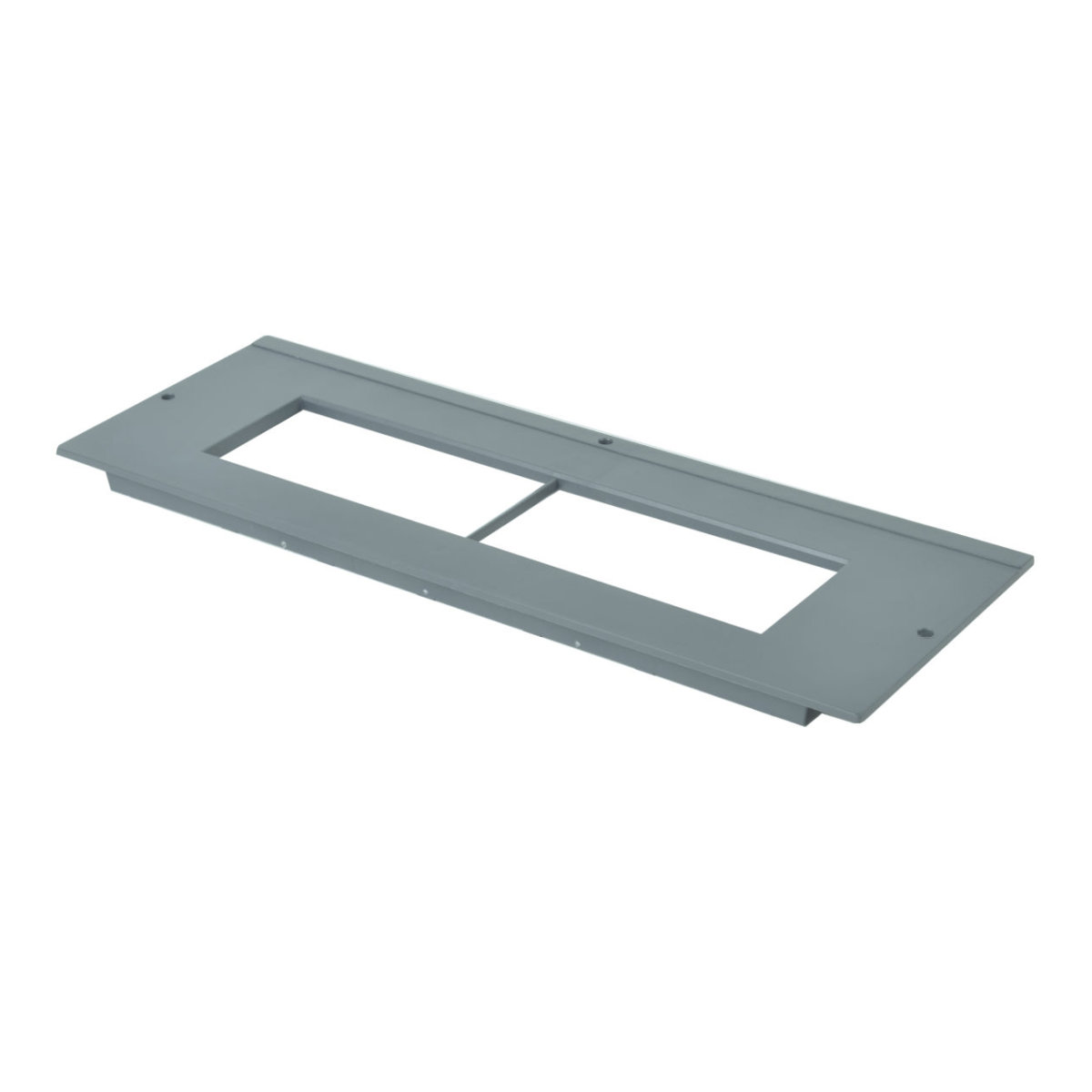

illustrative picture
To download 3D models, please login or create an account and request access.
PP80_EN
| EAN code | 8595057690806 |
| Customs code | 39259080 |
| Weight | 0,0540 kg/pcs |
| Colour | dark grey |
| Material | PA |
| Halogen free material | yes |
| Leadless material | yes |
| Temperature resistance | -5 - 105 °C |
| Flaming loop test | 850 °C |
| Width | 250 mm |
| Height | 81 mm |
| Package description washer for mounting up to 4 pcs of QUADRO modular devices or devices of the same design eg ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric | |
Device plate is installed into the floor box KOPOBOX 80 frame. Installation is recommended together with the device box KPP 80. When installing multiple modular devices, it is appropriate to remove the inner partition. External dimensions of other device pads are identical with the drawing.
