universal box

Attachments and certifications

illustrative picture

To download 3D models, please login or create an account and request access.

Data sheet
LKM45_EN

Certificate
Declaration RoHS
Declaration REACH

EAN code	8595057634855
Customs code	39259080
Weight	0,0790 kg/pcs
Colour	white
Material	PVC
Leadless material	yes
Self-extinguishing	30 s
Rated voltage	<= 400 V
Rated current	<= 16 A
Temperature resistance	-5 - 60 °C
Flaming loop test	850 °C

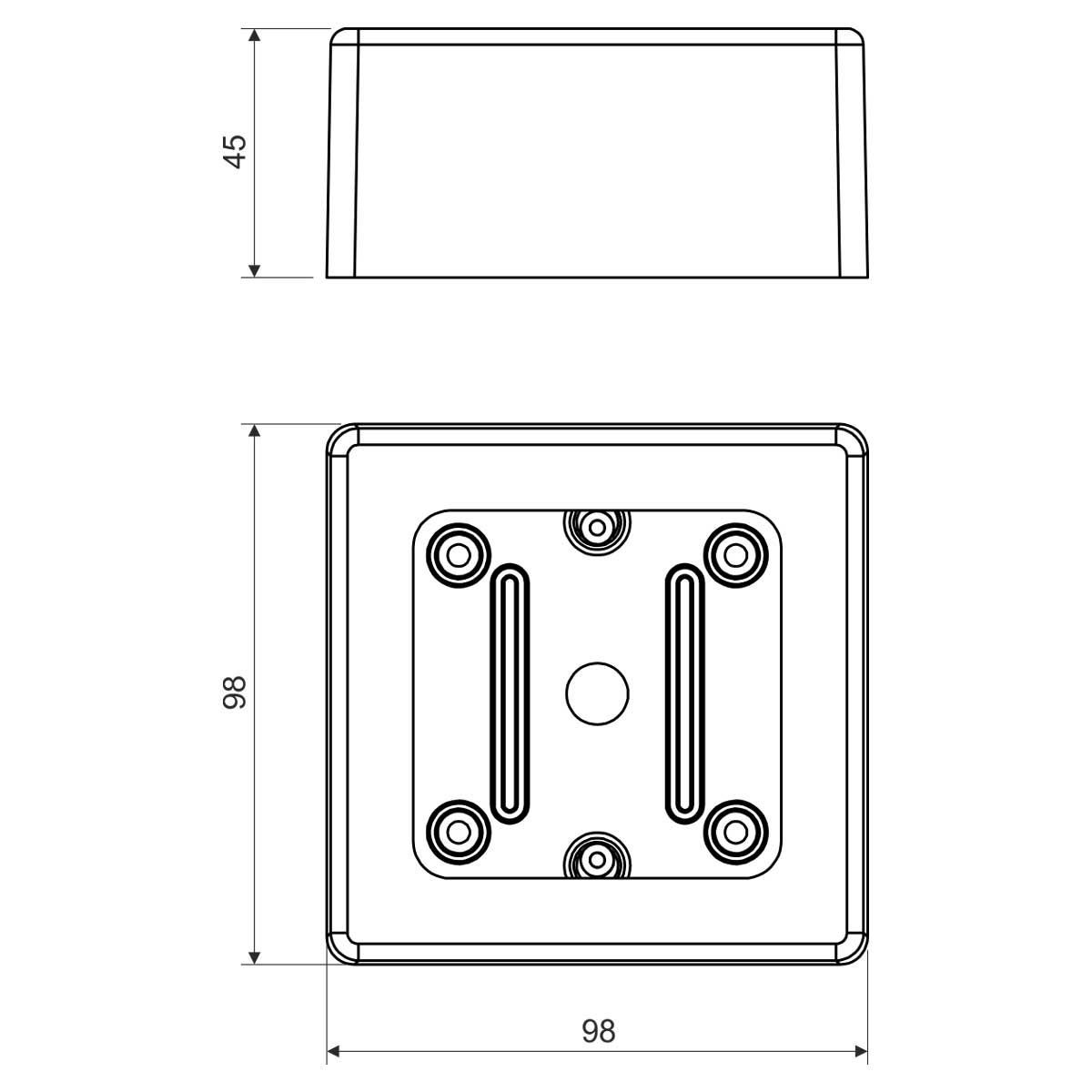

Width	98 mm
Height	98 mm
Depth	45 mm
Fire reaction class of underlying material	A1 - D
Standards	ČSN EN 60 670-1
Package description the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed

Universal box for most single devices available on the market. Trunking inlet holes are indicated on the side, for trunking with dimensions of up to 40 x 20 mm. The box consists of two parts, the top and bottom part. To install on materials with fire classes E or F, use insulating pad.
