EKE100X60_EN
| EAN code | 8595057620735 |
| Customs code | 39259020 |
| Weight | 1,1000 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Impact resistance | 2 J |
| Antibacterial | yes |

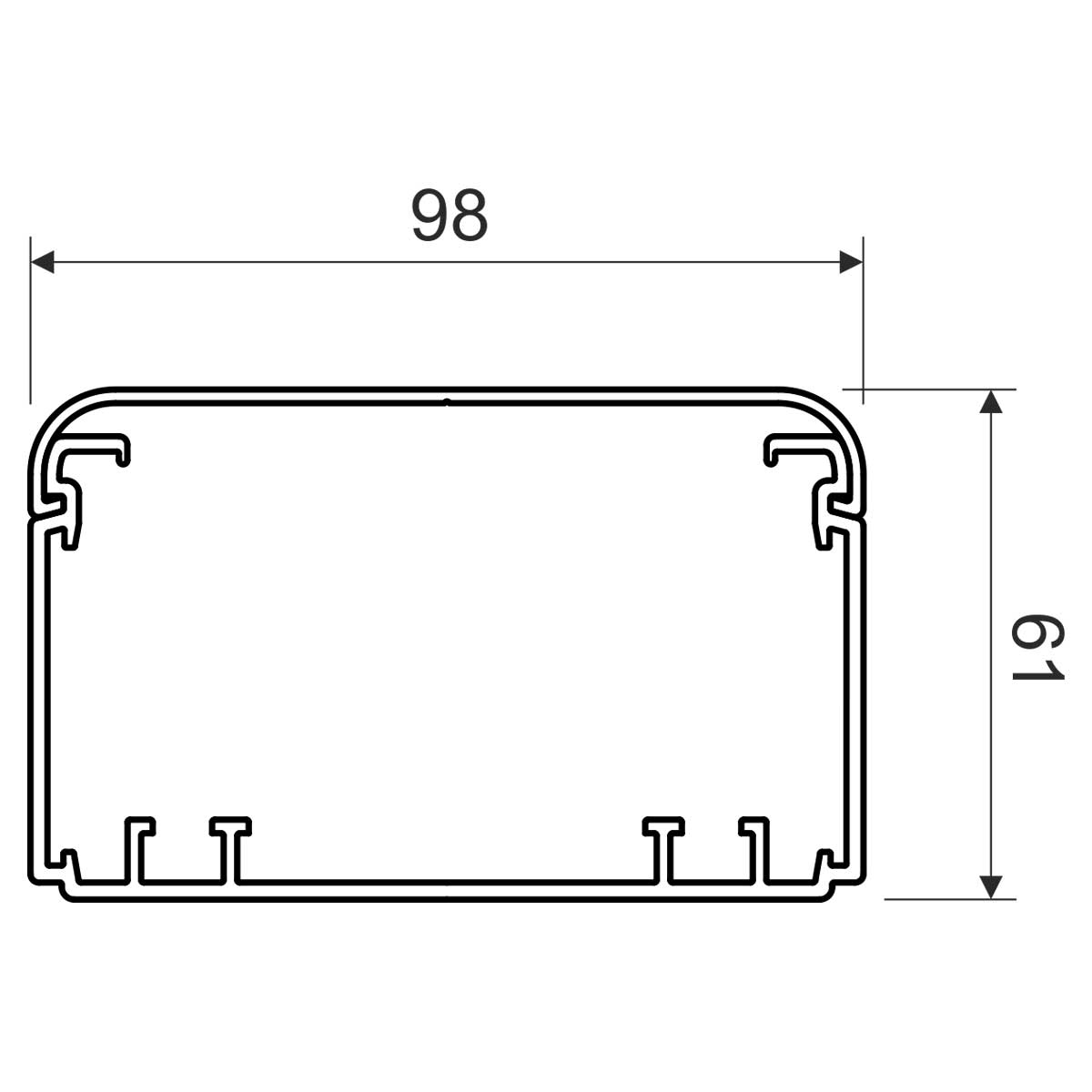

| Width | 98 mm |
| Height | 61 mm |
| Length | 2 m |
| Inside area | 4600 mm2 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Use They are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Manufactures´s recommendations The individual cables can be electromagnetically shielded by inserting a shield canal if necessary, to avoid interference. In the case of mounting the SK 40X33 (higher) shielding canal, it is not possible to use instruments with a larger installation depth, eg a surge arrester. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 20 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |
| With protective foil | yes |
It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert partition wall or shielding canal. Possibility to insert an instrument box and subsequently mount common types of instruments. Spacers are included in the package – always 1 pc per 1 m. Registered industrial design.
