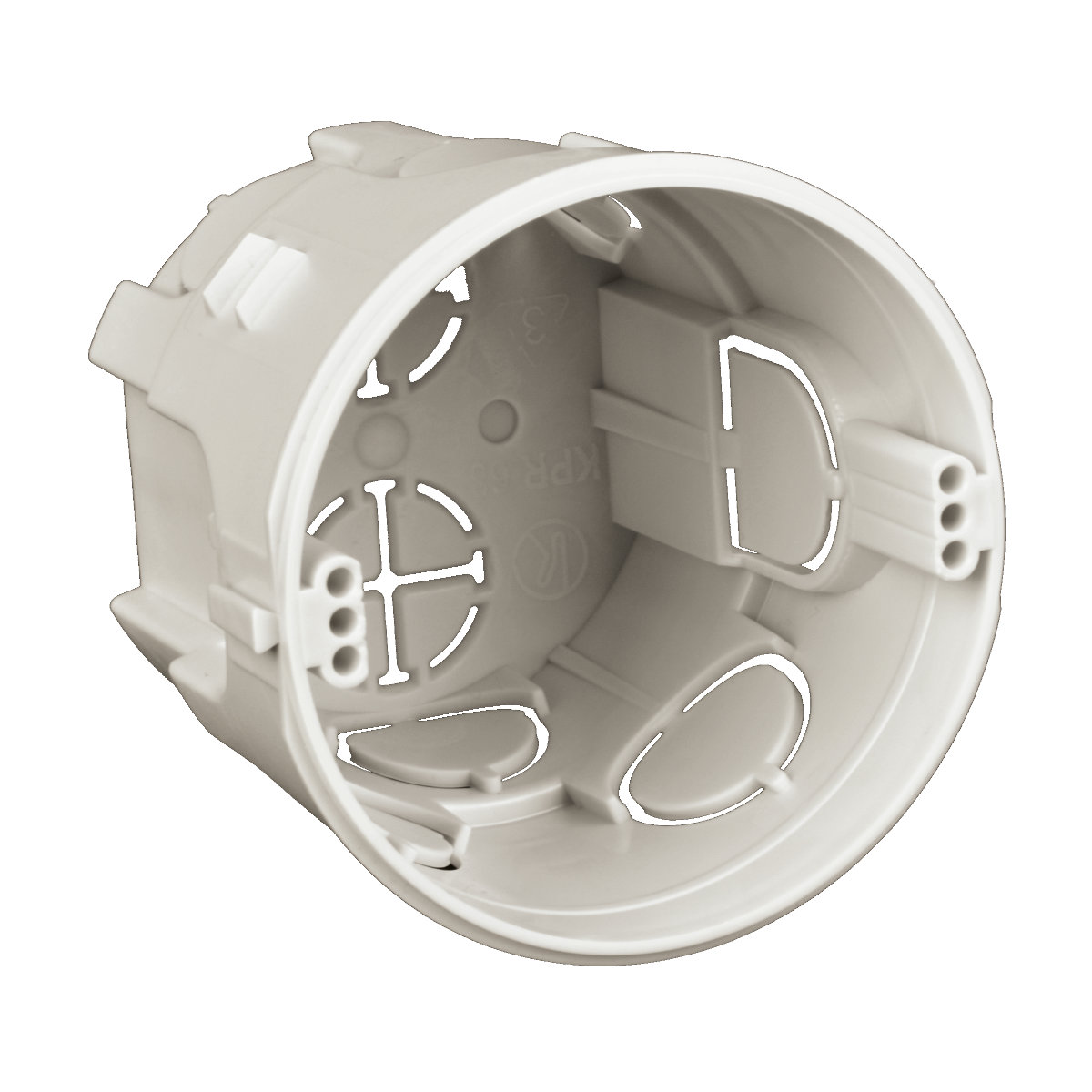

illustrative picture
To download 3D models, please login or create an account and request access.
KPR68_EN
| EAN code | 8595057648302 |
| Customs code | 39259080 |
| Weight | 0,0400 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |

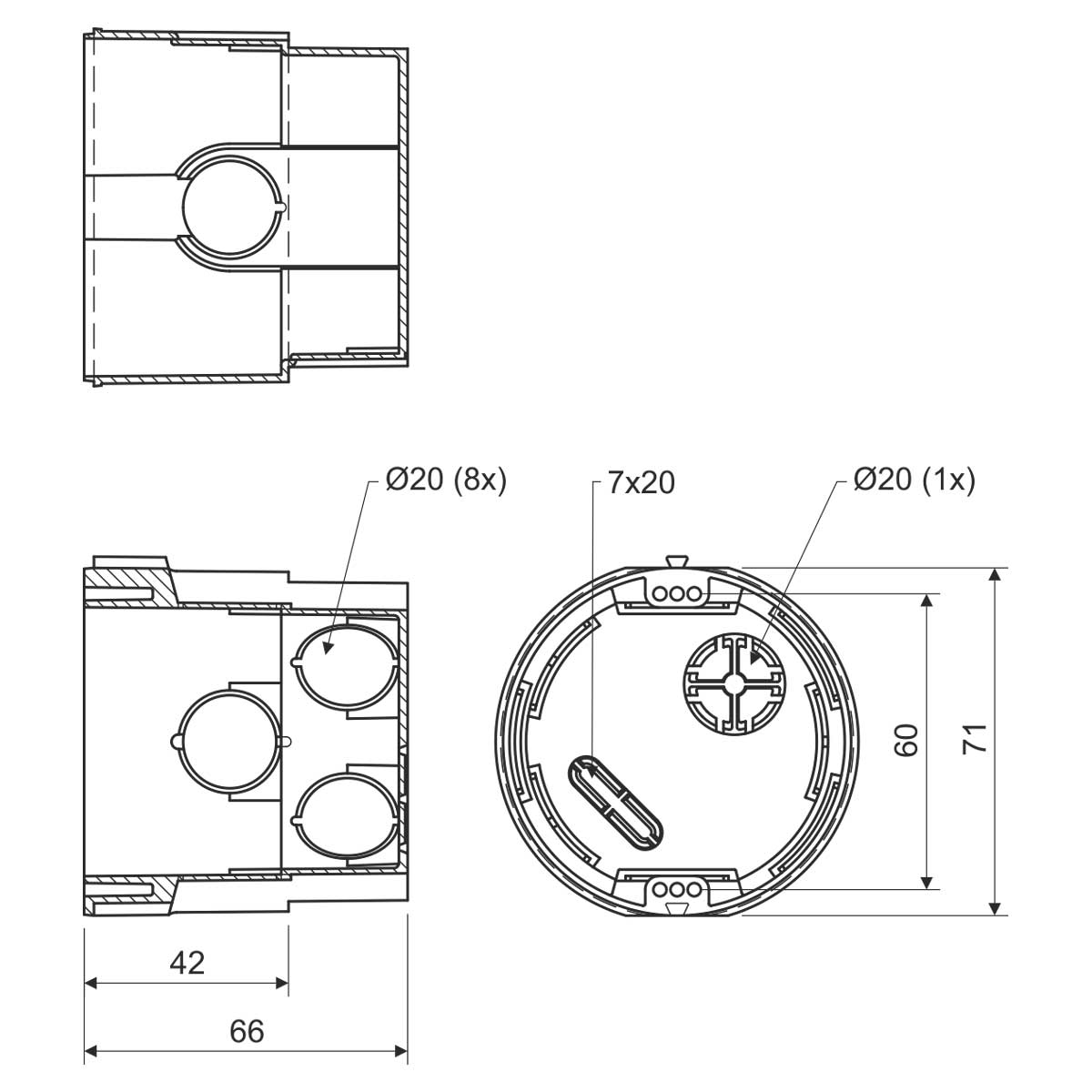

| Diameter | 73 mm |
| Depth | 66 mm |
| Milled (drilled) hole diameter | 80 mm |
| Fire reaction class of underlying material | A1 - D |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
| Standards | ČSN EN 60 670-1 |
| Package description packed 10 pcs in a shrink foil, package straighten in cardboard | |

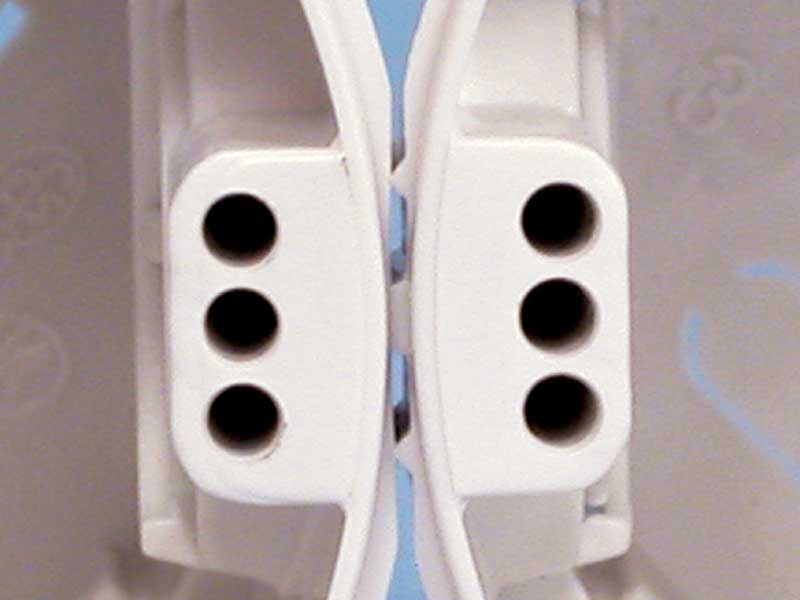

Easy installation of devices with big depth. Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Possibility to easily clamp under the device using screwless terminals. Boxes can be joined with boxes KU 68-1901, KP 68/2 and KP 68.
