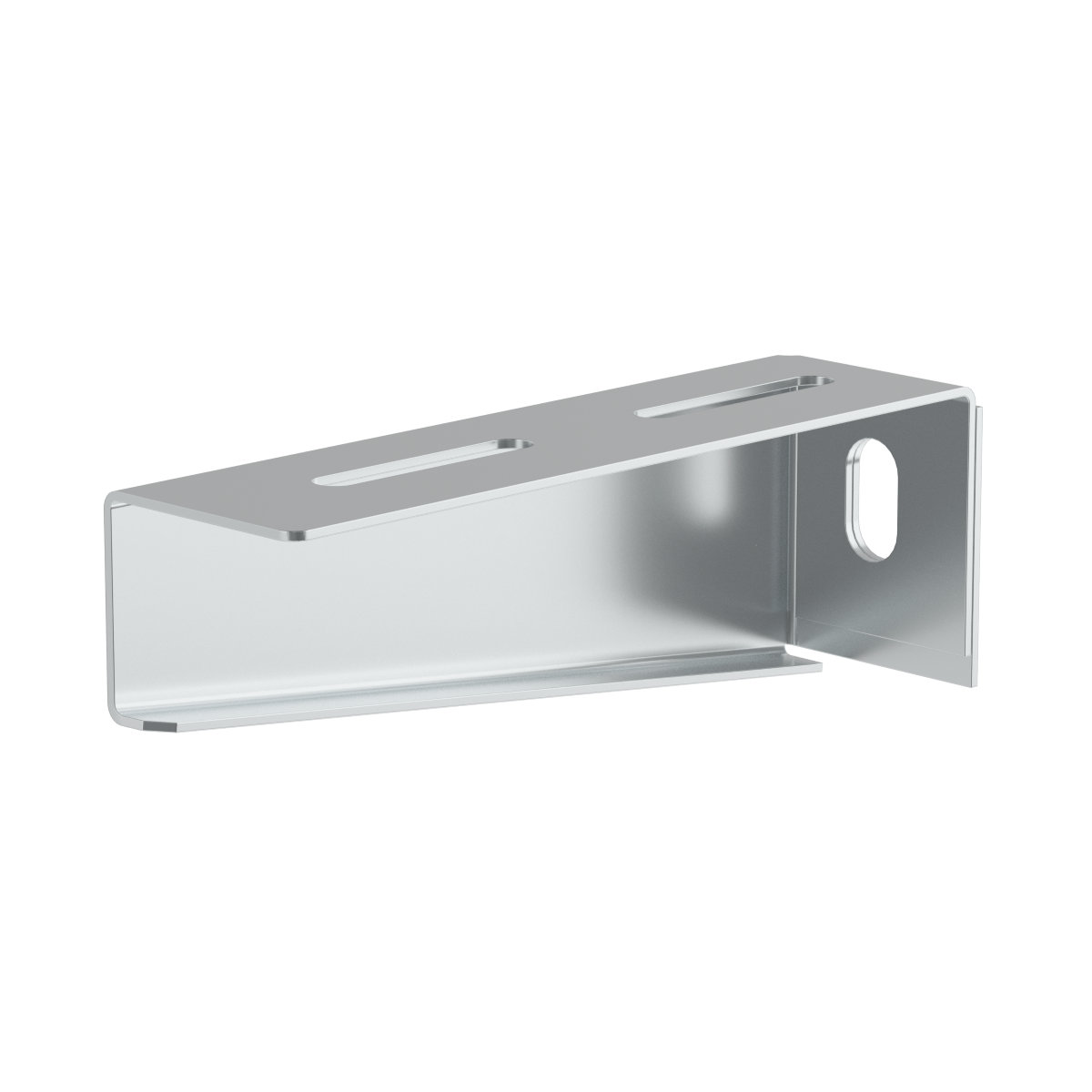

illustrative picture
INOXDS_EN
| EAN code | 8595568940728 |
| Customs code | 83024190 |
| Weight | 0,1452 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Standards | ČSN EN 61537 |
| Maximum load | 150 kg |
| Dimension A | 145 mm |
| Dimension B | 49 mm |
| For width of cable tray | 125 mm |
The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
