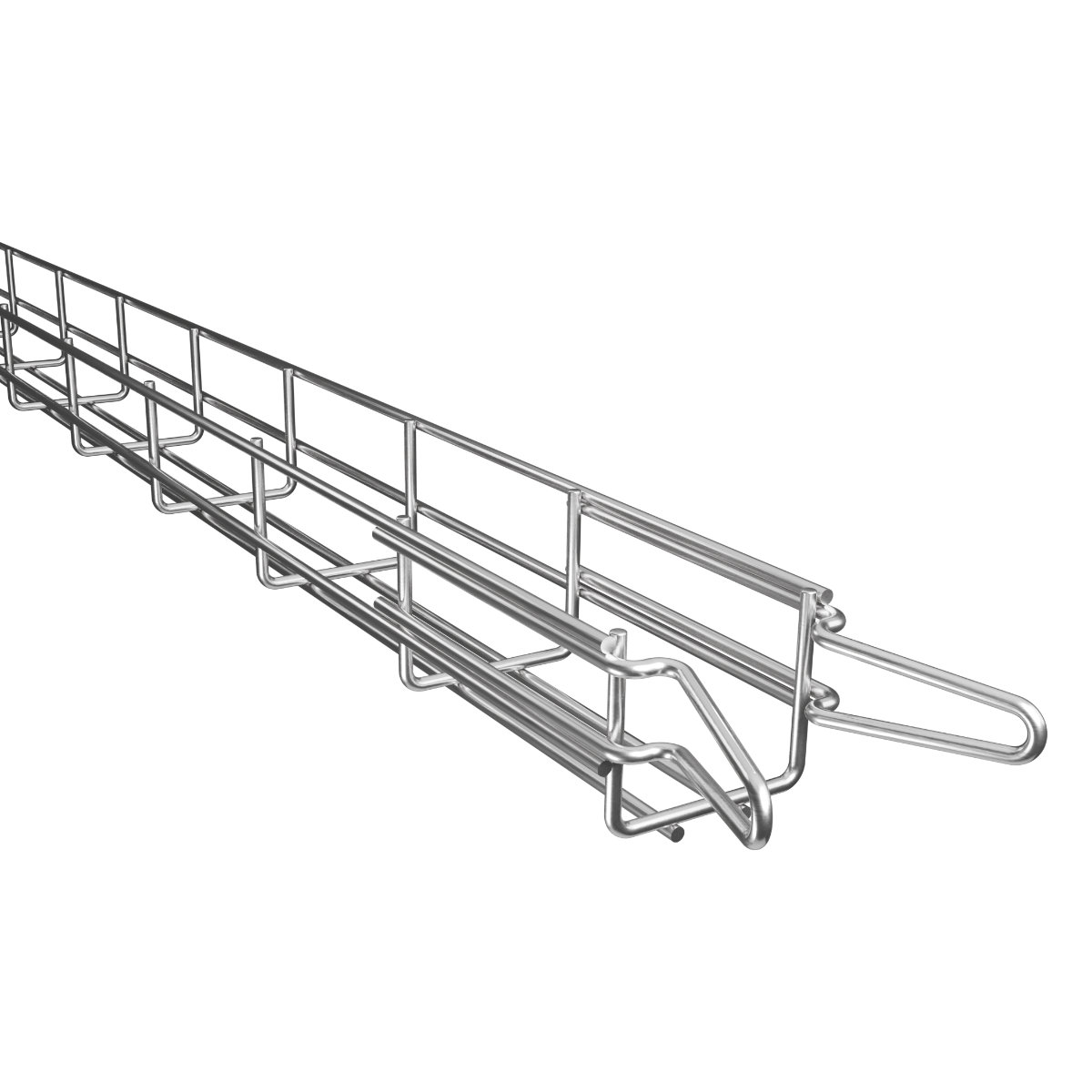

illustrative picture
DZI_V_EN
| EAN code | 8595568939852 |
| Customs code | 73262000 |
| Weight | 0,8200 kg/m |
| Surface finish | Hot Dip Galvanized |
| Width | 66 mm |
| Height | 51 mm |
| Length | 3000 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Wire diameter | 3,6 mm |
| Bottom grating | 20x100 |
| Max. load for fire resistance | 5 - 10 kg |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
