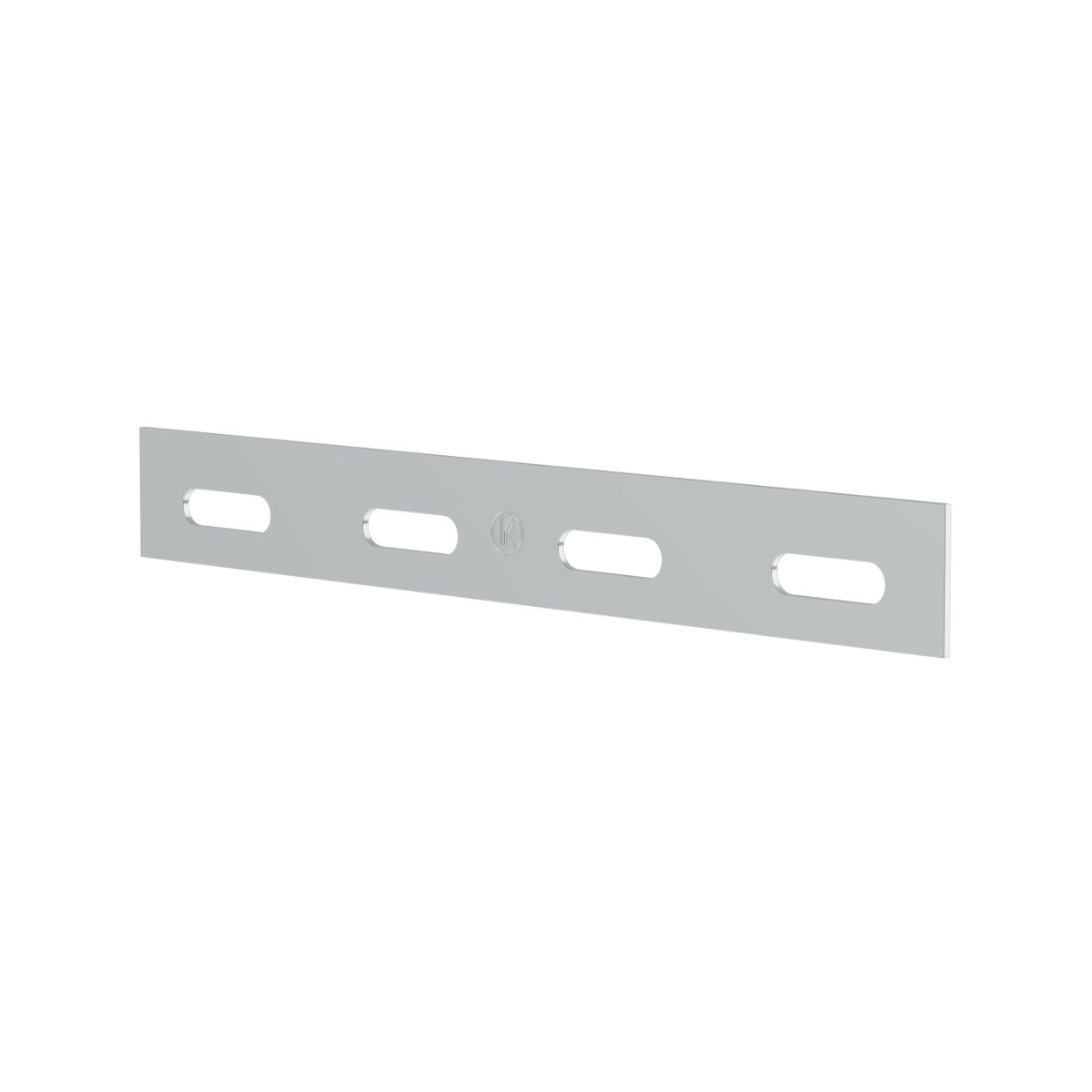

illustrative picture
To download 3D models, please login or create an account and request access.
S_EN
| EAN code | 8595568939340 |
| Customs code | 73269098 |
| Weight | 0,0398 kg/pcs |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 mm |
| Quantity of screws for connecting | 4 |

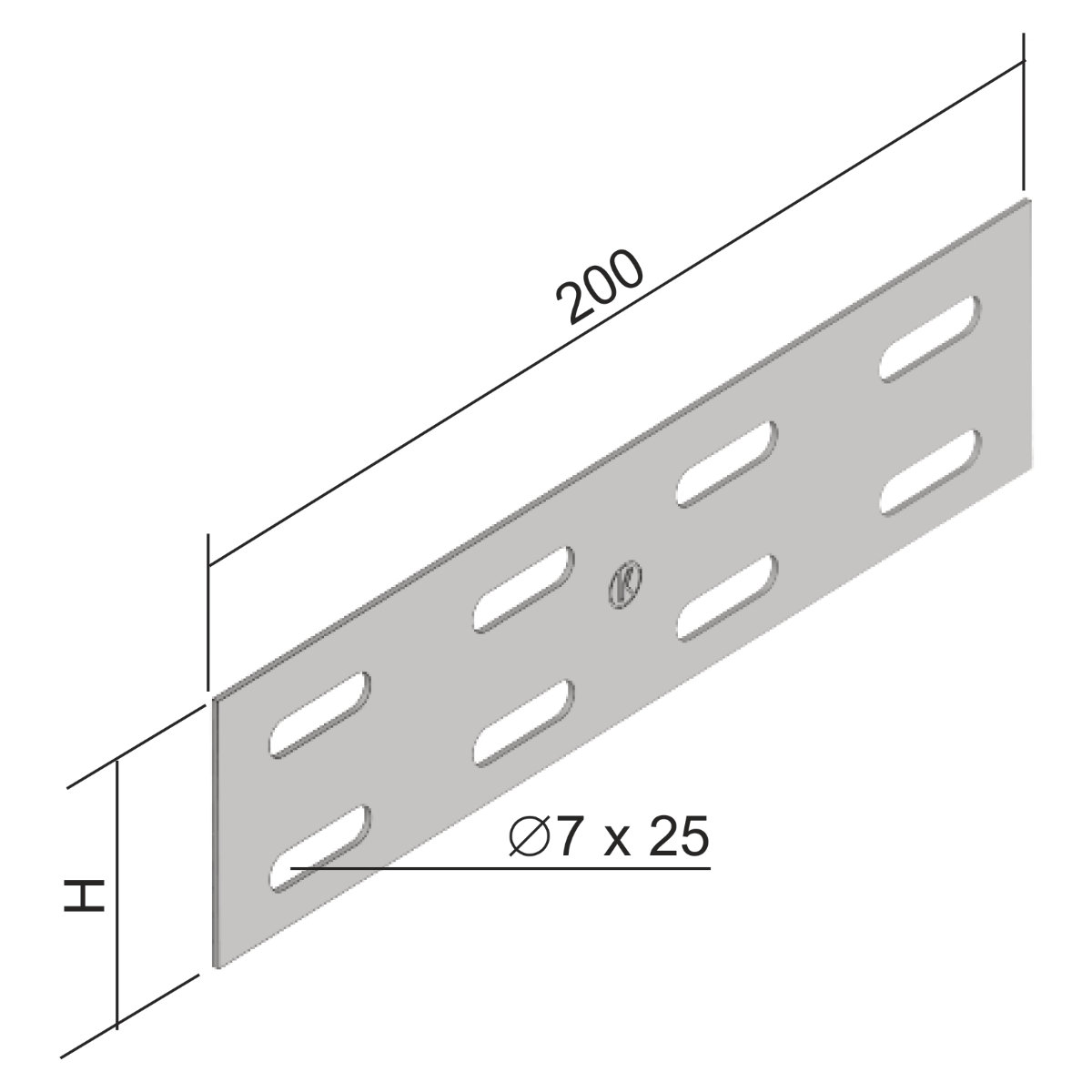

| Dimension H | 25 mm |
| For height of cable tray | 35 mm |
Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.
