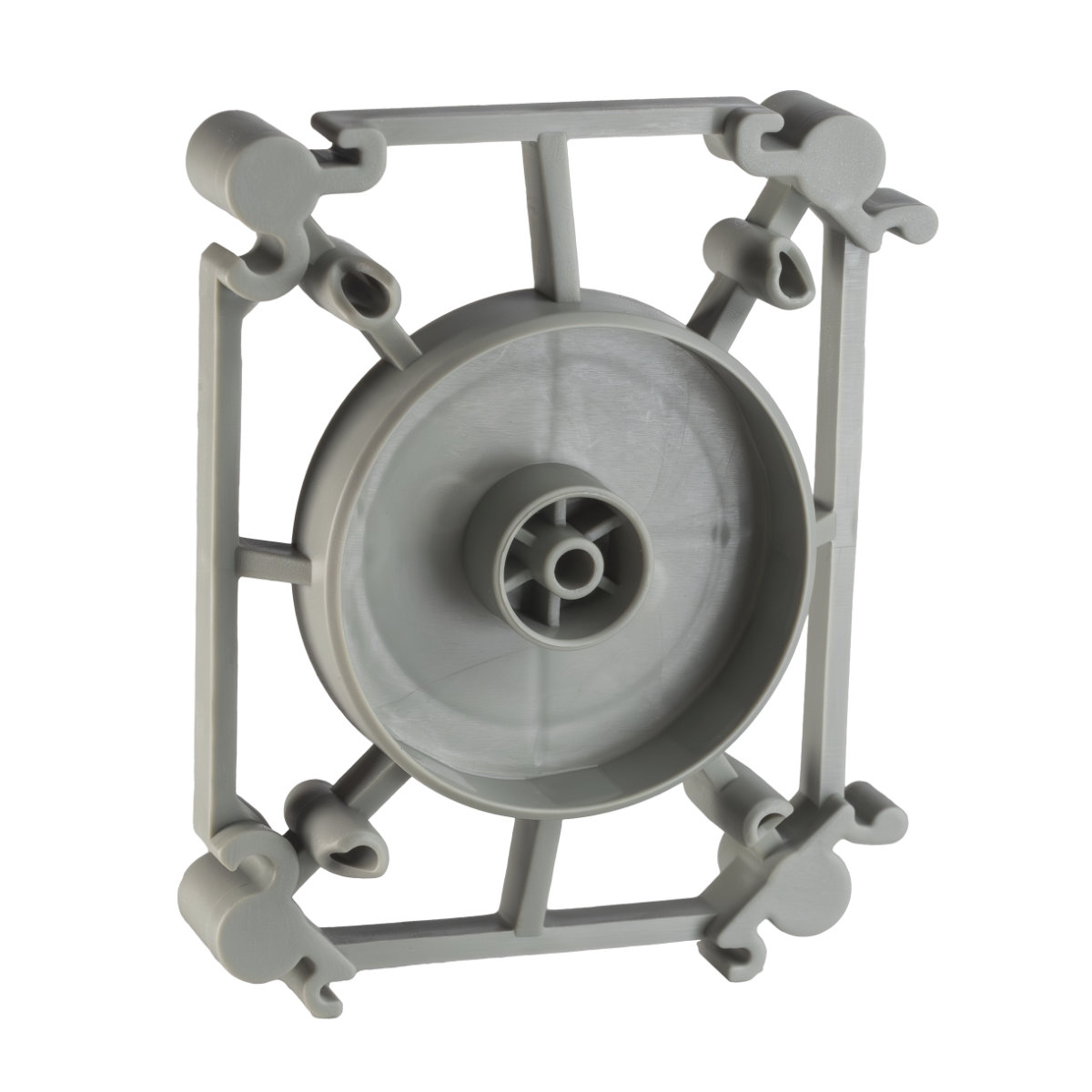

illustrative picture
To download 3D models, please login or create an account and request access.
SBP_1_EN
| EAN code | 8595568938718 |
| Customs code | 39259080 |
| Weight | 0,0161 kg/pcs |
| Colour | gray |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Temperature resistance | -25 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |
| Width | 71 mm |
| Height | 90 mm |
| Fire reaction class of underlying material | A1 |
| Spacing when joining 2 boxes | 71/90 mm |
| Package description | 5pcs packed in plastic bag |
Support for cast concrete for splitting the box between opposing formwork. Support adapted for the insertion of the SB-M1 holding magnet for fixing the boxes or supports to the metal formwork. The possibility of fixing with nails or screws to wooden formwork. The possibility of connection with a pitch of 71 mm or 90 mm. It allows the opposite box to be fixed using steel rods 6 mm KBP-8 (not included in the package).
