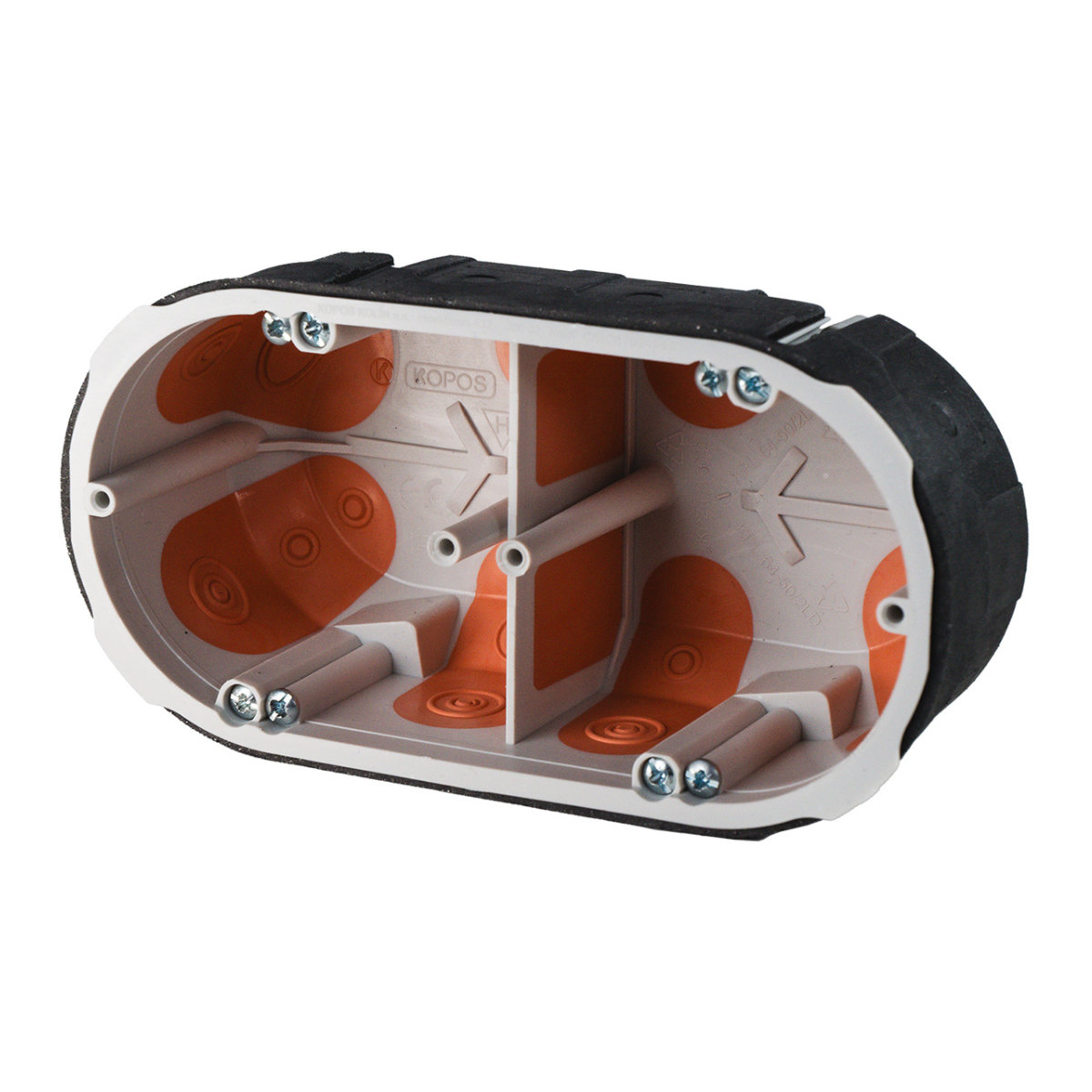

illustrative picture
To download 3D models, please login or create an account and request access.
KPZ68-502_PO_EN
| EAN code | 8595568937629 |
| Customs code | 39259080 |
| Weight | 0,1006 kg/pcs |
| Colour | black + gray + orange |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Soundproofing | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Assembly | horizontal and vertical mounting |
| Width | 144 mm |
| Height | 75 mm |
| Depth | 53 mm |
| Milled (drilled) hole diameter | 73 mm |
| Manufactures´s recommendations For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 30 |
| Standards ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10 | |
| Fire resistance standards | EI 15 - EI 90 |
| Package description the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box | |
In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
