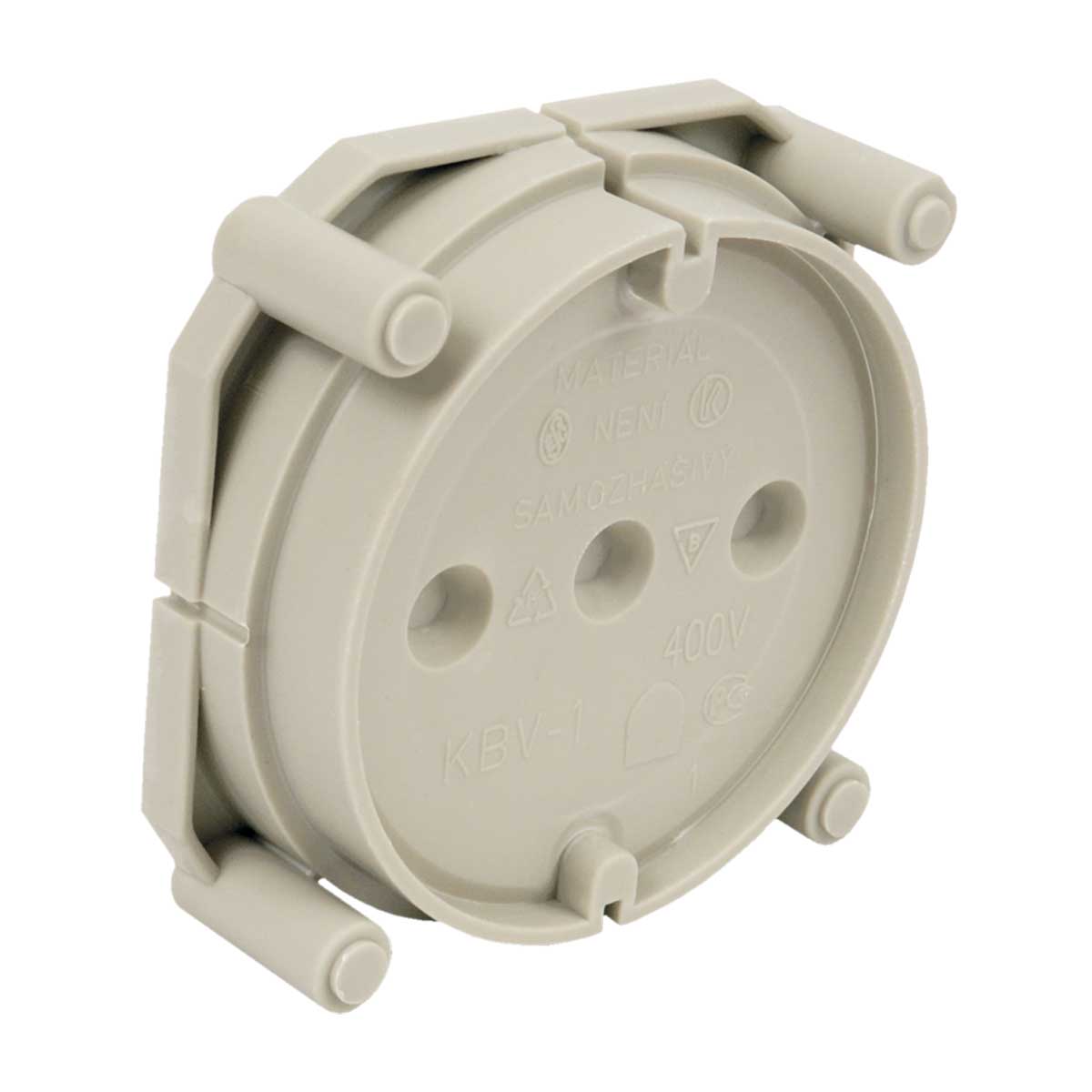

cover of the box into concrete

Attachments and certifications

illustrative picture

Základní použití na rozteč 80 nebo 88 mm

Příklad použití lustrháku na horizontální bednění

Fullsize model

To download 3D models, please login or create an account and request access.

Data sheet
KBV1_EN

Certificate
Declaration RoHS
Declaration REACH
Conformity declaration

EAN code	8595057632509
Customs code	39259080
Weight	0,0323 kg/pcs
Colour	light grey
Material	PP
Halogen free material	yes
Leadless material	yes
Rated voltage	<= 400 V
Temperature resistance	-5 - 60 °C
Short term temperature resistance	90 °C
Flaming loop test	650 °C

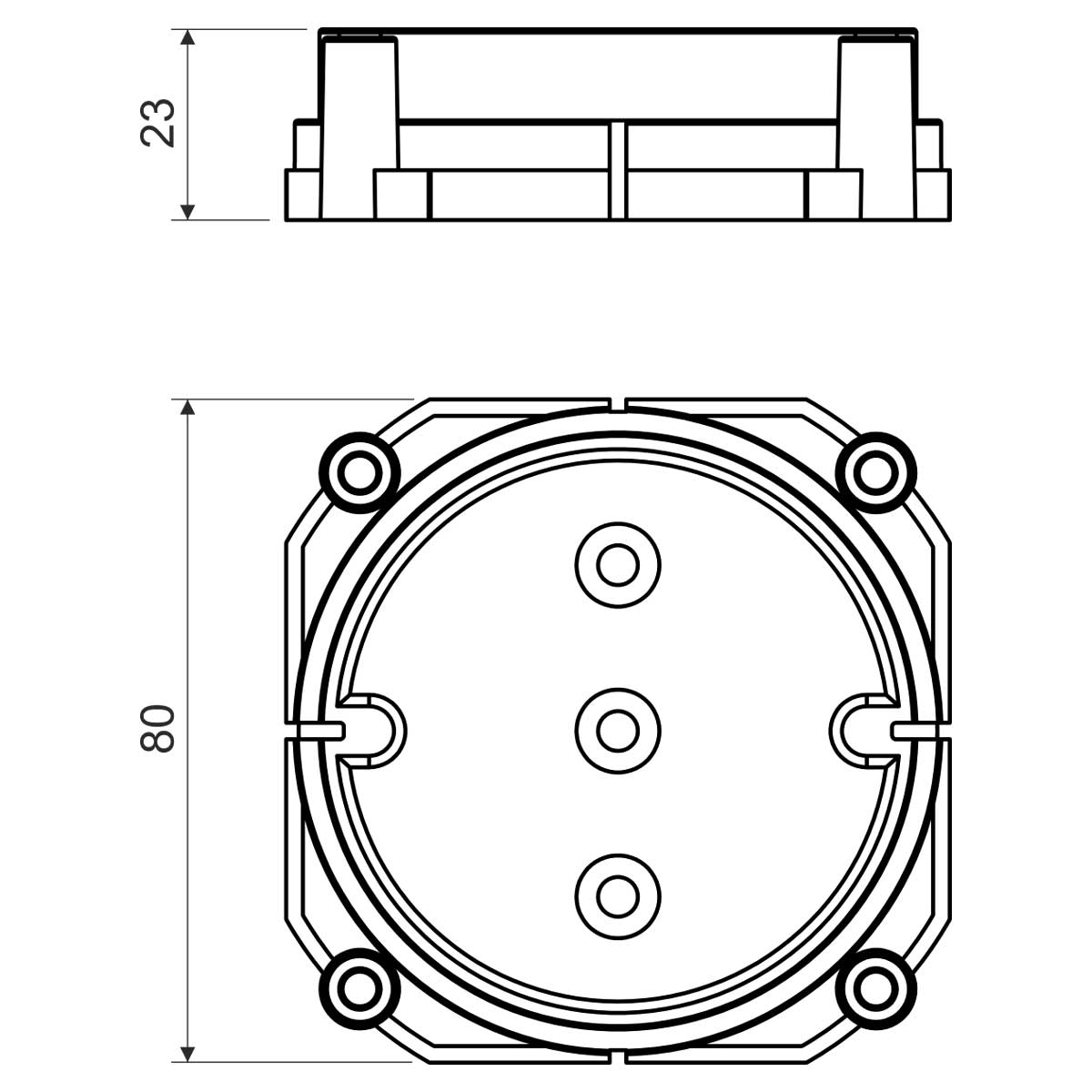

Width	80 mm
Height	80 mm
Depth	23 mm
Fire reaction class of underlying material	A1
Allows to install double-socket	yes
Standards	ČSN EN 60 670-1
Package description	packed in shrink foil

The lid can be attached to the formwork using nails. After hardening of the concrete, remove part of the rip-out part of the lid, making space for mounting. When applying additional stucco, blind cover ZV 68 can be used to cover it. To adjust the height when applying additional plaster, you can use extending frame NR 68/6, NR 68/100 (KBV-1), or NRB 60/12 and NRB 60/24 (KBV-2). For the double-socket the KBV-1 lid is suitable.
