illustrative picture
To download 3D models, please login or create an account and request access.
KO97_5_EN
| EAN code | 8595057600164 |
| Customs code | 39259080 |
| Weight | 0,0905 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |

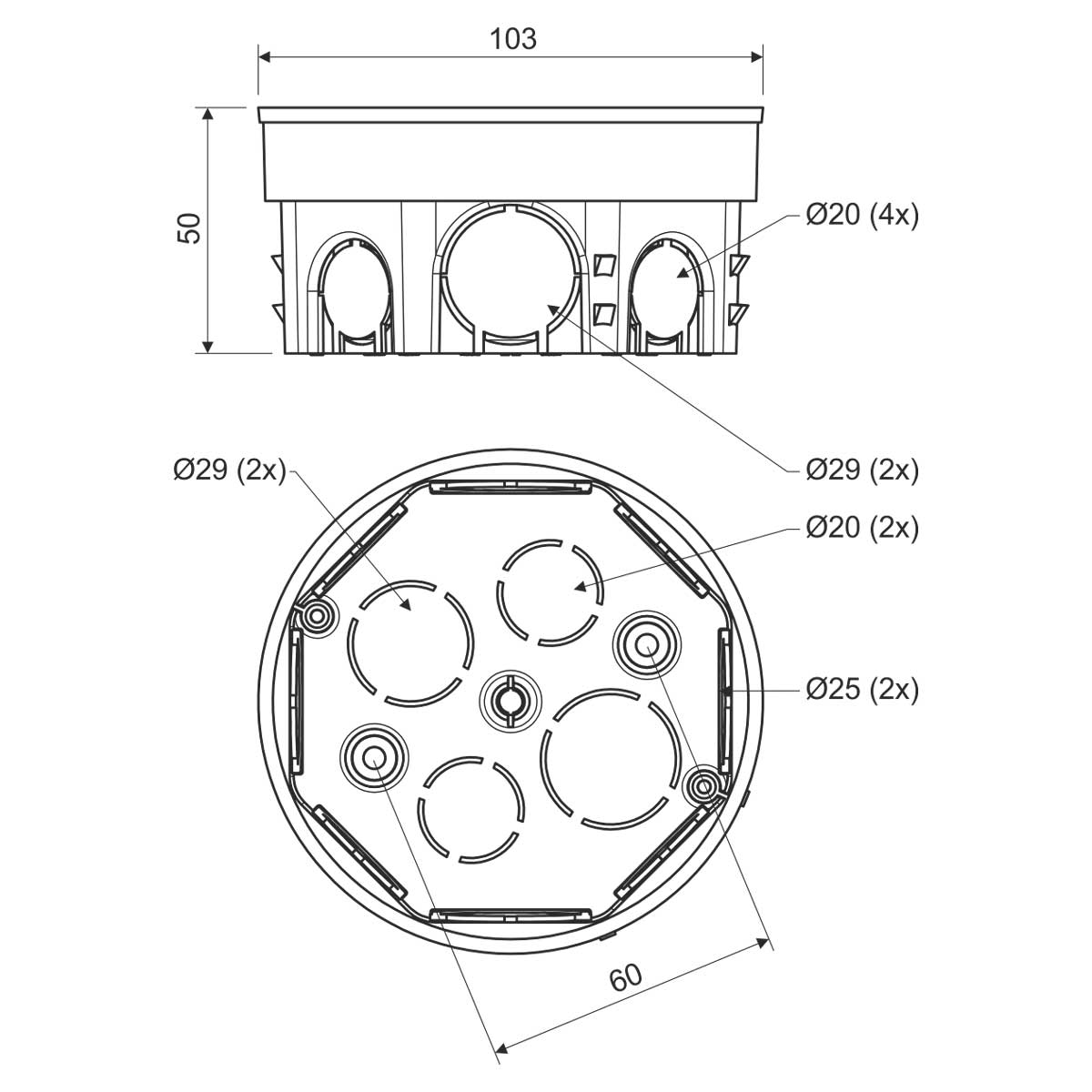

| Diameter | 103 mm |
| Depth | 50 mm |
| Fire reaction class of underlying material | A1 - D |
| Standards | ČSN EN 60 670-1 |
| Package description boxes with lids included separately in the cardboard | |
large number of knockouts to make larger installations. Projections against ripping the box out of the wall. Sufficient space for terminal plate and circuit connection.
