illustrative picture

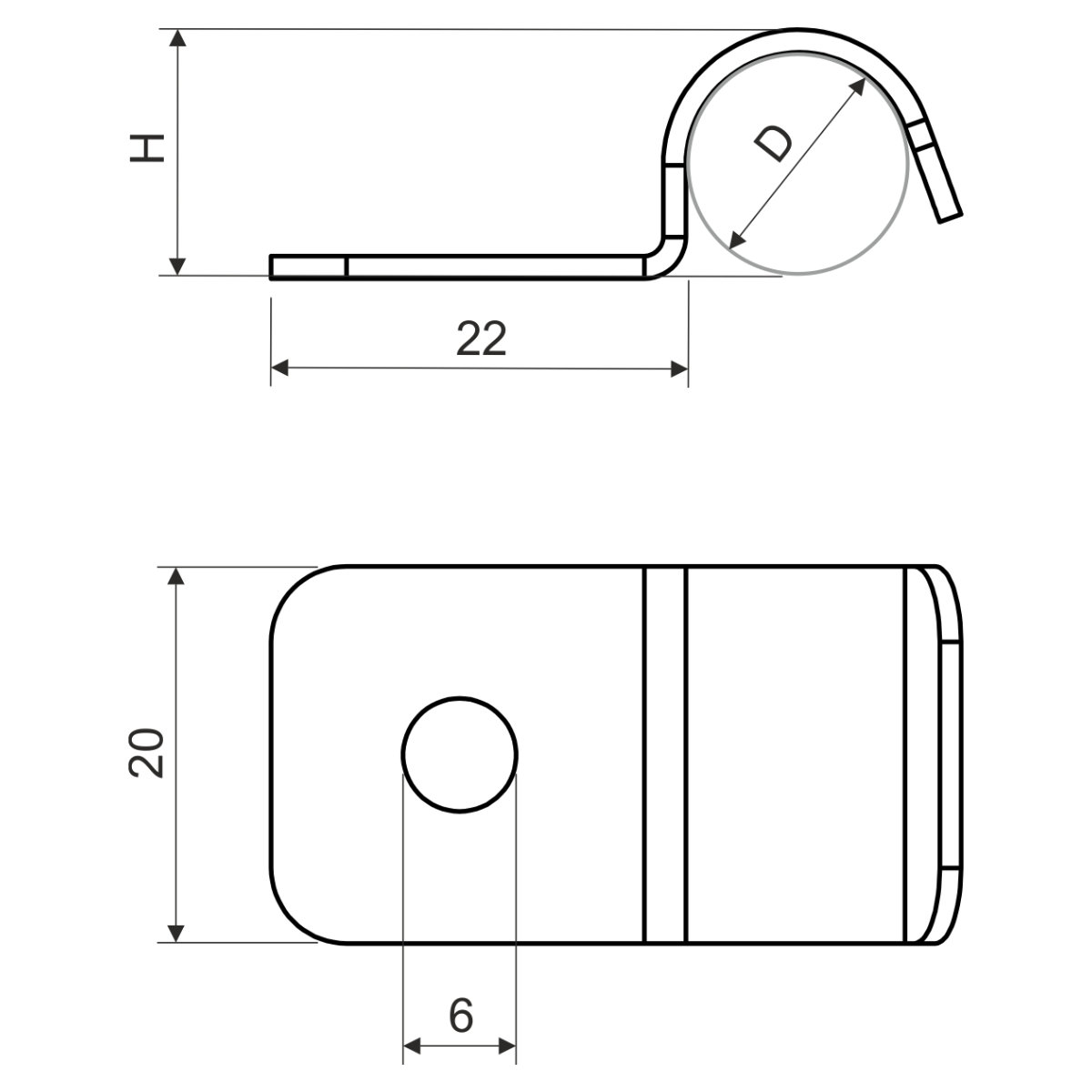

prichyt_kabel_67xx_PO_EN
| EAN code | 8595568932495 |
| Customs code | 73269098 |
| Weight | 0,0075 kg/pcs |
| Material | steel |
| Surface finish | Non electrolytic plating Geomet |
| Width | 20 mm |
| Height | 7,2 mm |
| Diameter of the mounting hole | 6 mm |
| Diameter conductors | 4 mm |
| Use | single-sided clamps |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Max. load for fire resistance is determined by the weight of the inserted cables | |
Clamps are fixed to the base material using SB 6.3X35 concrete bolts. To the aerated concrete using KHP + SB 6.3X45 dowels, into the sheet metal using the STP 4.2X13 screw. Two 6706 - 6720 clamps may be placed under one screw and in this way a line for two cables is created.
Note for system with maintained functionality in fire:
To fix the connection use the concrete screw SB 6.3x35.
You find more information in the catalogue Systems with maintained functionality in fire.
